3.3. Technical Data
Natural Gas Models
Solitaire 16”
6.9kW
Solitaire 16”
8.8kW
Solitaire 18”
10.0kW
Nominal maximum heat input 6.9 kW (gross) 8.8 kW (gross) 10.0 kW (gross)
Setting pressure (Cold) 7.0 mbar ±0.2
mbar
7.5 mbar ±0.2
mbar
9.7 mbar ±0.2
mbar
Minimum heat Input 4.0 kW (gross) 4.0 kW (gross) 4.0 kW (gross)
Minimum setting pressure 2.4 mbar ±0.2
mbar
1.8 mbar ±0.2
mbar
1.8 mbar ±0.2
mbar
Gas G20
(Natural Gas)
G20
(Natural Gas)
G20
(Natural Gas)
Injector Size 750 950 950
Gas inlet connection 8mm 8mm 8mm
Control valve BM/Mertik GV34 BM/Mertik GV34 BM/Mertik GV34
Pilot SIT OxyPilot
9039
SIT OxyPilot
9039
SIT OxyPilot
9039
LPG Gas Models
Solitaire 16”
6.9kW
Solitaire 16”
7.8kW
Solitaire 18”
9.0kW
Nominal maximum heat input 6.9 kW (gross) 7.8 kW (gross) 9.0 kW (gross)
Setting pressure (Cold) 28.0 mbar ±1.0
mbar
34.5 mbar ±1.0
mbar
34.5 mbar ±1.0
mbar
Minimum heat Input 4.0 kW (gross) 4.0 kW (gross) 4.0 kW (gross)
Minimum setting pressure 10.0 mbar ±0.5
mbar
10.0 mbar ±0.5
mbar
7.0 mbar ±0.5
mbar
Gas G31 (LPG) G31 (LPG) G31 (LPG)
Injector Size 220 220 260
Gas inlet connection 8mm 8mm 8mm
Control valve BM/Mertik GV34 BM/Mertik GV34 BM/Mertik GV34
Pilot SIT OxyPilot
9223
SIT OxyPilot
9223
SIT OxyPilot
9223
3.4. Pressure Test Point Location
PRESSURE TEST
POINT

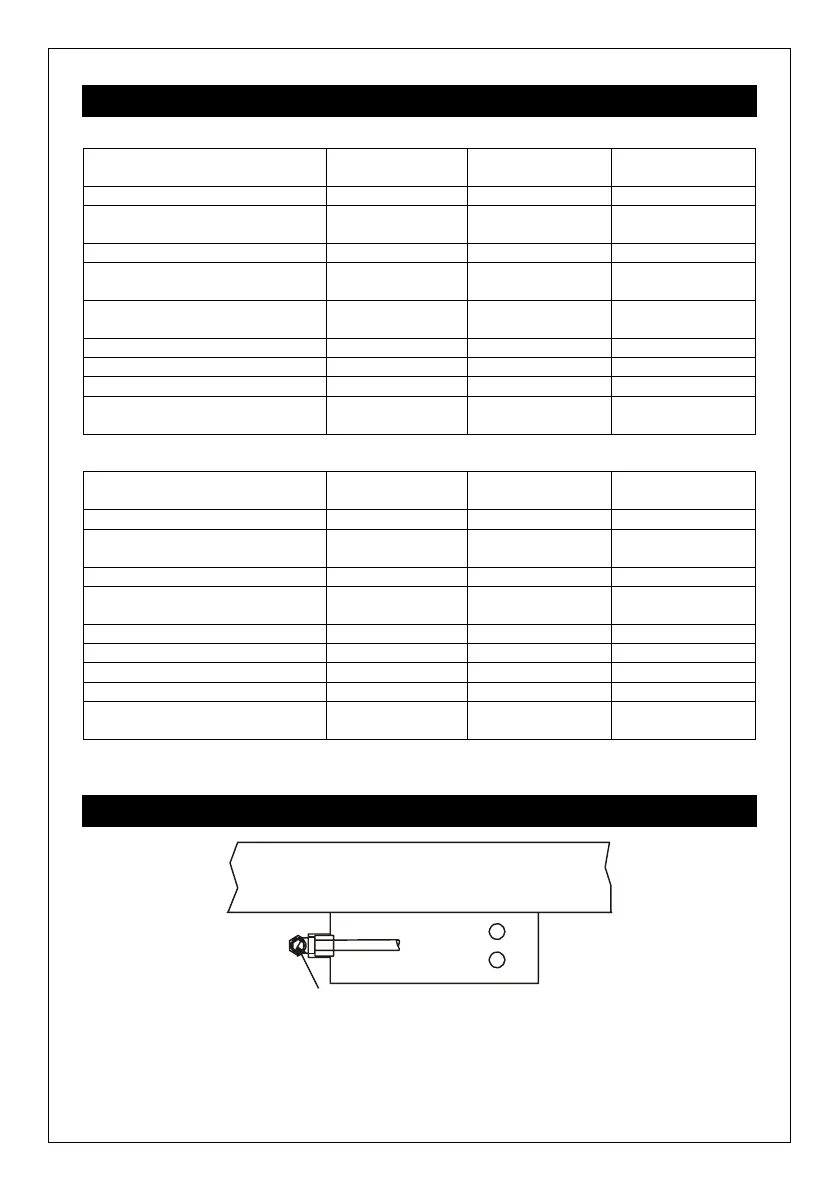

Figure 31 – Solitaire Pressure Test Point
