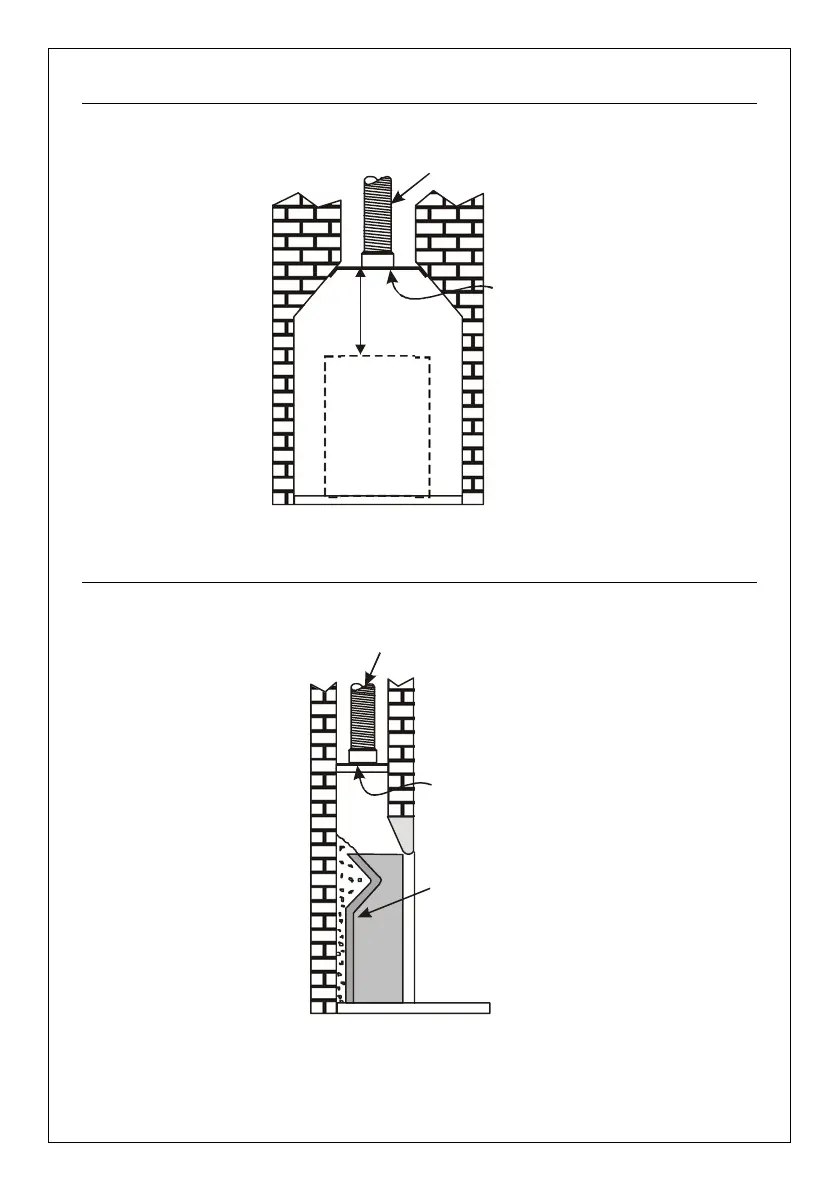

3.2.4. Installation Example Using Existing Builders Opening
(16” Solitaire 6.9kW Models Only)
REGISTER
PLATE
125mm (5”)
FLEXIBLE LINER
SECTION THROUGH
MASONRY CHIMNEY
90mm
min
Figure 29
3.2.5. Installation Example Using Existing Milner (Clay) Fireback
(16” Solitaire 6.9kW Models Only)
125mm (5”)
FLEXIBLE LINER
REGISTER
PLATE
MILNER
FIREBACK
Figure 30
