Magiglo Solitaire - Thermobox Installation Procedures

Page 26

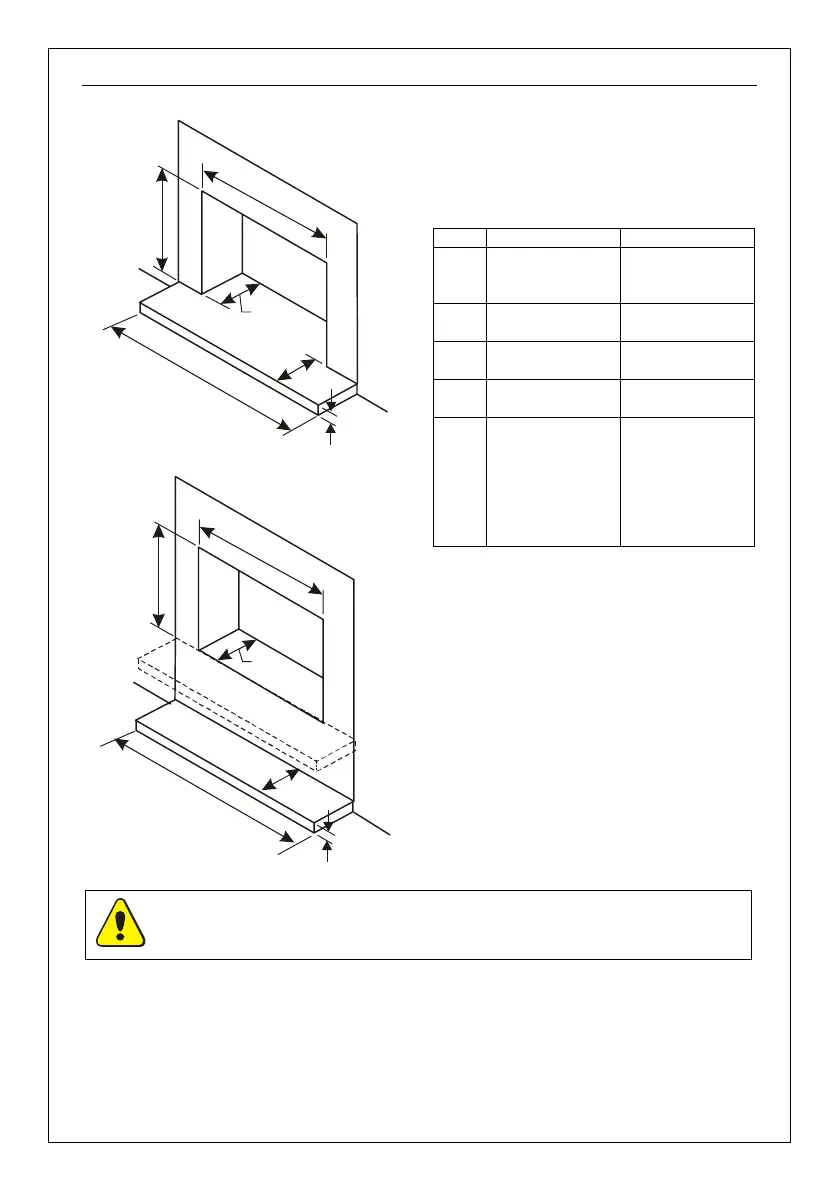

3.5.1. Floor Level and Raised Fireplace Openings
O
W
O
H
OD
H
W
H
D
50mm
Figure 32
O
W
O
H
OD
H
W
H
D
50mm
Figure 33
16” Models 18” Models
OH For use in
calculating flue
diameter
For use in
calculating flue
diameter
OW A minimum of
400mm
A minimum of
450mm
OD A minimum of
200mm
A minimum of
200mm
HW A minimum of
700mm
A minimum of
750mm
HD Must project a
minimum of
300mm in front
of any naked
flame or
incandescent
material
Must project a
minimum of
300mm in front
of any naked
flame or
incandescent
material
Table 1
Hearth Construction: The hearth material must be non-combustible and a
minimum of 12mm thick, when laid on the floor. Either a 50mm upstand above
the finished floor level must be created or a fixed fender must be used.
