4.2. LED indicator

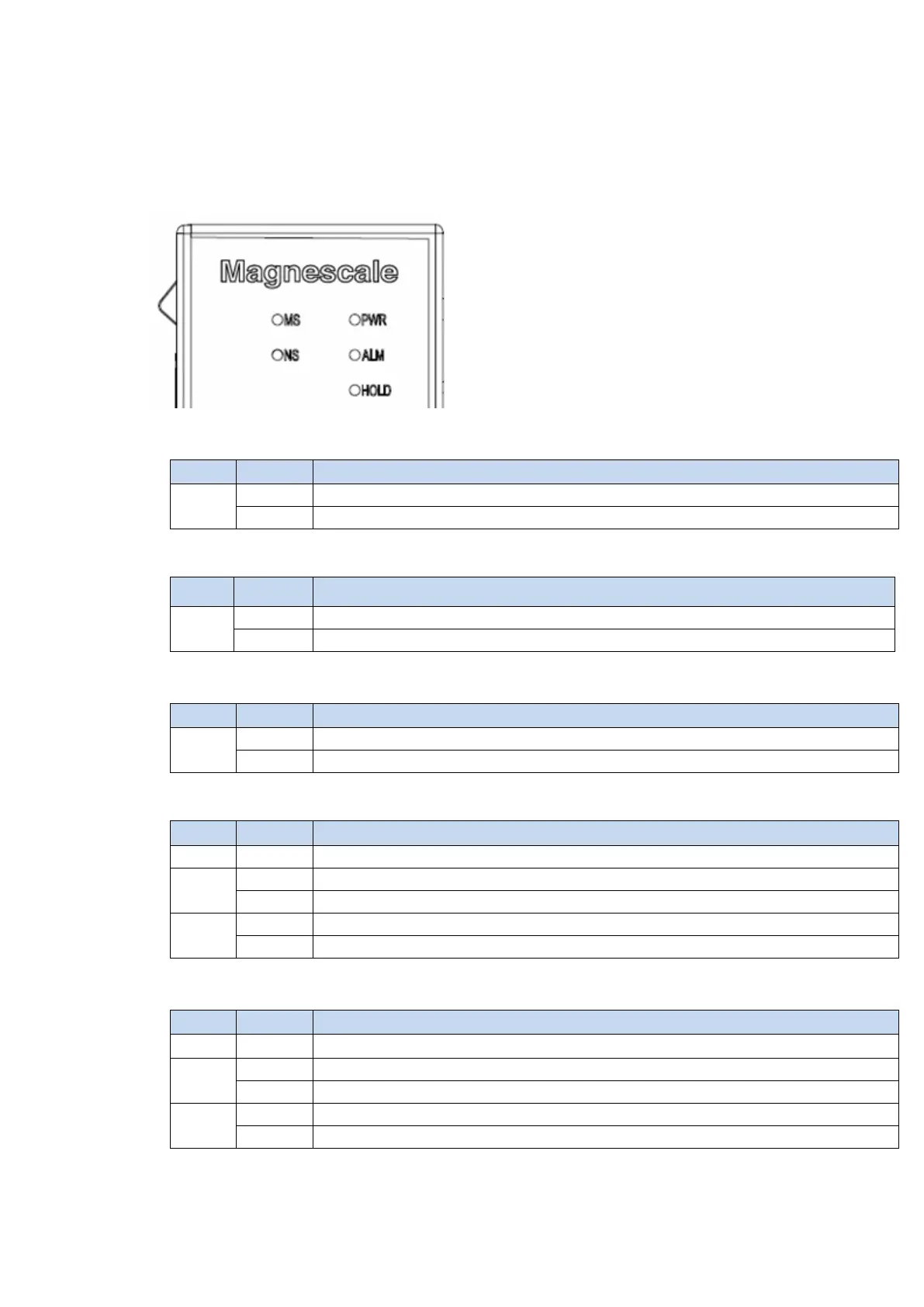

The function of LED display is described below.
[PWR] Power LED ：Displays the operation status of this module
Color
Status
Contents
Green
Off
Power off
On
Ready for operation after power on
[ALM] Alarm LED ：Displays the alarm status of all modules.
Color
Status
Contents
Red
Off
Normal operation
On
Lights when an alarm occurs on any module.
[HOLD] Hold LED :Displays Hold status
Color
Status
Contents
Orange
Off
All count data is released from hold.
On
Any count data is in hold status.
[MS] Module status LED ：Displays the module status according to the EtherNet/IP standard.
Color
Status
Contents
－
Off
Power off or no IP address
Green
On
RUN status
Flashing
IDLE status
Red
On
Error status
Flashing
Recoverable failure is occurred.
[NS] Network status LED ：Displays the network status according to the EtherNet/IP standard.
Color
Status
Contents
－
Off
Power off or no IP address
Green
On
Connection established
Flashing
Connection not established
Red
On
The IP address is duplicated. Fatal error occurred.
Flashing
Connection timed out
