5.3. Detail of function
5.3.1. Peak hold
Stores maximum, minimum, peak to peak(maximum-mininum) values of the
frame.
Example of output in each mode are shown below.

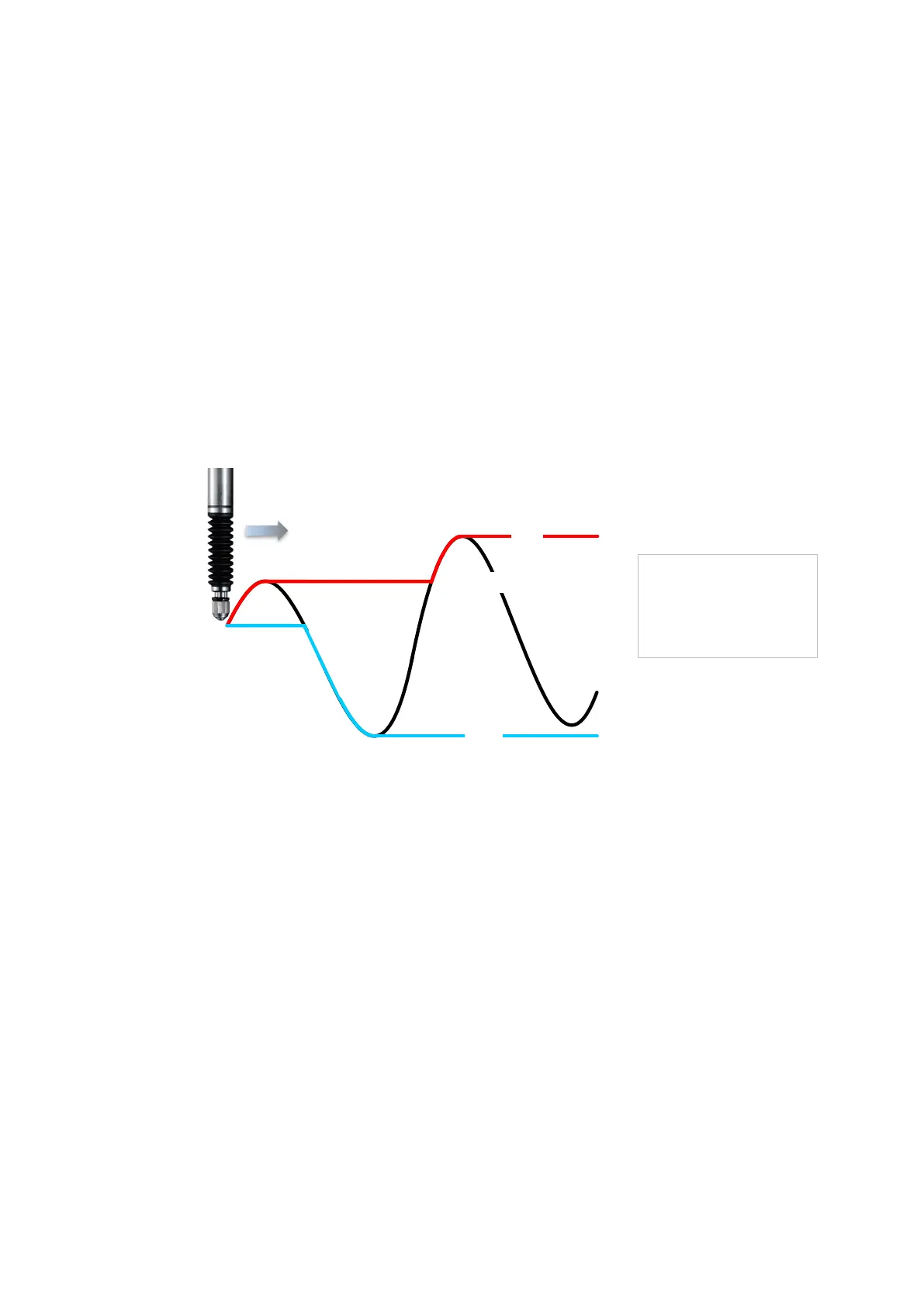

Black line indicates the measurement (current) value, red line indicates the
maximum value, blue line indicates the minimum value. When the measuring unit
moves from left to right, each of the peak value are updated and output as a
frame data.
現在値
最小値
最大値
Examples of output with Peak hold
Peak values are updated to satisfy the following formula, and stored in the RAM
Minimum value ≦ Current value ≦ Maximum value
Peak to peak value＝Maximum value－Minimum value
Max
Min
Current
0mm
3mm
-10mm
8mm
Output
Max → 8mm
Min → -10mm
P-P → 18mm
