5.3.7. Comparator
Up to 8 sets of comparetor settings are available for each frame.
Each comparator has option of 2 modes (2 or 4 steps of threshold).
Output will be the “area” number. Examples are shown below.

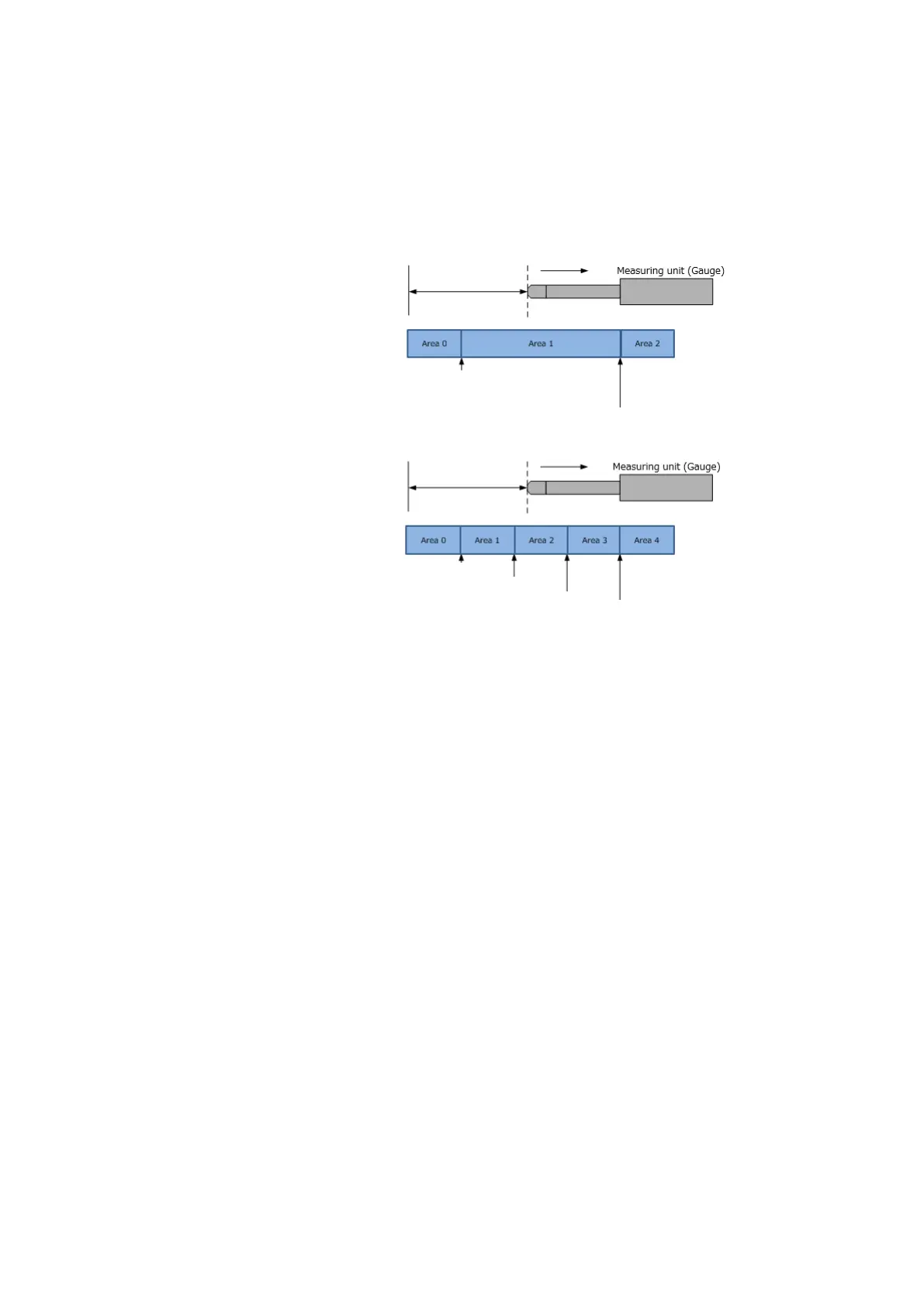

Example of comparator judgment
5.3.8. Addition/Subtraction
This function will allow calculation (Addition/Subtraction) of the two different
measuring units and output result in a frame. The calculation result will be current
(Real) value. All 16 frames are available with this function. The calculation formula
is shown below.
Axis calculation result (current value)
＝ ＜Sign1＞Measurement value of measuring unit Ⓐ
＋ ＜Sign2＞Measurement value of measuring unit Ⓑ
（Example）
Measurement value of measuring unit Ⓐ = 10[μｍ]
Measurement value of measuring unit Ⓑ = 5[μｍ]
Calculation setting：Sign1 = ＋, Sign2 = －
Result after calculation(Current value) ＝ (＋10) ＋ (－5) ＝ 5[μｍ]
＜Mode = 4 steps＞
Comparator threshold 1 = 5mm
Comparator threshold 2 = 10mm
Comparator threshold 3 = 15mm
Comparator threshold 4 = 20mm
Current value = 12mm
Output → area “2”
To Next Page
