Flex 6EX System Instruction Manual
March 2016
Page 14 of 38

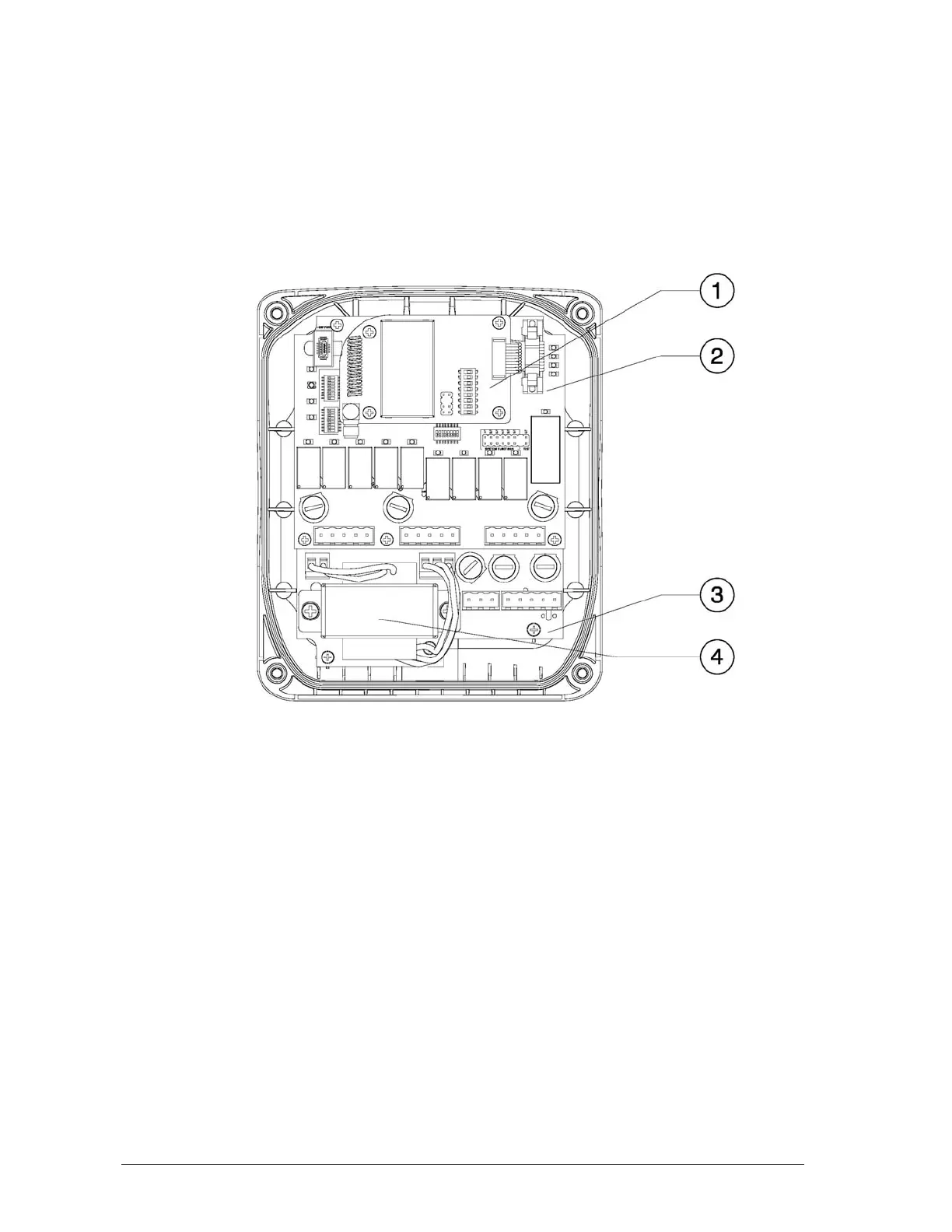

3.2.2 Internal Illustration
(Fig. 06)
1. Receiving Module 3. AC Line Filter/Relay Board
2. Decoder/Relay Board 4. Power Transformer
