4.2 RECEIVER UNIT
4.2.1 System Channel Settings

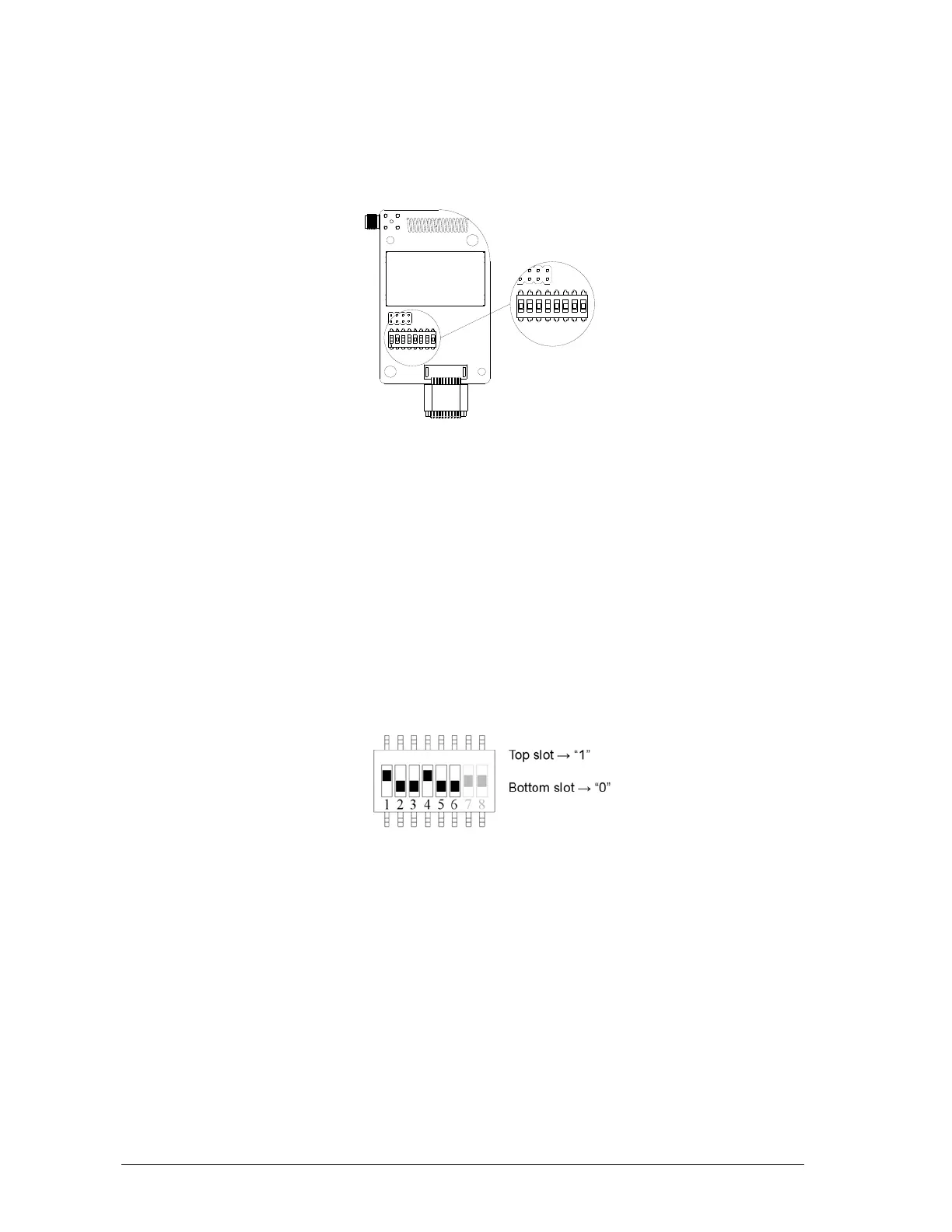

(Fig. 10)
Even though the Flex system is equipped with an automatic channel scanning mode, the user
can also set the receiver channel manually. Please refer to page 33 on how automatic channel
scanning receiver works.
Set the receiver channel by adjusting the channel dip-switch located on the receiver module
(refer to Fig. 10 above). Only the first six (6) positions are used for channel programming (refer
to Fig. 11 below). The system channels table located on page 27 illustrates which dip-switch
setting corresponds to which channel. Once the receiver channel is altered, make sure to
change the transmitter channel as well. The channel on both the transmitter and receiver must
be identical in order for system to work. To change the transmitter channel please refer to page
15.
Example:
(Fig. 11)
The above dip-switch setting “1 0 0 1 0 0” corresponds to “channel 36” in the system
channels table on page 27.
