Flex 6EX System Instruction Manual
March 2016
Page 20 of 38
F1 R1
F/R2
F1 F2R1 R2

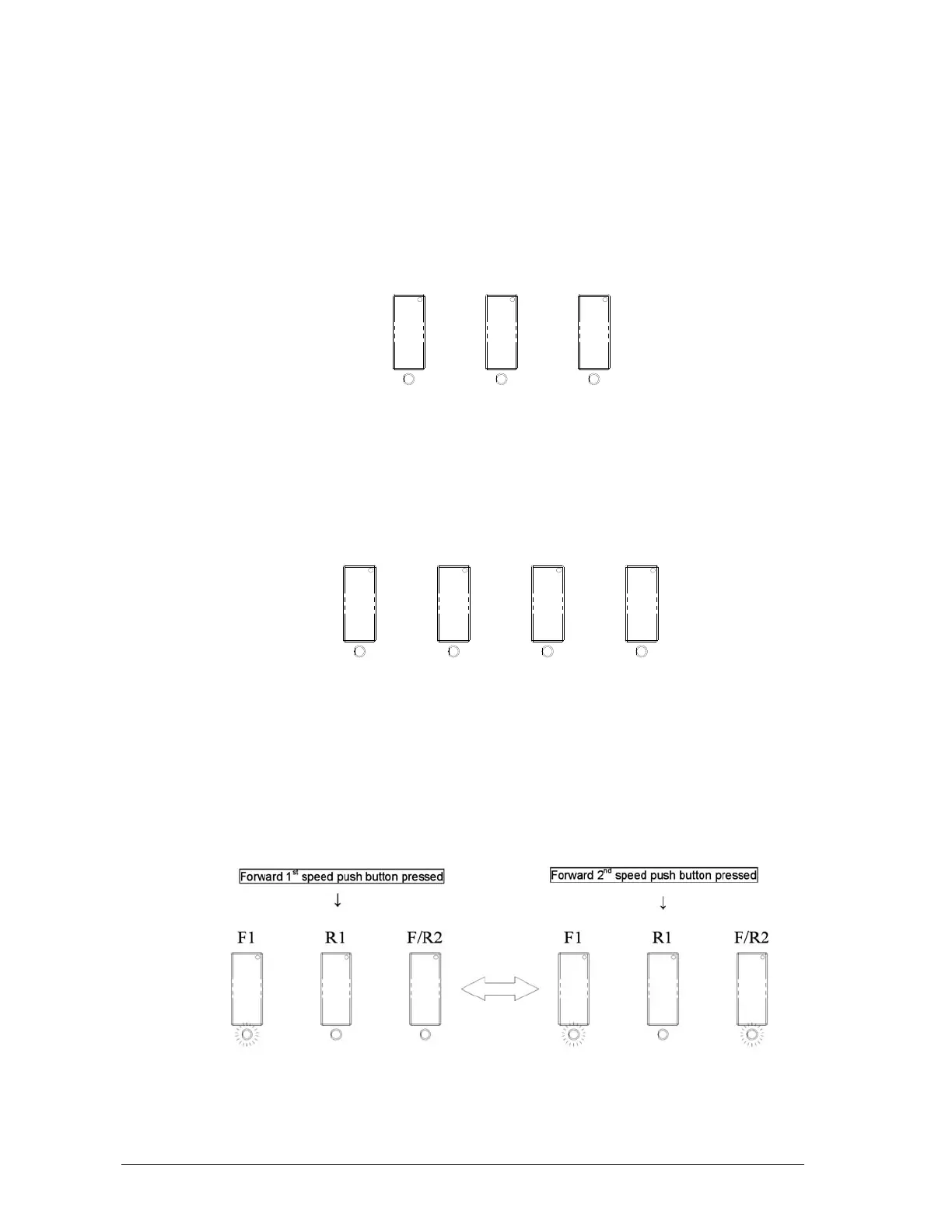

4.2.2 Output Relay Configurations
4.2.2.1 Output Relay Types
a. Three (3) output relays per motion – shared 2
nd
speed output relay
Output relays with Forward 1
st
speed (F1), Reverse 1
st
speed (R1) and
Forward/Reverse 2
nd
speed (F/R2). Forward and Reverse 2
nd
speed (F/R2) shared the
same output relay.
b. Four (4) output relays per motion – separate 1
st
and 2
nd
speed output
relays
Output relays with Forward 1
st
speed (F1), Reverse 1
st
speed (R1), Forward 2
nd
speed
(F2) and Reverse 2
nd
speed (R2). Forward and Reverse 2
nd
speed with separate output
relays.
4.2.2.2 Output Relay Actions at 2
nd
Speed
a. 3-output relays configuration with Closed/Closed contact at 2
nd
speed
At 2
nd
speed, both 1
st
speed (F1 or R1) and 2
nd
speed (F/R2) output relays are
closed (refer to page 23 on how to set to this function).
