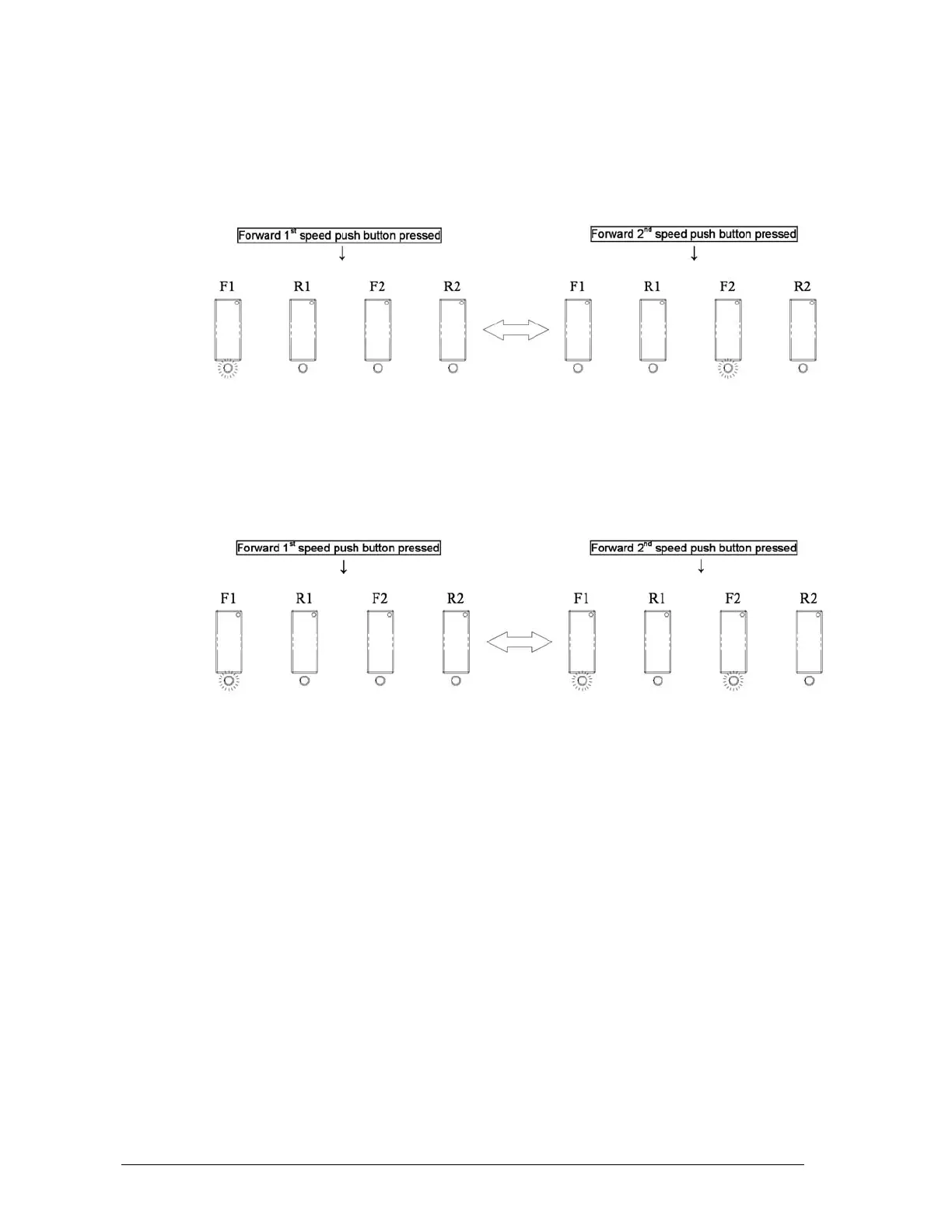

b. 4-output relays configuration with Opened/Closed contact at 2
nd
speed
At 2
nd
speed, only the 2
nd
speed (F2 or R2) output relay is closed (refer to page 23 on
how to set to this function).
c. 4-output relays configuration with Closed/Closed contact at 2
nd
speed
At 2
nd
speed, both 1
st
speed (F1 or R1) and 2
nd
speed (F2 or R2) output relays are
closed (refer to page 23 on how to set to this function).
4.2.2.3 START/AUX Function
After initiating the START function the Start position will become an auxiliary function with
momentary contact. For auxiliary applications such as horns or buzzers, please connect it to
the FUNC output relay (wire #5) located inside the receiver unit.
4.2.2.4 Momentary Contact
When the push button is released, the output relay that corresponds to that push button
will open (refer to page 24 on how to set to this function). This type of contact is usually
applied to external application such as horns or buzzers.
4.2.2.5 Toggled Contact
When the push button is released, the output relay that corresponds to that push button will
remain closed (maintained contact) until next time the user presses the same push button
again (refer to page 24 on how to set to this function). This type of contact is usually applied
to external application such as lights.
