Flex 6EX System Instruction Manual
March 2016
Page 23 of 38
1 324 756 8
8
7
65
4
3
21
1234
5
6781234
5
678
RELAY FUNCTIONS
RELAY FUNCTIONS
SYSTEM FUNCT IONS
TEST
JP7
JP6
JP5
JP4
JP3
JP2
JP1
I-CHIP PORT
PB1 & PB2 PB3 & PB4
PB5 & PB6

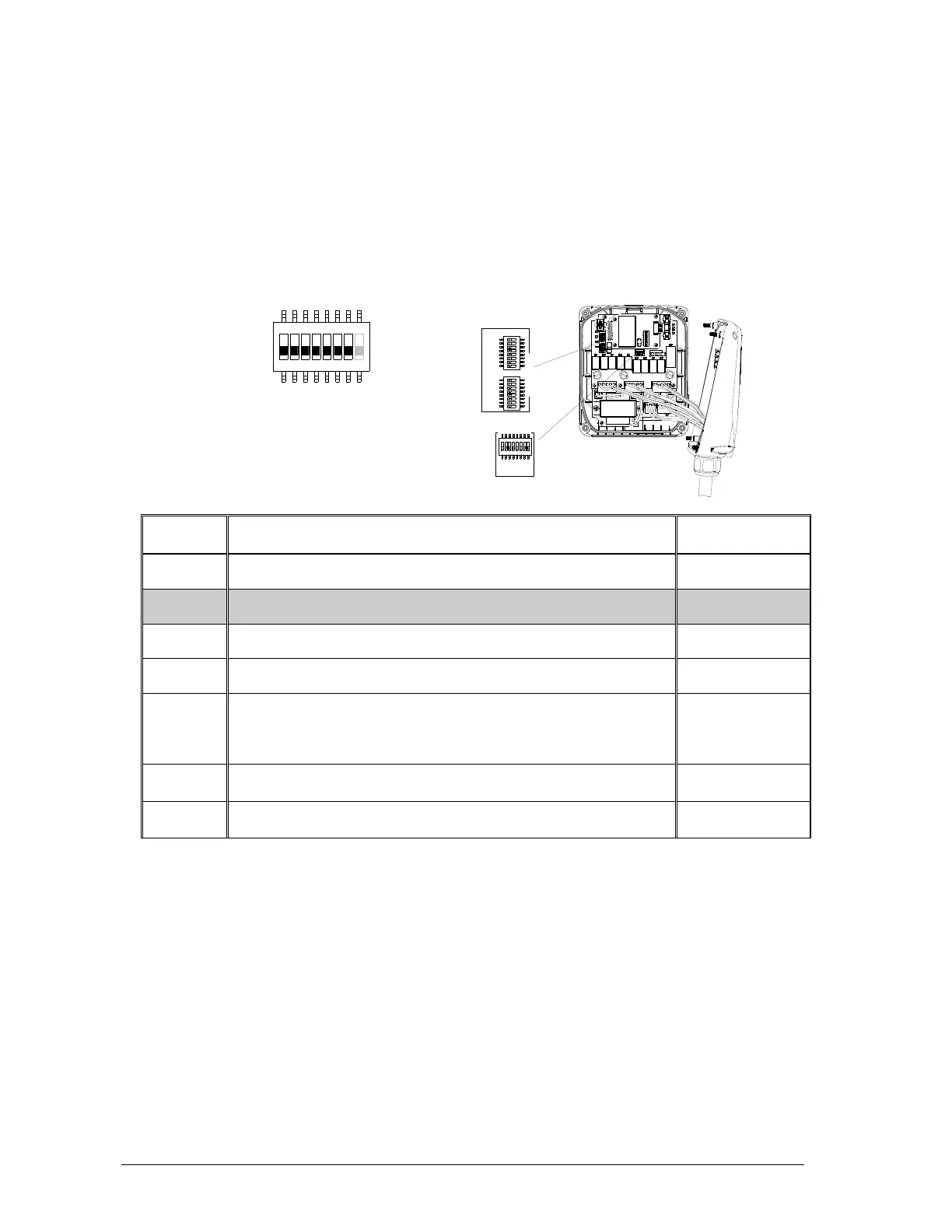

4.2.4 Dip-Switch Settings
4.2.4.1 Interlocked Functions
Interlocked means the two adjacent push buttons cannot be activated simultaneously as
they will cancel each other out. Interlocked settings are usually applied to forward and
reverse motions. Each dip-switch on the decoder module corresponds to one (1) motion or
two (2) adjacent push buttons (refer to Fig. 12 & 13 below). Only the first seven (7) dip-
switch positions are used (counting from left to right); the 8
th
dip-switch position (far right) is
not used.
(Fig. 12)
(Fig. 13)
Manufacture preset
Dip
Settings
Function Descriptions # of Relays Used
0000000 Normal (single speed only, F2 & R2 relays not used) 2
0000001 Closed/Closed Relay Action at 2
nd
Speed (separate 2
nd
speed relay) 4
0000010 Closed/Closed Relay Action at 2
nd
Speed (shared 2
nd
speed relay) 3
0000011 Opened/Closed Relay Action at 2
nd
Speed (separate 2
nd
speed relay) 4
0001001
On + Start / Off + Start -- Prior to pressing the button you must first rotate
and hold the power key switch at START position to
activate On or Off relays.
2
0001010 FWD/REV toggled (latched). 2
0001011 FWD/REV toggled (latched) and affected by the E-stop command. 2
