43
mWing
Installation and assembly
8x
1
2
8x
3
4

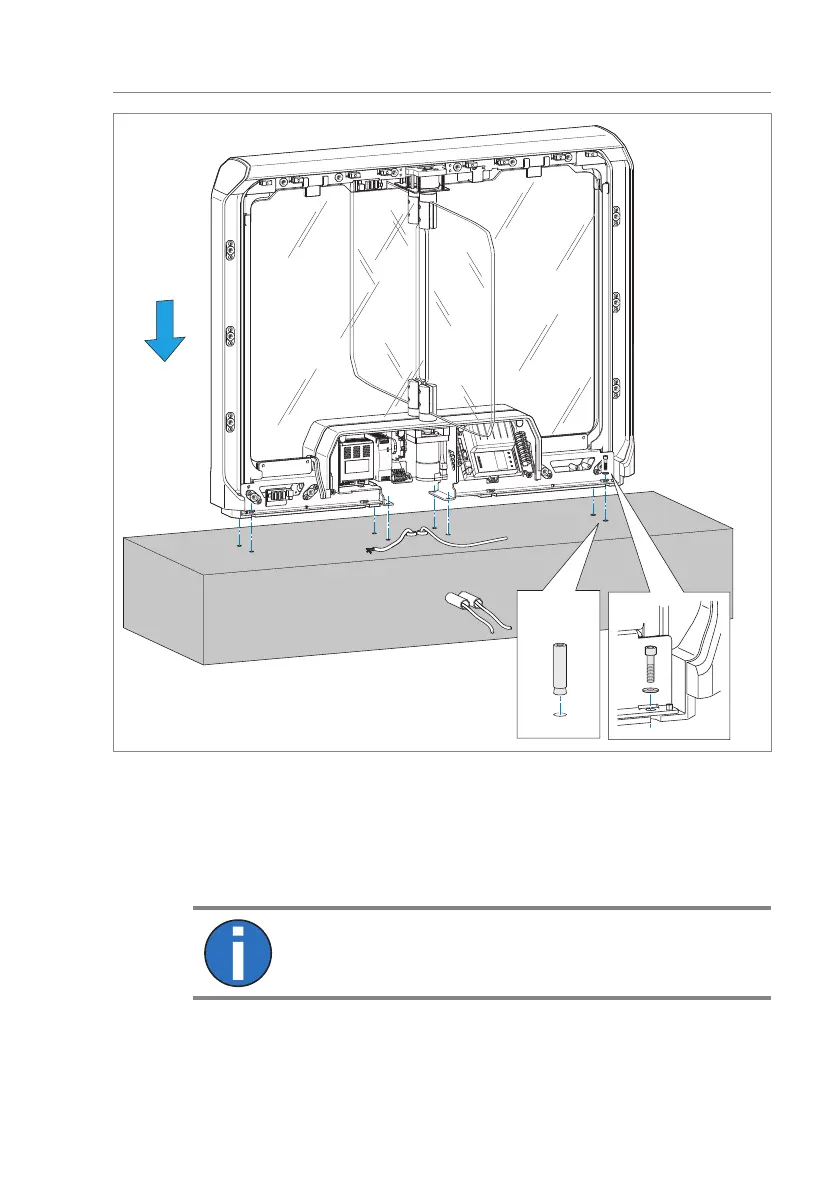

Fig. 15: Mounting version "direct mounting" – Mounting the pedestrian gate
1 Boreholes (8 x)
2 Sleeve with inner thread 12 x 90, M8, stainless steel (8 x)
3 Washer A 8.4 mm, stainless steel (4 x)
4 Screw M8 x 30, stainless steel
IMPORTANT!
Follow the separate notices and instructions for the composite
mortar and foundation anchors.
ä Foundation and empty conduit plan Page 37, Fig. 11.
