Magnetic MHTM FlowMotion mWing - Page 48

48
mWing
Installation and assembly
3
Mag10013
8x
1
2

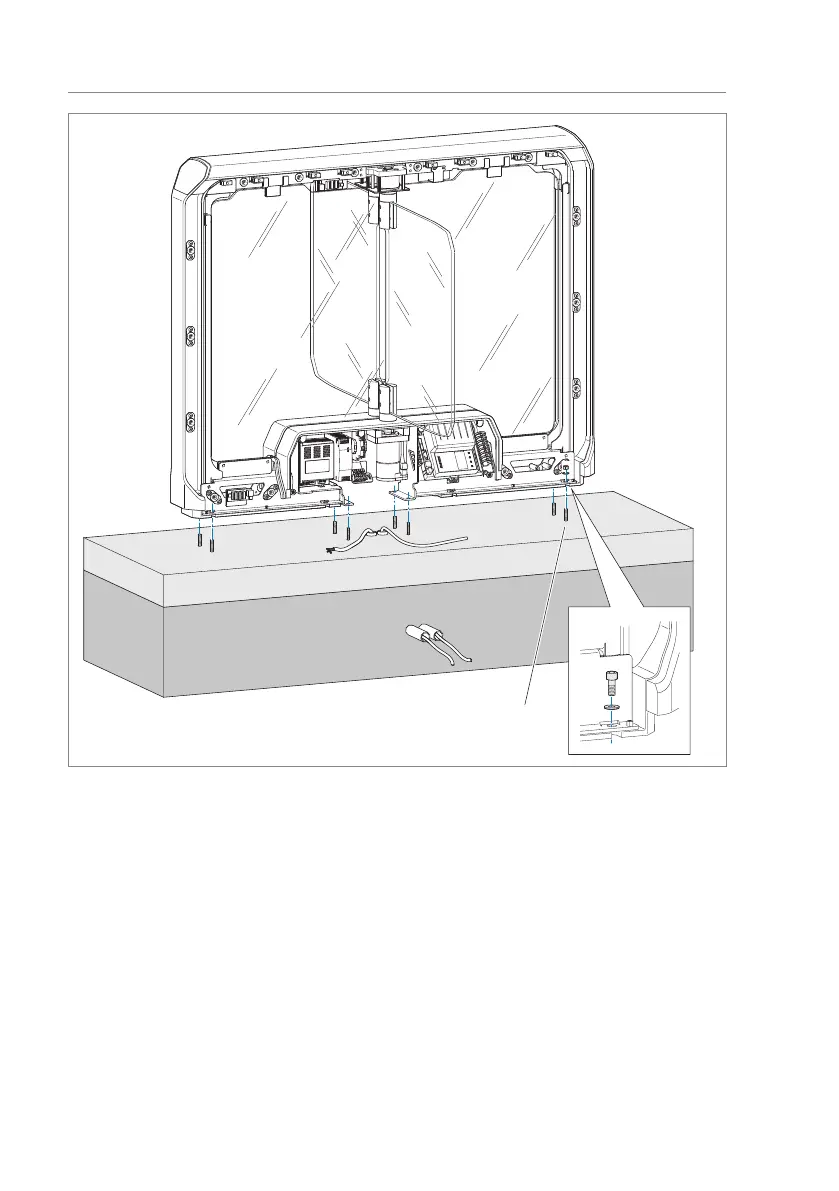

Fig. 19: Mounting version "base plate mounting" – Mounting the pedestrian gate
1 Nut M8 (8 x)
2 Washer A 8.4 mm, stainless steel (4 x)
3 Threaded rods M8 x 210, stainless steel, (8 x)
