Installation and assembly
Mounting the pedestrian gate after completion of the finished floor
Prerequisites
› The finished floor is finished.
1. Remove the drilling template and nuts from the threaded rods.

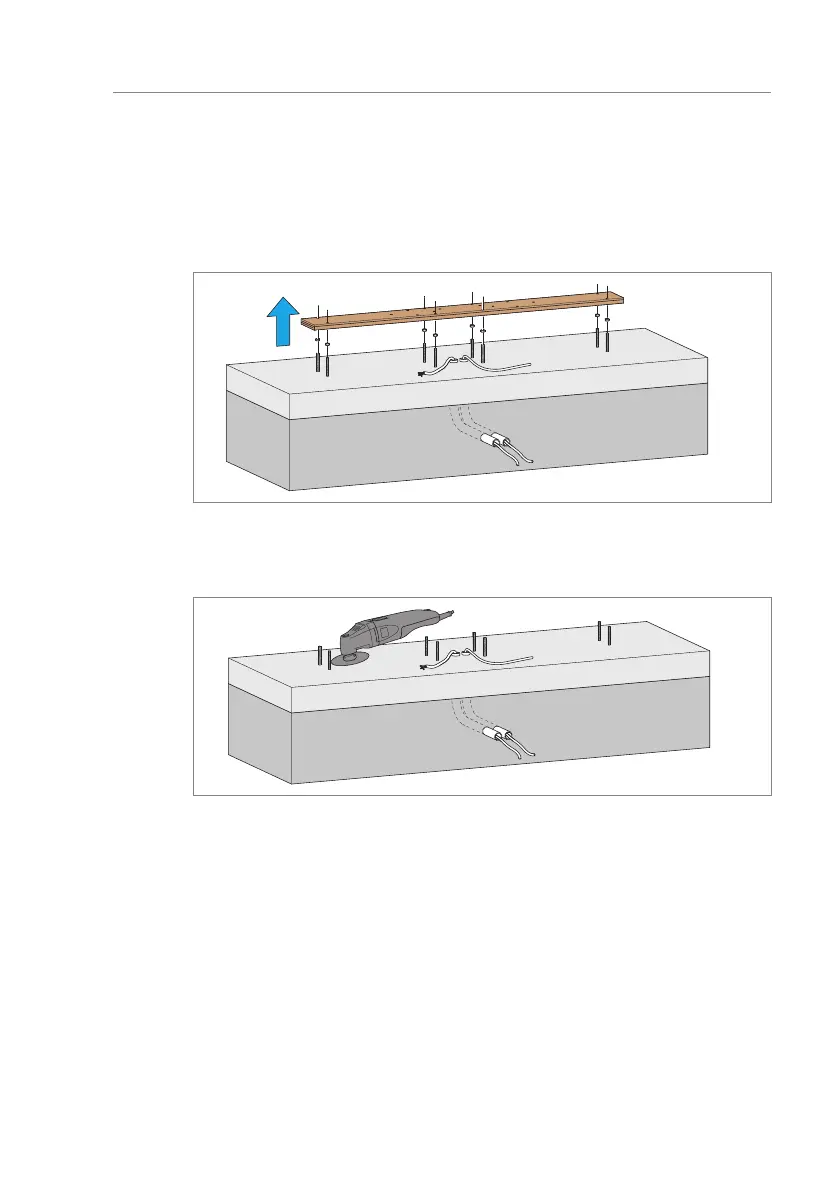

Fig. 17: Remove drilling template and nuts
2. Flex off threaded rods 20 mm above the finished floor.
Fig. 18: Flexing off threaded rods
3. Place the pedestrian gate on the threaded rods. ä Page 48, Fig. 19.
4. Mount the pedestrian gate with screws.
5. Slightly tighten the screws.
6. Align the pedestrian gate.
7. Tighten screws to 10 Nm.
8. If necessary, seal the housing with a silicone joint.
9. Arrange electrical connections. ä Page 59, chapter 8.
10. Mount strips, side parts, and cover. ä Page 53, chapter 7.8.
