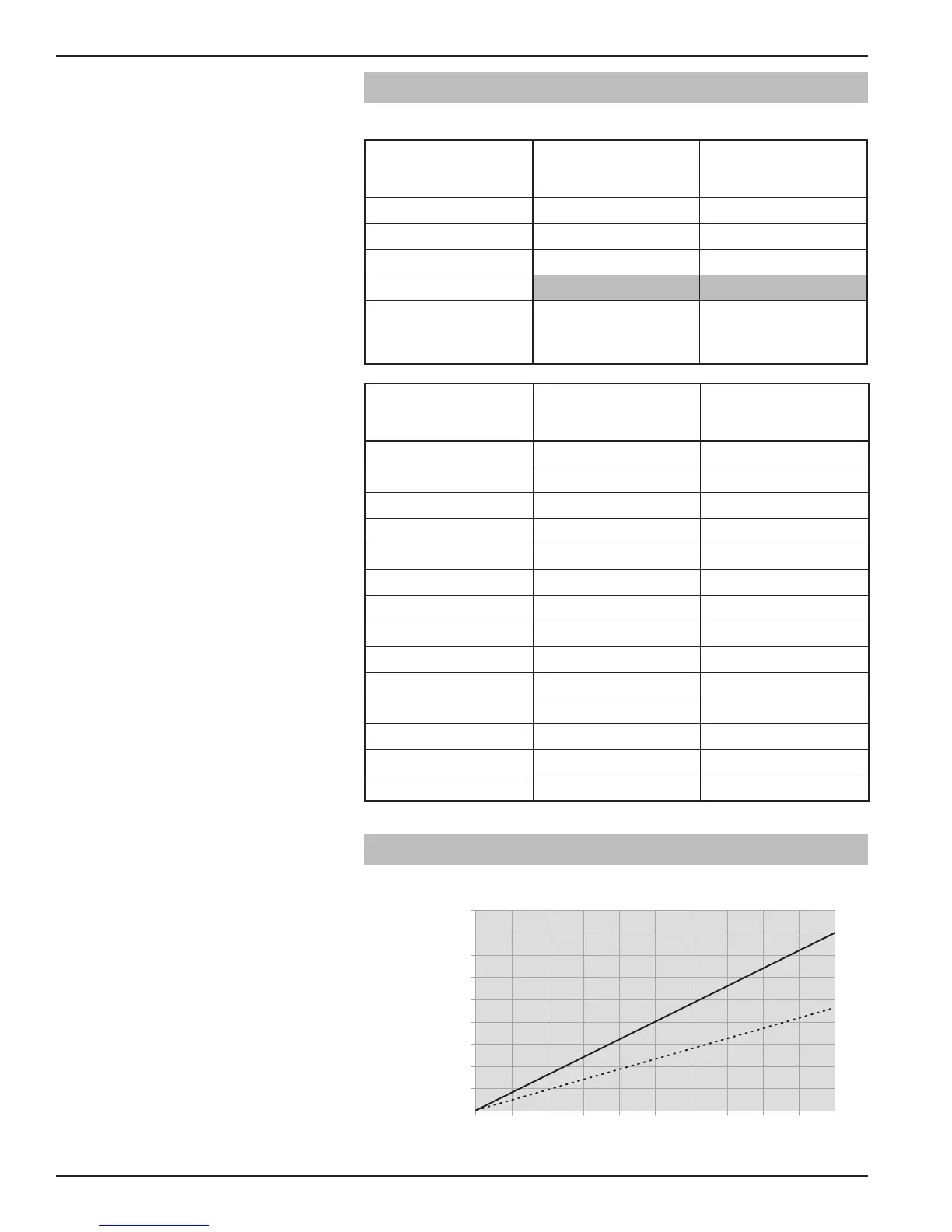

Magnetrol eclipse 705 Functional Safety Manual

14
57-650 Eclipse
®
SIL Functional Safety Manual
7.3 Specific Model 705 Values
7.4 PFD Graph
Proof Test Interval
(months)
PFD avg.
(SIL 2)
PFD avg.
(SIL 1)
0 0.00E+00 0.00E+00
6 2.37E-04 4.05E-04
12 4.69E-04 8.06E-04
18 7.02E-04 1.21E-03
24 9.34E-04 1.61E-03
30 1.17E-03 2.01E-03
36 1.40E-03 2.41E-03
48 1.86E-03 3.21E-03
60 2.33E-03 4.01E-03
72 2.79E-03 4.81E-03
84 3.26E-03 5.62E-03
96 3.72E-03 6.42E-03
108 4.18E-03 7.22E-03
120 4.65E-03 8.02E-03
Eclipse
®
Model 705-51-xx-xxx
Eclipse
®
Model 705-51Ax-xxx
Eclipse
®
Model 705-510x-xxx
SIL SIL 2 SIL 1
HFT 0 0
SFF 91.0% 84.5%
PFD
avg
4.69E-04 8.06E-04
Proof Test Interval Annually
(refer to table below for
other periods)
Annually
(refer to table below for
other periods)
Specific Model 705
9.00E-03
8.00E-03
7.00E-03
6.00E-03
5.00E-03
4.00E-03
3.00E-03
2.00E-03
1.00E-03
0.00E+00
012345678910
Years
Probability
70
5
-
5
10
*-**
*
705-
51A
*-**
*
PFD
AVG
(t) Eclipse
®
Enhanced Model 705
