3.5 Parts
3
.5.1 Replacement Parts
Item Description Part Number
➀ Electronic module
HART with display (SIL 1) Z31-2835-001
HART without display (SIL 1) Z31-2835-002
HART with display (SIL 2) Z31-2835-003
HART without display (SIL 2) Z31-2835-004
FOUNDATION fieldbus with display Z31-2841-001
FOUNDATION fieldbus without display Z31-2841-002
PROFIBUS PA with display Z31-2846-001
PROFIBUS PA without display Z31-2846-002
Hygienic HART with display (SIL 1) 89-7254-001
Hygienic FOUNDATION fieldbus with display 89-7254-002
Hygienic PROFIBUS PA with display 89-7254-004
➁ Terminal board
HART General Purpose (GP), Intrinsically Safe (IS), Explosion Proof (XP) Z30-9151-001
FO
UNDATION
fieldbus (XP) Z30-9151-003
FO
UNDATION
fieldbus (IS/Fisco) Z30-9151-004
➂ O-ring (Viton
®
) Z12-2201-237
(Consult Factory for alternative O-ring materials)
➃ Housing cover without glass 004-9225-002
➄ Housing cover with glass (GP, IS) 036-4410-001
(XP) 036-4410-003
7xB Twin Rod Probe Shortening Kit (consult factory) 089-9112-XXX
7x7 Twin Rod Flexible Probe Weight 089-9121-001
7xF Single Rod Rigid Probe – Spacer Kit (Spacer & Pin) 089-9114-001
7x1 Single Rod Flexible Probe Weight 089-9120-001
3.5.2 Recommended Spare Parts
Item Description Part Number
➀ Electronic module
HART with display (SIL 1) Z31-2835-001
HART without display (SIL 1) Z31-2835-002
HART with display (SIL 2) Z31-2835-003
HART without display (SIL 2) Z31-2835-004
FOUNDATION fieldbus with display Z31-2841-001
FOUNDATION fieldbus without display Z31-2841-002
➁ Terminal board
HART General Purpose (GP), Intrinsically Safe (IS), Explosion Proof (XP) Z30-9151-001
F
OUNDATION fieldbus (XP) Z30-9151-003
F
OUNDATION fieldbus (IS/Fisco) Z30-9151-004

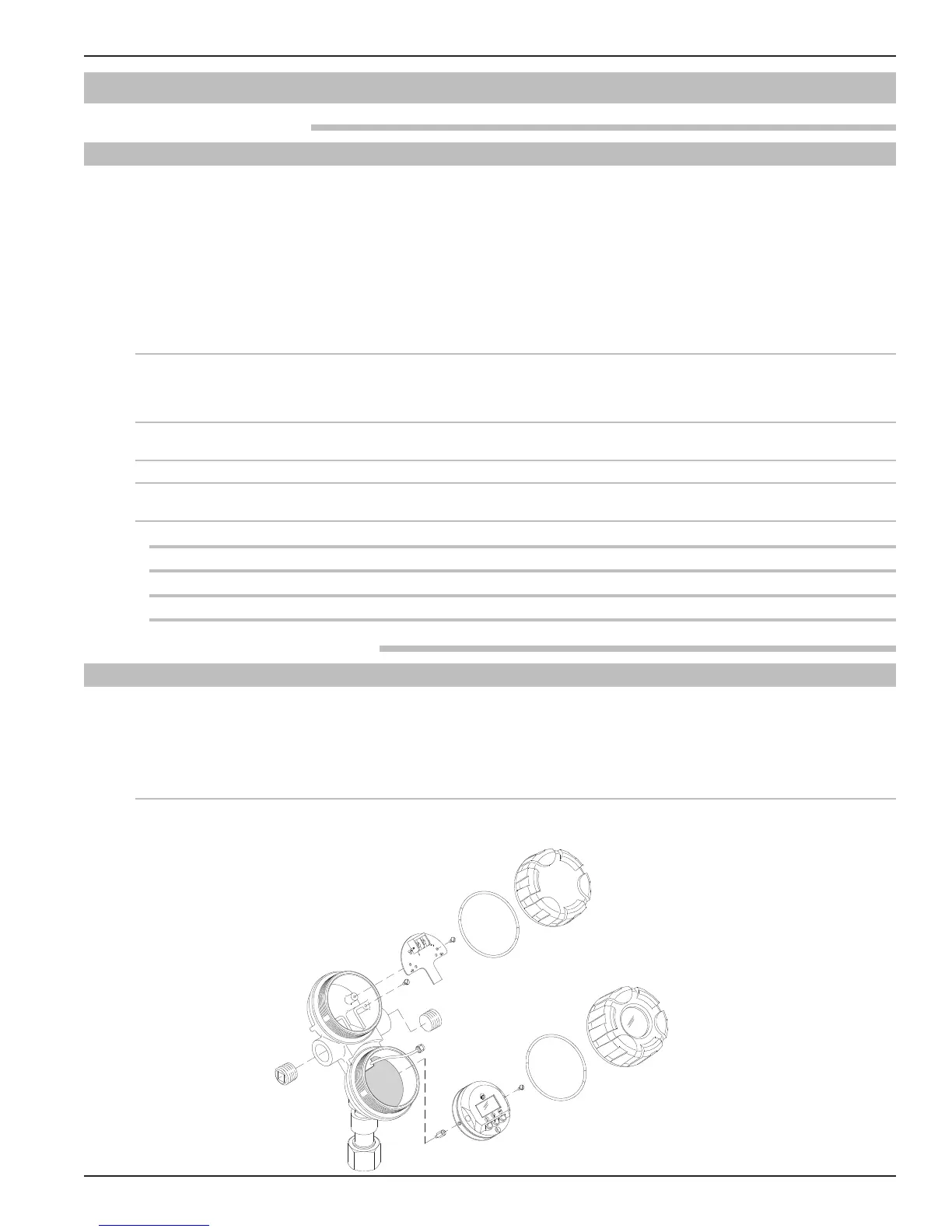

57-600 Eclipse
®
Guided Wave Radar Transmitter
➀
➁
➂
➃
➄
➂
