57-640 Eclipse Guided Wave Radar Transmitter - FOUNDATION fieldbus
™
2.3 QuickStart Wiring
WARNING! Explosion hazard. Do not connect or disconnect equip-
m
ent unless power has been switched off or the area is
known to be non-hazardous.
NOTE: Ensure that the electrical wiring to the Eclipse transmitter is
complete and in compliance with all regulations and codes.

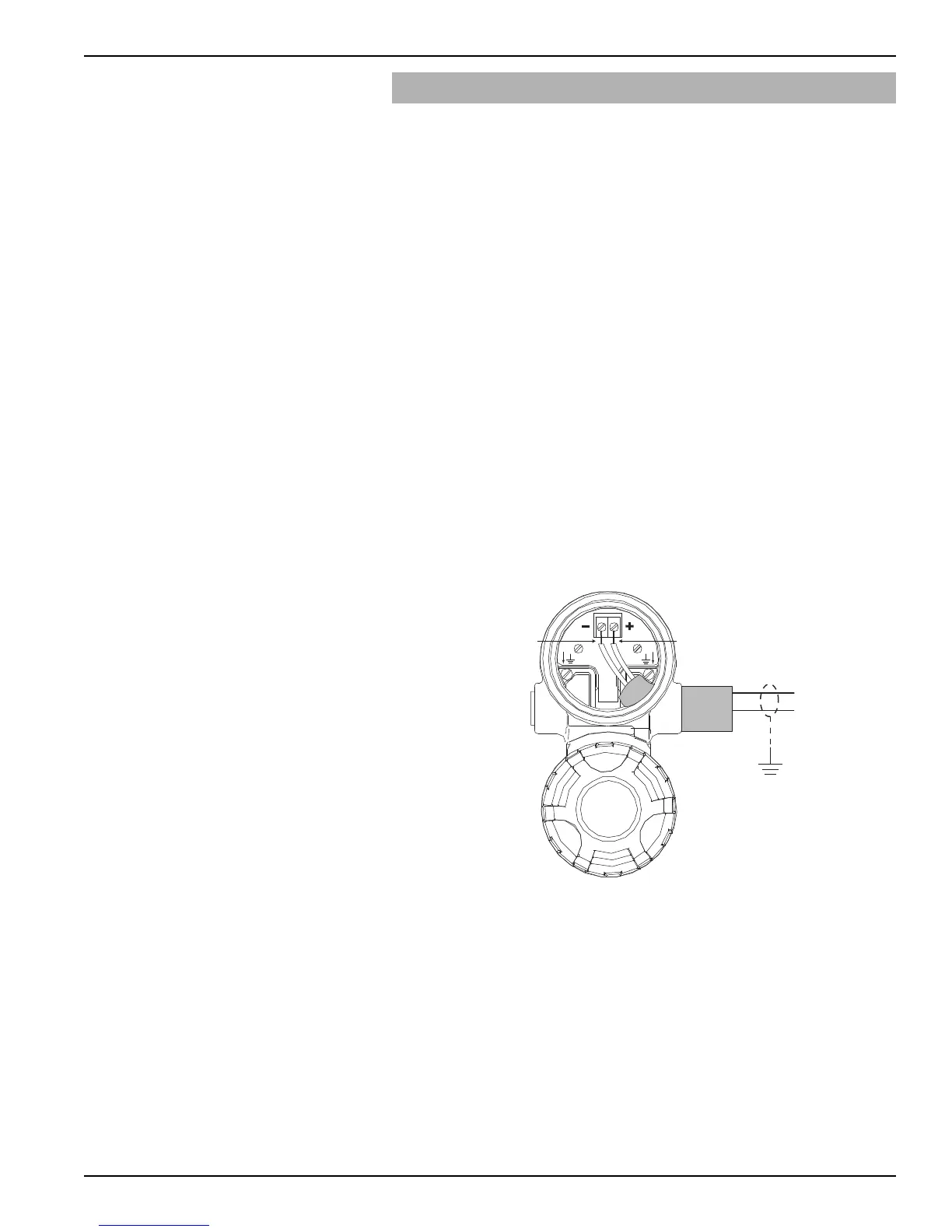

1. Remove the cover of the upper wiring compartment of the
transmitter.
2. Attach a conduit fitting and mount the conduit plug in the
spare opening. Pull the power supply wire through the con-
duit fitting.
3. Connect shield to an earth ground at power supply.
4. Connect the positive supply wire to the (+) terminal and the
negative supply wire to the (-) terminal. For Explosion
Proof Installations, see Wiring, Section 2.5.3 of I/O manual
57-600.
5. Replace the cover and tighten.
Blue
(typical) (+)
Brown
(typical) (-)
(+)
(-)
To Next Page
