1 Before shutting down the lift, open the
column unit using button "0/1".
LED "Column unit" goes off.
2 Turn main switch to position 0.
Pos: 73 / Techn ische Dokument ation/ Alle Ger äte/Über schr iften/ Überschri ften 1.1/N/ Überschr ift 1 .1: Notab -Funktion, mechanisch @ 15\mod_1 24525 09212 86_75. docx @ 3 90749 @ 2 @ 1
Emergency-down Function, Mechanical
Pos: 74 / Techn ische Dokument ation/ Hebetech nik/ 00 HBZ Alle/In halte/ Warnun g!/Inhalt : Warn ung - M anuelles Absen ken n ur durch gesch ultes Perso nal @ 6\mod _1180 9622 17687_ 75.do cx @ 9521 7 @ @ 1
Authorized personnel only! Do not restart the lift before the error has been remedied.
Pos: 75 / Techn ische Dokument ation/ Hebetech nik/ 49 Radgr eifer-H ebebü hnen/12 01 MC L/BA/I nha lt: 4912 N otab-F un kt ion, m ech an isc h (B ild er) MCL / R GB @ 15\ mod_1243953835571_0.docx @ 384971 @ @ 1
Pos: 76 / Techn ische Dokument ation/ Hebetech nik/ 49 Radgr eifer-H ebebü hnen/12 01 MCL/ BA/I nha lt: 49 12 No tab-F unkt ion, m ech anisc h (T ext) MCL / RG B @ 15\mod_1243953772273_75.docx @ 384941 @ @ 1

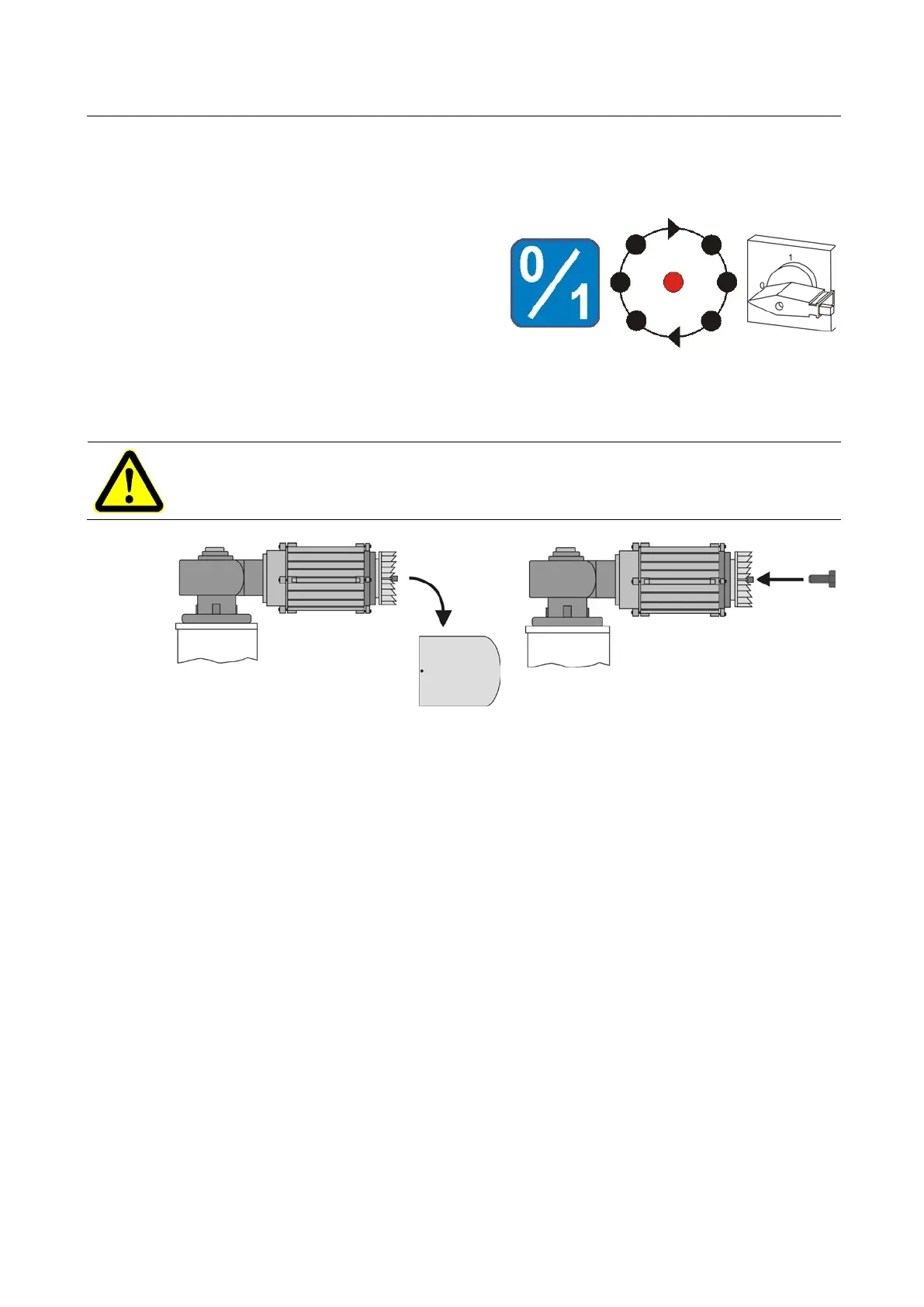

In case of power failure or defects the lift can be lowered manually. The lift may only be lowered,
not raised.
1 Remove the fan cowl from the motor.
2 Screw a hex head cap screw M8x10 into the thread inside the motor shaft.
3 Place a suitable socket on the screw and turn it in clockwise direction using a hand drill, until
the carriage has lowered approx. 50 mm.
4 Intermittently lower the columns in increments of approx. 50 mm, until the lift is in bottom
position.
5 After the error has been remedied, perform an emergency-down to reinitialize the control, or
contact your service representative.
