Maintenance by the Operator
Pos: 94 /Techn ische Dokument ation/Alle Ger äte/Übersc hriften/ Überschrifte n 1.1.1/T/Üb erschrift 1.1. 1: Tragmutterv erschleiß überprüfe n @ 6\mod_1178543668125_75.docx @ 91383 @ 3 @ 1
Checking the Load Nut for Wear
Pos: 95 / Techn ische Dokument ation/ Alle Ger äte/I nhalte/I nfo!/Inh alt: I nfo - War tungsint ervall: 12 Monate @ 10\mod_1218713123941_75.docx @ 238363 @ @ 1
Maintenance interval: 12 months
Pos: 96 / Techn ische Dokument ation/ Hebetech nik/ 00 HBZ Alle/In halte/ Warnun g!/Inhalt : Warn ung - Bis zum Tra gmut tert ausc h Heb ebüh ne sti llle gen @ 6\mod_1178547595765_75.docx @ 91422 @ @ 1
Shut down and lock the lift until the worn-out load nut has been replaced.
Pos: 97 / Techn ische Dokument ation/ Hebetech nik/ 49 Radgr eifer-H ebebü hne n/12 01 MC L/BA/I nha lt: 4912 Tr agmu tter ver schlei ß pr üfen M CL/ RGB @ 6\m od_11 78543 83751 5_7 5.docx @ 91396 @ @ 1
1 Lower the carriage to bottom position.

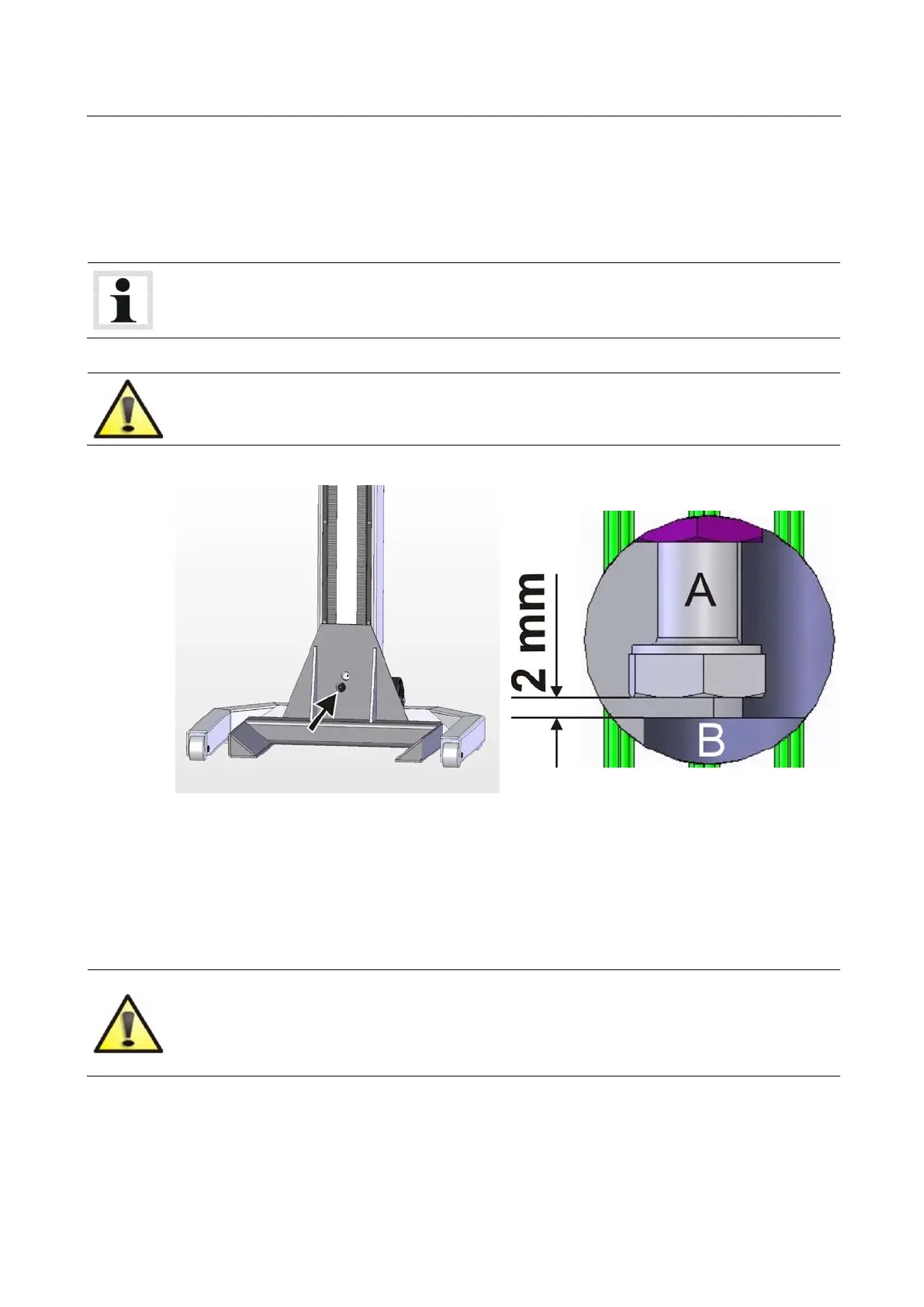

2 Remove the cap plug from the inspection window (arrow).
3 Check the clearance between check screw (A) and safety nut (B). New load nuts have a
clearance of approx. 2 mm. If no clearance can be detected, the load nut is worn out and must
be replaced together with the safety nut.
4 At completion of wear check reinstall the cap plugs.
Pos: 98 / Techn ische Dokument ation/ Hebetech nik/ 00 HBZ Alle/In halte/ Warnun g!/Inhalt : Warn ung - Kor rekter Abst and Kontrollschr aube @ 6\mod_1178547716796_75.docx @ 91435 @ @ 1
The correct setting of the clearance between wear check screw and safety nut is imperative for
proper functionality and safety of the lifting screw and load nut system.
If the clearance is not set properly when installing the new load nut, the wear and tear on the load
nut can no longer be reliably checked. In this case, the safe operation of the lift can no longer be
guaranteed.
