3.11

Transverse Beam for Semitrailers

Pos: 79 / Techn ische Dokument ation/ Hebetech nik/ 49 Radgr eifer-H ebebü hnen/00 01 Rad greifer -Hebebü hnen A lle/Inh alte/In halt: Auf nahmetr aver se für Sattela uflieger (Bild er) @ 1 5\mod_1243954431770_0.docx @ 385024 @ @ 1

Pos: 80 / Techn ische Dokument ation/ Hebetech nik/ 49 Radgr eifer-H ebebü hnen/00 01 Rad greifer -Hebebü hnen A lle/Inh alte/In halt: Auf nahmetr aver se für Sattela uflieger (Tex t) @ 15\mod_1243954387004_75.docx @ 384993 @ @ 1

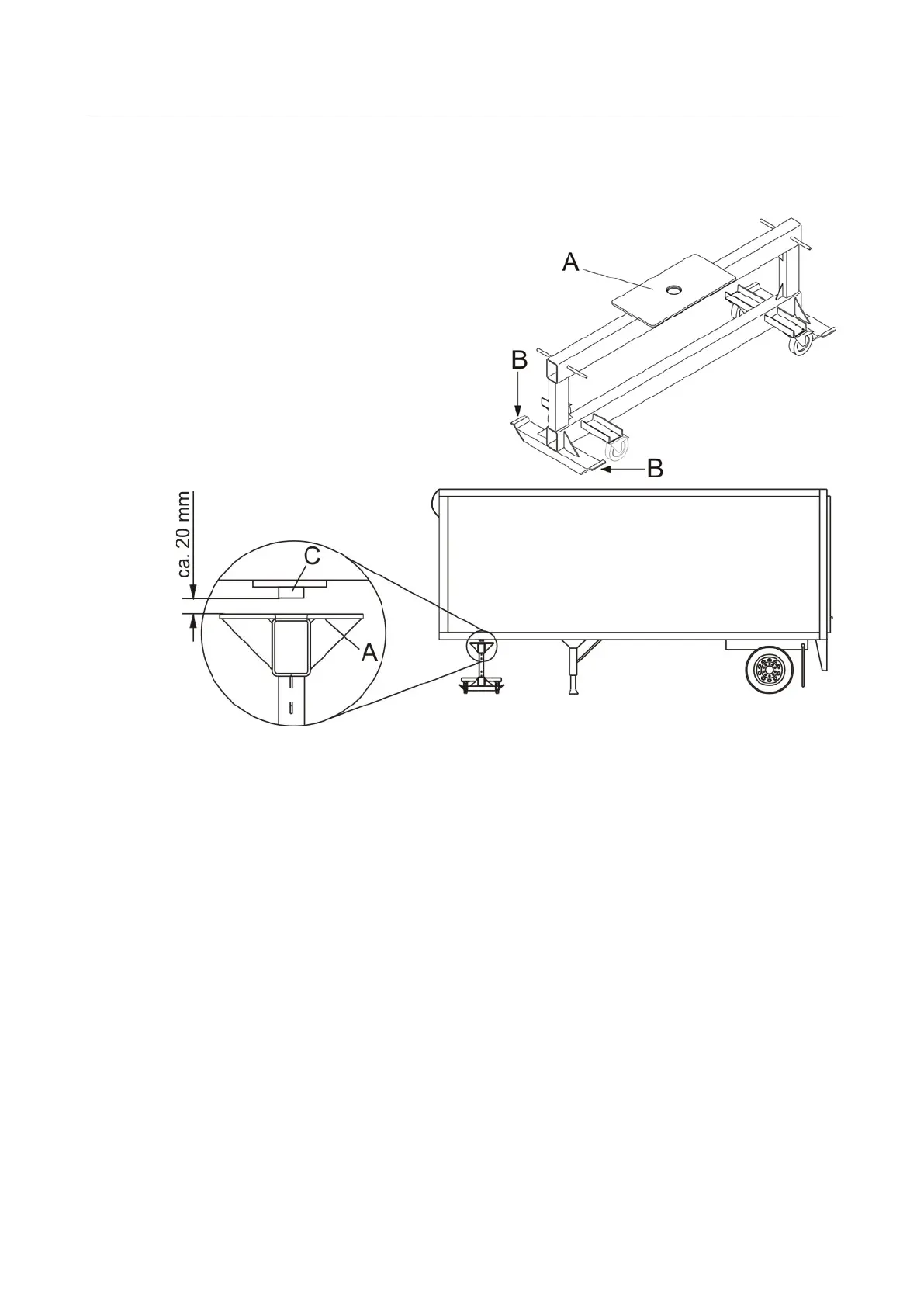

A Support plate with location hole for central pivot of semitrailer

B Lift points for support forks

1 Position transverse beam under central pivot (C) of semitrailer.

2 Lower semitrailer until central pivot is approx. 20 mm above support plate (A).

Do not load the rollers of the transverse beam with the weight of the semitrailer.

3 Check for alignment of central pivot and location hole. Adjust if required.

4 Position the columns.

5 Raise the semitrailer being sure the central pivot engages the location hole.
