Design and Operating Principle
Pos: 31 /Tec hnische Dokume ntat ion/Hebet echni k/49 Rad greifer -Hebeb ühn en/1 201 M CL/BA/ I nhalt : 491 2 Aufb au+ Arb eitspri nzip M CL/ RG B/RGA @ 11\ mod_1227616300679_75.docx @ 275388 @ @ 1
•
The complete system of the Mobile Column Lift consists of individual columns, which can be
interconnected (e.g. 4, 6, 8 columns) and used to raise commercial vehicles. A maximum number
of 8 columns per lift system can be logically interconnected.
A maximum number of 8 lift systems can be operated parallel, with information exchange on
different radio channels.
The complete system can be operated from each individual column. The columns interact via radio
communication, with each lift system using its own channel.
•
The columns are mechanically designed for engaging the wheels of commercial vehicles.
They are all identical and interchangeable from system to system. Power supply is effected via a
standard three-phase connection.
•

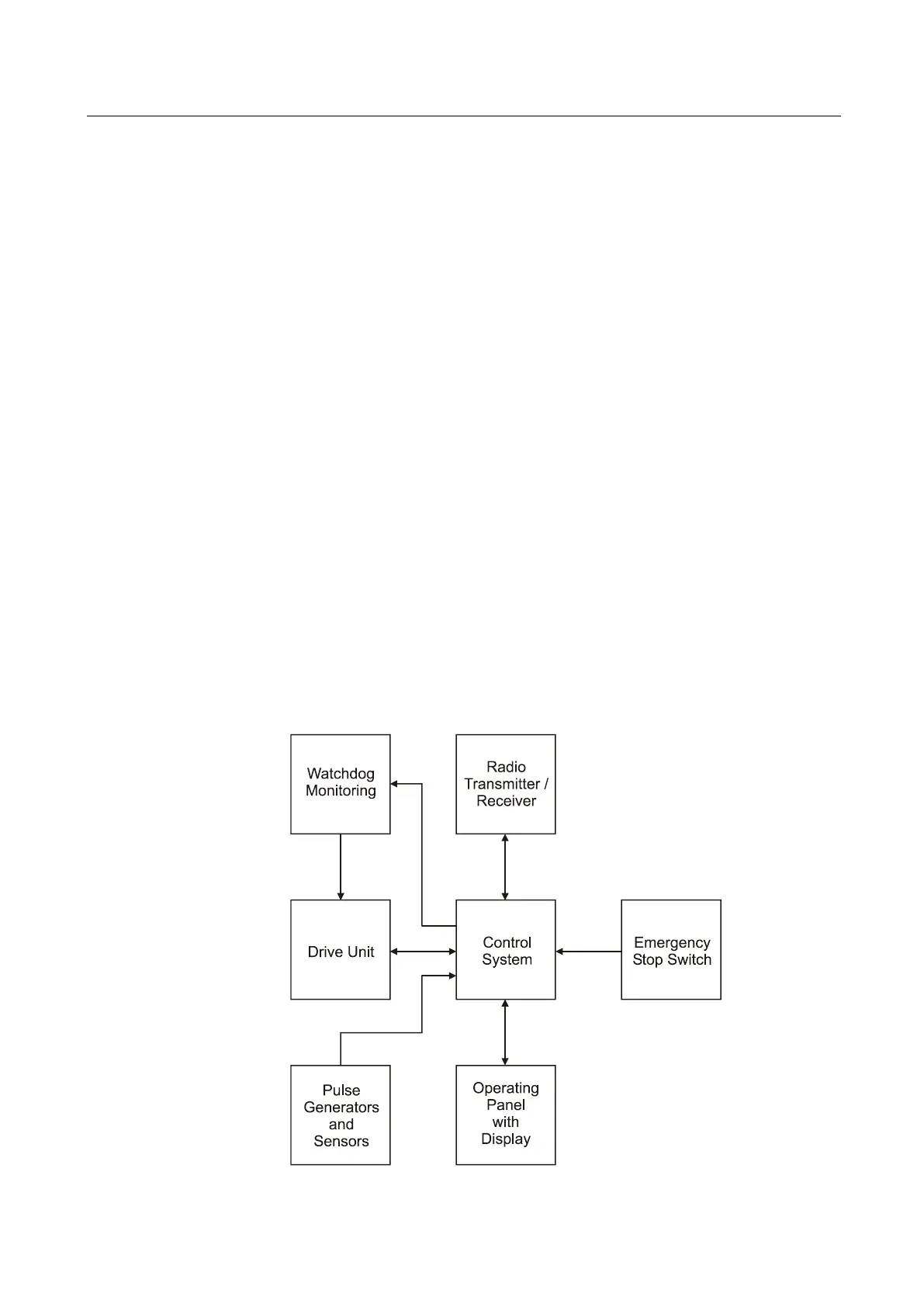

Each column is equipped with a control unit made up of the following components:
• Operating panel with display
• Microprocessor
• Pulse generators and sensors
• Watchdog monitoring
• Radio transmitter / receiver
• Drive unit
• Emergency stop switch
