1.10
What to Do in the Event of an Accident
Pos: 25 /Techn ische Dokument ation/Alle Ger äte/Inhal te/Sicher heit/Inhalt: Verhalten bei Unfä llen @ 34\mod_1381128804654_75.docx @ 18 371 23 @ @ 1
• The injured person is to be removed from the danger area. Find out where dressing and
bandages are kept. Seek first-aid.
• Provide first-aid (stop bleeding, immobilise injured limbs), report the accident and seal off the
accident site.
• Immediately report any accident to your supervisor. Make sure a record is kept of every
occasion first-aid is provided, e.g. in an accident book.
• Remain calm and answer any questions that may arise.
Pos: 26 / Techn ische Dokument ation/ Alle Ger äte/Über schr iften/ Überschr iften 1. 1/S/Über schrif t 1.1: Siche rheits einricht ungen @ 6\m od_11 74483 32476 5_7 5.docx @ 77103 @ 2 @ 1
1.11
Safety Features
Pos: 27 / Techn ische Dokument ation/ Hebetech nik/ 49 Radgr eifer-H ebebü hnen/19 01 RGA /BA/In halt: 4 919 Si cherhei tseinrich tung en @ 22\mod _1293 0038 94219_ 75.d ocx @ 95 9625 @ 33 333 @ 1
1.11.1
Locking Device

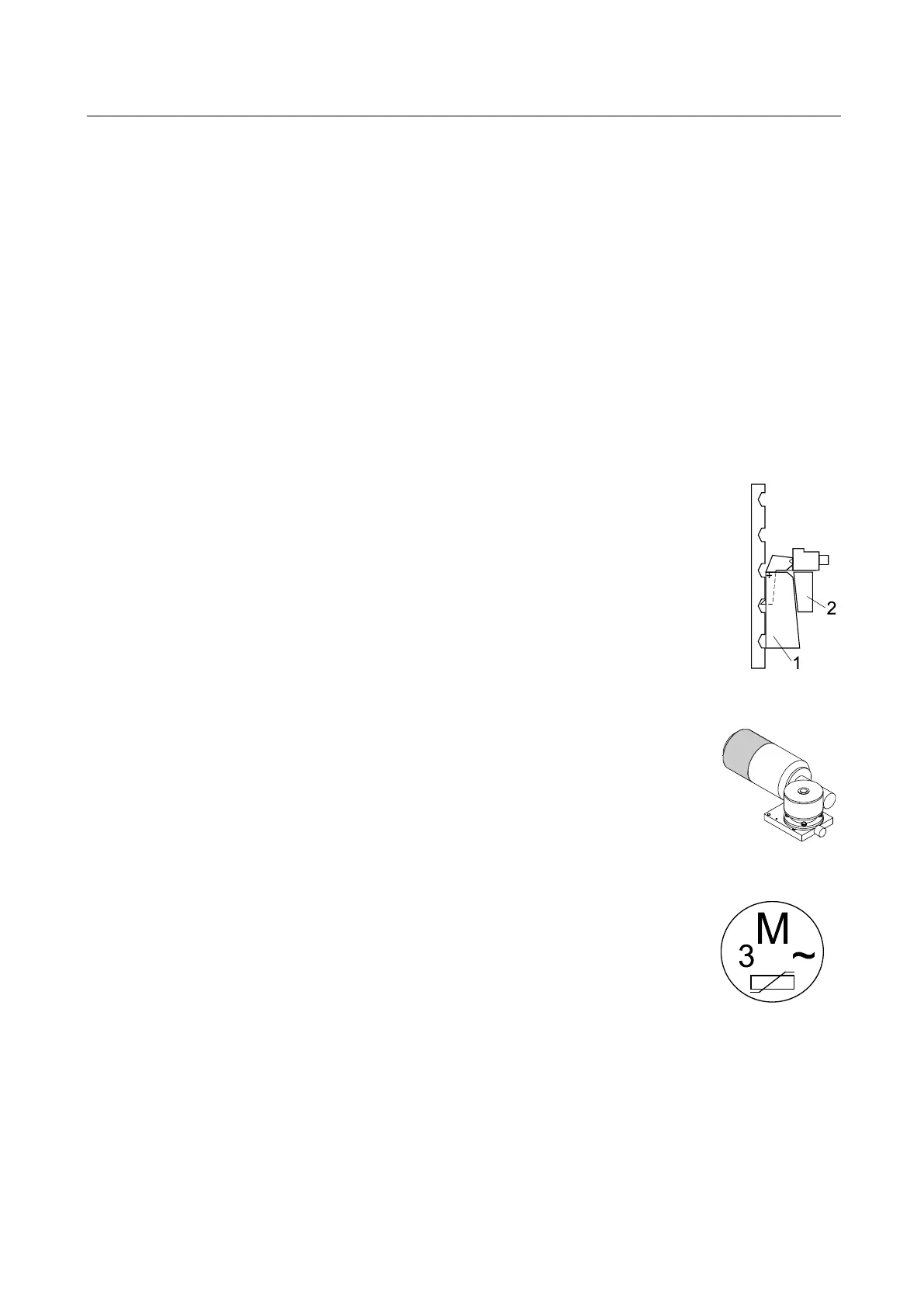

The locking device serves to prevent inadvertent lowering motions caused by gear,
load nut or lifting screw failure. The carriage is blocked by safety wedge (1) and
counterwedge (2).
1.11.2
Braking Motor
The motors are equipped with AC spring pressure brakes. Once the motors
are switched off, the brakes prevent any further movements.
1.11.3
Thermal Overload Protection
Overload protection via electronically monitored thermoswitches.
1.11.4
Safety Shutdown after Motor Overload
The motor load is permanently monitored by the control PCB. If an overload of
≥ 15 %
occurs, the
system will switch off automatically. In this case the lift cannot be raised any more, but it can be
normally lowered to bottom position.
1.11.5
Warning and Information Labels
Do not change or remove the warning and information labels. Order replacement for defective
labels.
