Greasing the Support Bearing of the Lifting Screw and the Moving Gear

Pos: 1 05 /Te chnis che Dok umen tation/ All e Ger äte/I nha lte/I nfo!/I nha lt: Inf o - W artungs interva ll: 6 M onate @ 10\mod_1218714013958_75.docx @ 238417 @ @ 1



Maintenance interval: 6 months

Pos: 106 /Tech nische D okumen tation/H ebete chnik/ 49 Rad greifer -Hebeb ühne n/1 201 MC L/BA/ In halt: 4912 H ubs pinde l+Fa hrges tel l schm iere n (B ilder) MCL/ RGB @ 1 5\mod_1245306712271_0.docx @ 390808 @ @ 1

Pos: 107 /Tech nische D okumen tation/H ebete chnik/ 49 Rad greifer -Hebeb ühne n/1 201 MC L/BA/ In halt: 4912 H ubs pinde l+Fa hrges tel l schm iere n (Tex t) MC L/ RGB @ 15\mod_1245306700448_75.docx @ 390777 @ @ 1

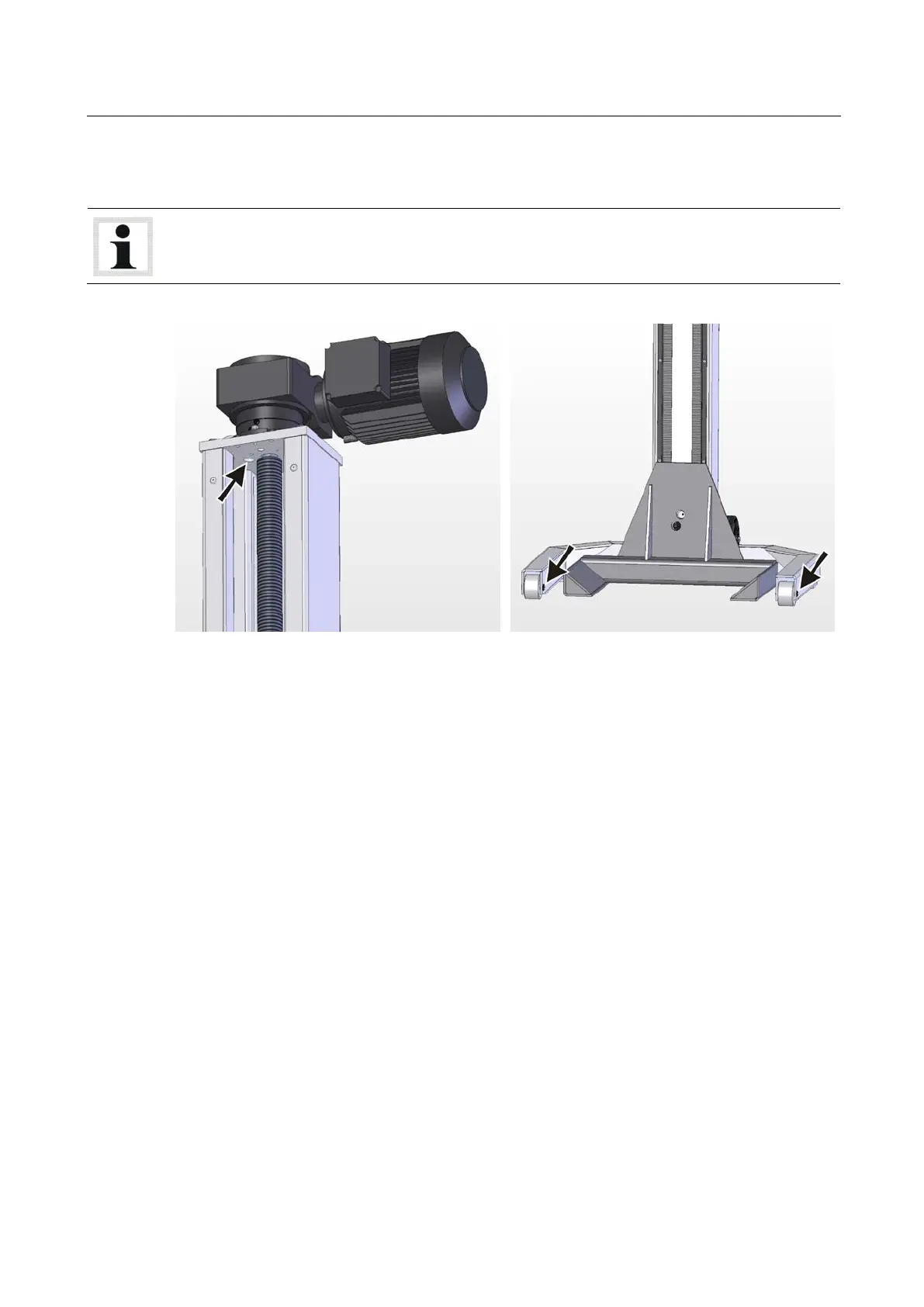

1 Remove the lifting screw cover.

2 Lubricate the support bearing through the

lubricating nipple (large opening, arrow) using

a grease gun.

3 After lubricating reinstall the lifting screw

cover.

• Periodically oil the rollers of the moving gear.

If they are equipped with lubricating nipples,

lubricate using a grease gun.
