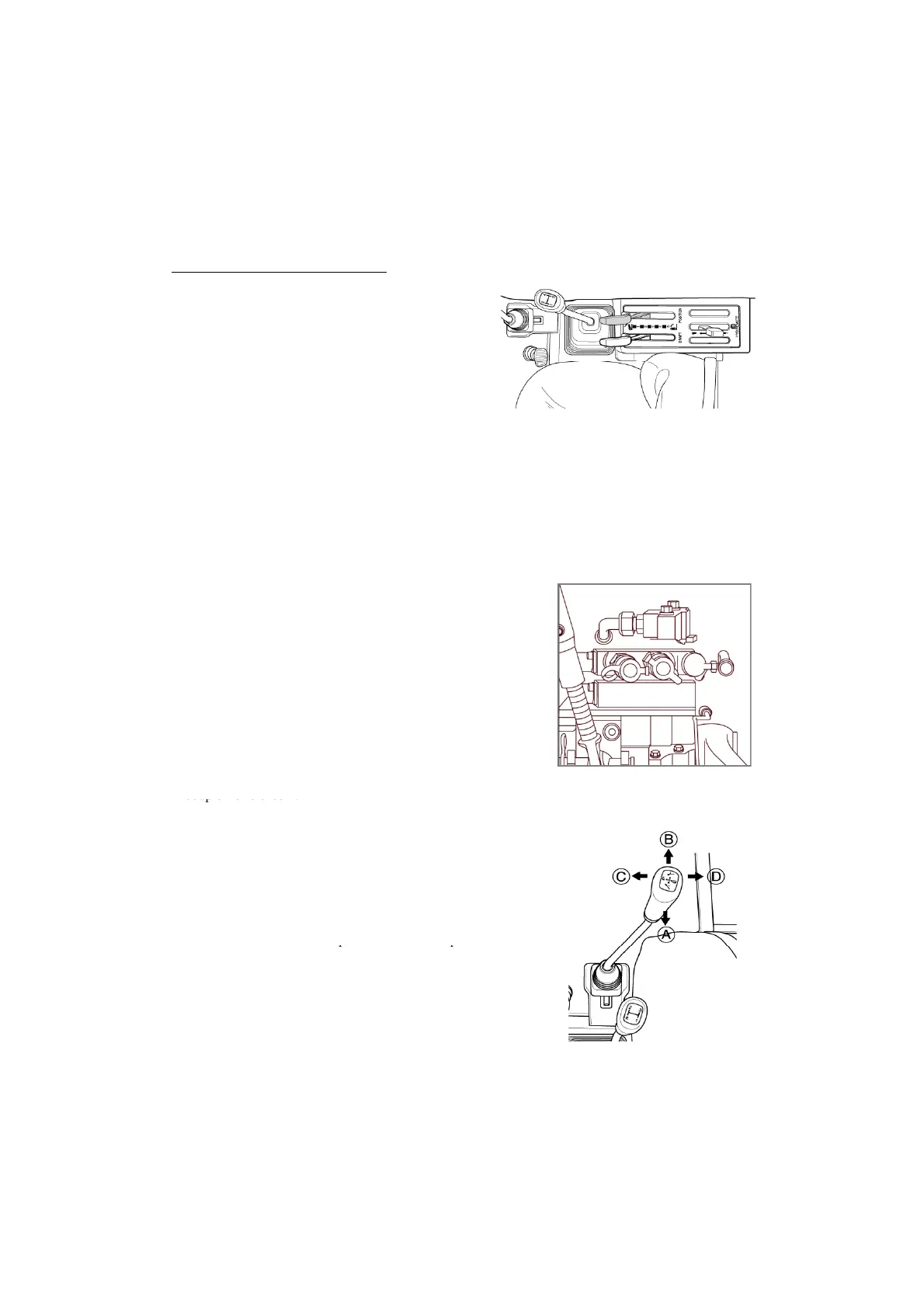

EXTERIOR HYDRAULIC LEVER
Move the lever up or down and hold. This will raise or
lower the implement (rotavator or hydraulic plow).
Detent type – Double-acting with Detent
Important:
-Do not hold the lever in the “pull” or “Push” position
once the remote cylinder has reached the end of the
stroke,. as this will cause oil to flow through the relief
valve. Forcing oil through the relief valve for extended
periods will overheat the oil.
-When Using the tractor hydraulic system to power
front loader, do not operate the boom and bucket
cylinders simultaneously.
► REMOTE HYDRAULIC CONTROL VALVE COUPLER CONNECTING
AND DISCONNECTING.
■ Connecting
1.Clean both couplers.
2.Remove dust plugs.
3.Insert the implement coupler to the tractor hydraulic coupler
4.Pull the implement coupler slightly to make sure couplers are
firmly connected.
■ Disconnecting
1.Lower the implement first to the ground to release hydraulic
pressure in the hoses.
2.Clean the couplers.
3.Relieve pressure by moving hydraulic control levers with
the engine shut off. Pull the hose straight from the hydraulic
coup
l
e
r t
o
r
e
l
e
a
se
it
.
coup e o e e se .
4.Clean oil and dust from the coupler, then replace the dust plugs.
► JOY STICK LEVER
This simple joystick lever can control the use of a front-end loader.
And lift-retract, dump-rollback smoothly and act as one handle lever.
To raise the front end loader :
p
ull the lever to lift
p
osition.
47
pp
To lower the front end loader : push the lever to retract position.
To rollback the bucket : pull the stick to rollback position.
To dump the bucket : push the stick to dump position.
