Mahindra 10 Series User Manual

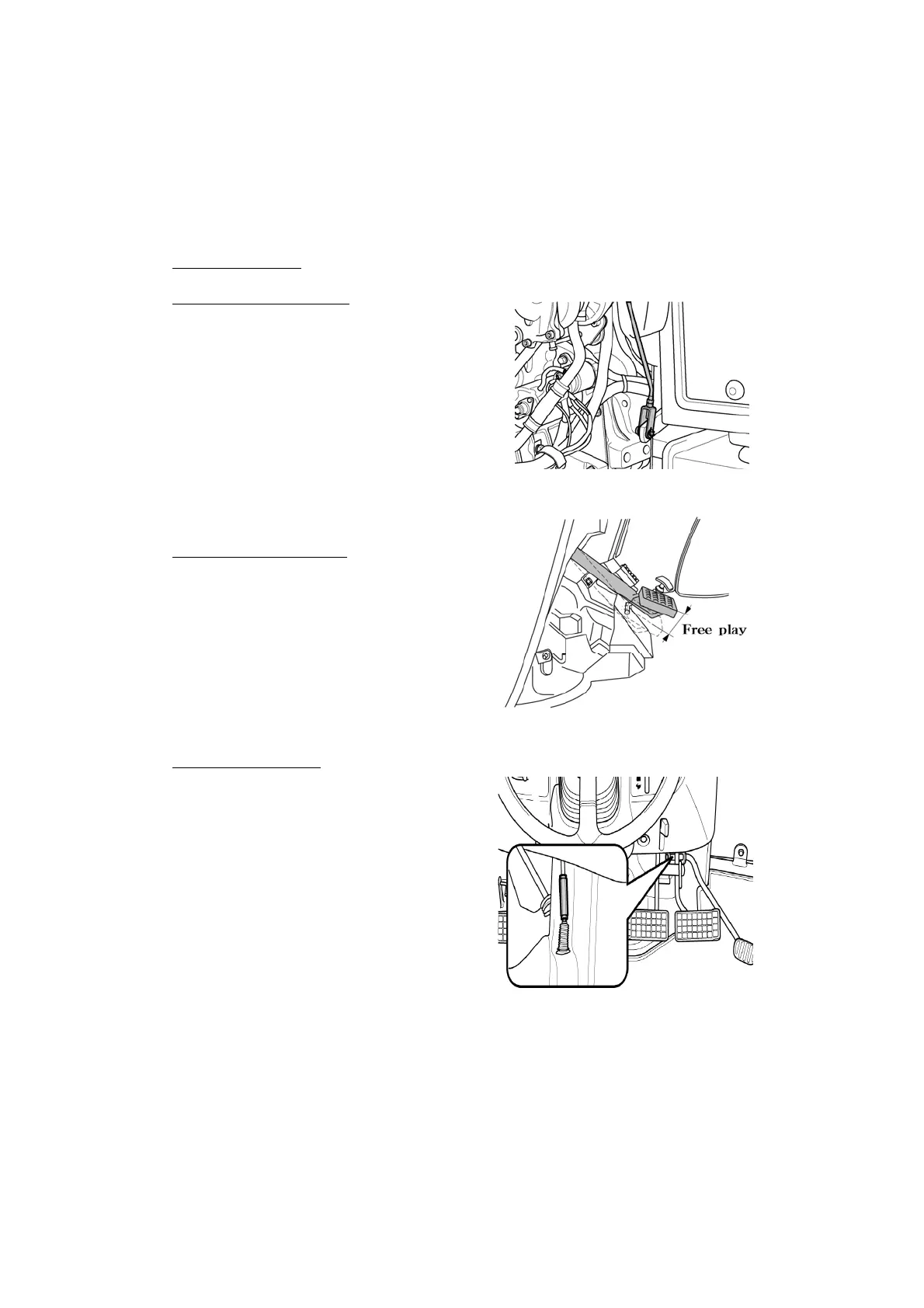

GAP ADJUSTMENT
ADJUSTING THE CLUTCH
Using the clutch over a period of time will increase the
free play.
Th t f l f th d l i 0 78 1 18 i
Th
e correc
t
f
ree p
l
ay o
f
th
e pe
d
a
l
i
s
0
.
78
~
1
.
18
i
n
To adjust, loosen the locknut on the turnbuckle and
adjust.
Check the adjustment and tighten the locknut if the
free play is correct.
ADJUSTING THE BRAKES
As is the case with the clutch, use of the brakes will
change the pedal free play and the balance between
the right and left pedal.
The correct pedal free play is 1 18
~
157in
The
correct
pedal
free
play
is
1
.
18
1
.
57
in
ADJUSTING METHOD
Loosen the locknuts to adjust the brake.
Turn counterclockwise to increase the free play, or
turn clockwise to decrease.
Tighten the locknut and confirm to fix the Nuts.
Check that the free play is correct and the same on both
pedals to ensure even braking.
