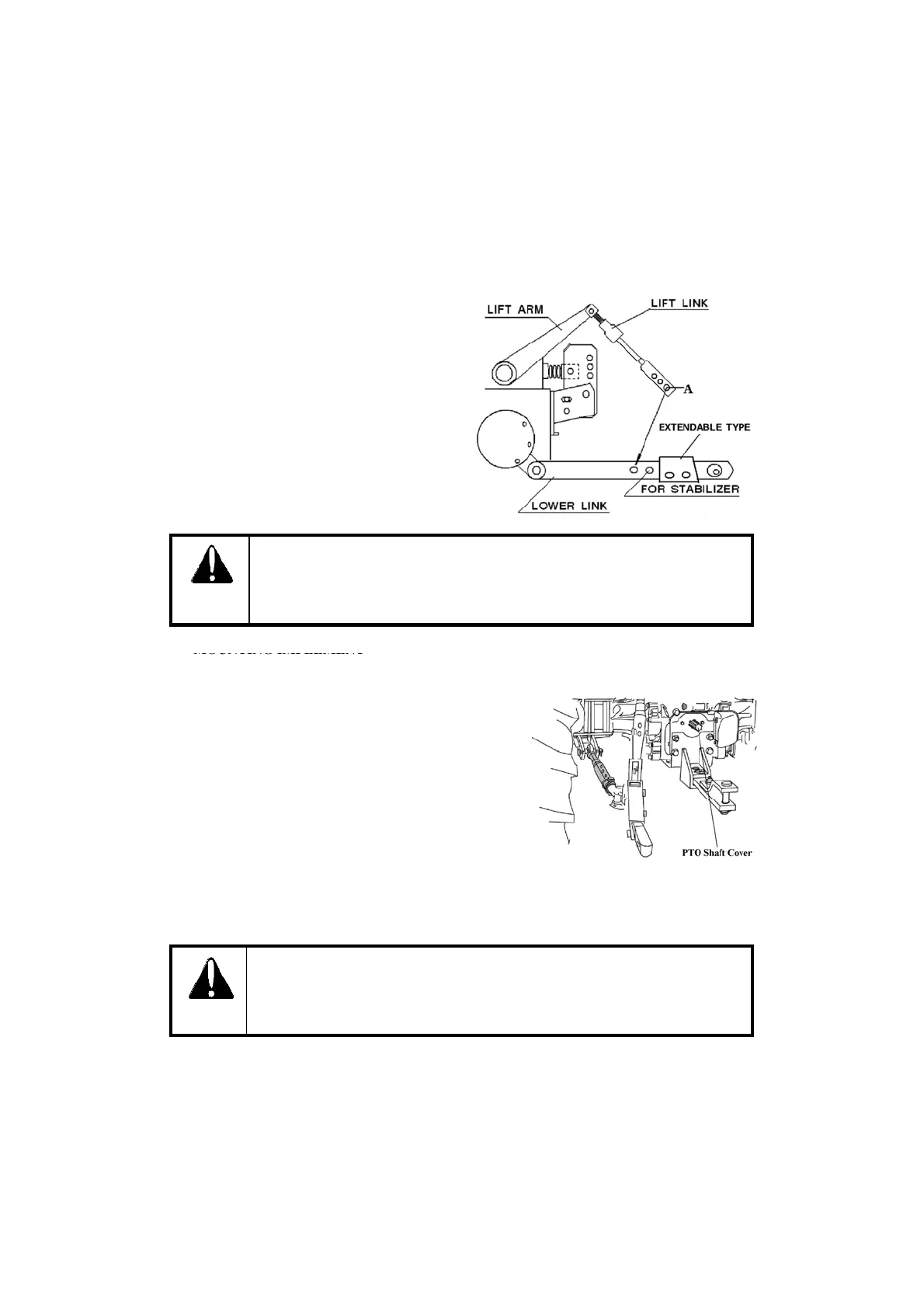

► ADJUSTMENT OF THE LIFT LINK ON THE LOWER LINK
For different applications change the position
of the lift rod on the lower links as shown and
insert the pin in the direction of the arrow.
Only use drawbar to tow and keep the 3 point linkage in raised position when
towing with the drawbar.
Position can create unbalance causing the Tractor to roll-over & Result in death
or serious injury.
Danger
►
If the PTO is used, remove the safety cover off the PTO shaft.
Adjust the yoke rod on the lower links to suit the implement in
use.
Attach the left lower link, then attach the right lower link
using the adjusting handle on the leveling box if required.
Attach the top link.
Att h th PTO h ft t th t t if d ki th t it
ac
e
s
a
o
e
rac
or
use
, ma
ng sure
a
is locked in place.
Adjust the check chains to suit the implement and tighten the
locknuts.
To remove an implement reverses the procedure
Do not attach a PTO shaft while the engine is running and ensure all safety shields
are in place.
Caution
