Mahindra 2810 Service Manual

(3) Range shifter (Speed range shift) mechanism
Note:
The bottom two tightening bolts should be coated
with an adhesive on their threads before being
tightened.

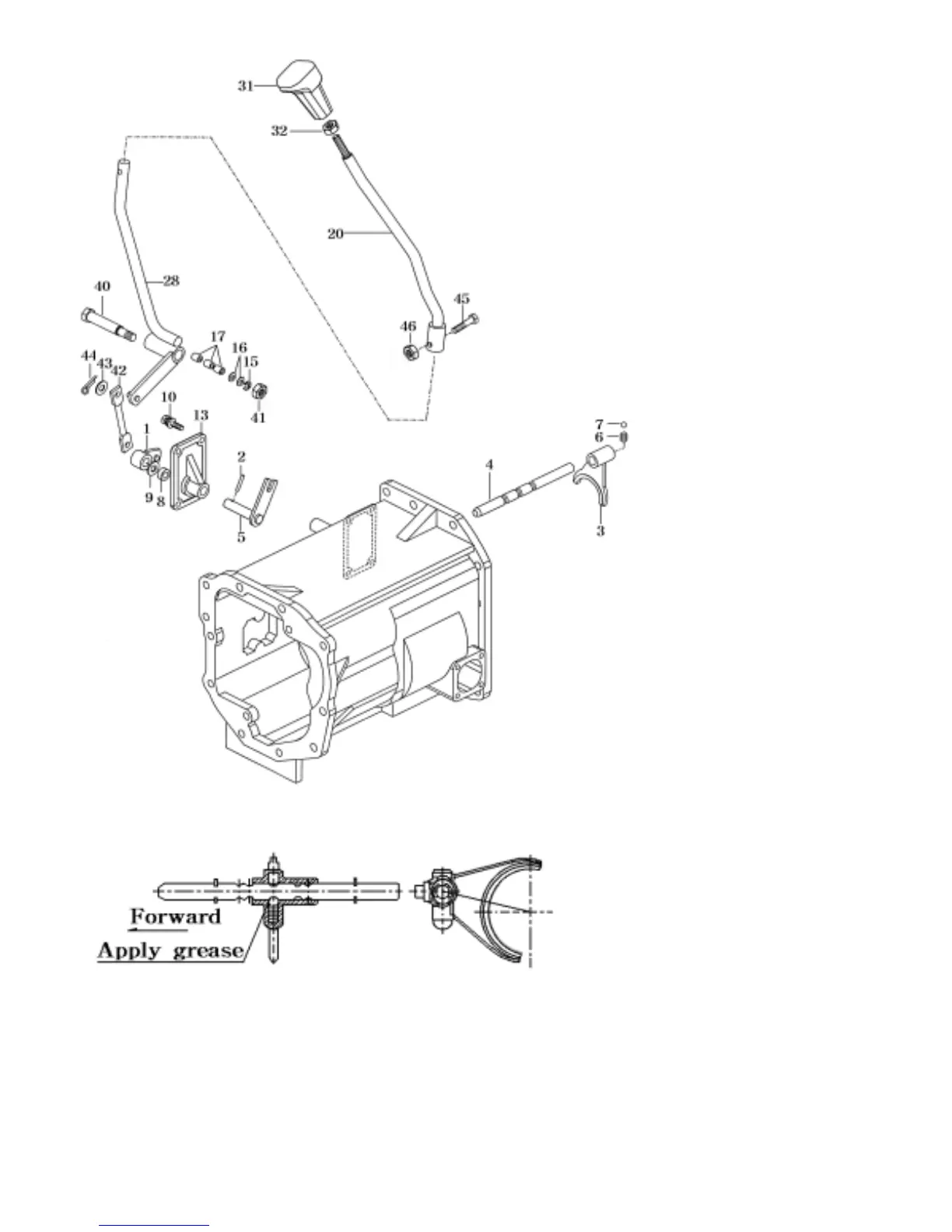

Fig.5-44
1.Arm(sub shift)
2.Pin taper
3.Fork(Sub shift)
4.Shift stay(Sub shift)
5.Hook
6.Shifter spring
7.Steel ball
8.Oil seal(D)
9.Washer
10.Bolt
13.Metal sub
15.E type stop ring
16.Shim(03X16X26)
17.Bush,chain guide
18.E type stop ring
20.Lever(Sub shift/upper)
28.Lever(Sub shift/lower)
31.Grip
32.Nut
40.Pin(100)
42.Rod
Fig.5-45
5-35
