3-2. Front gear case 2.

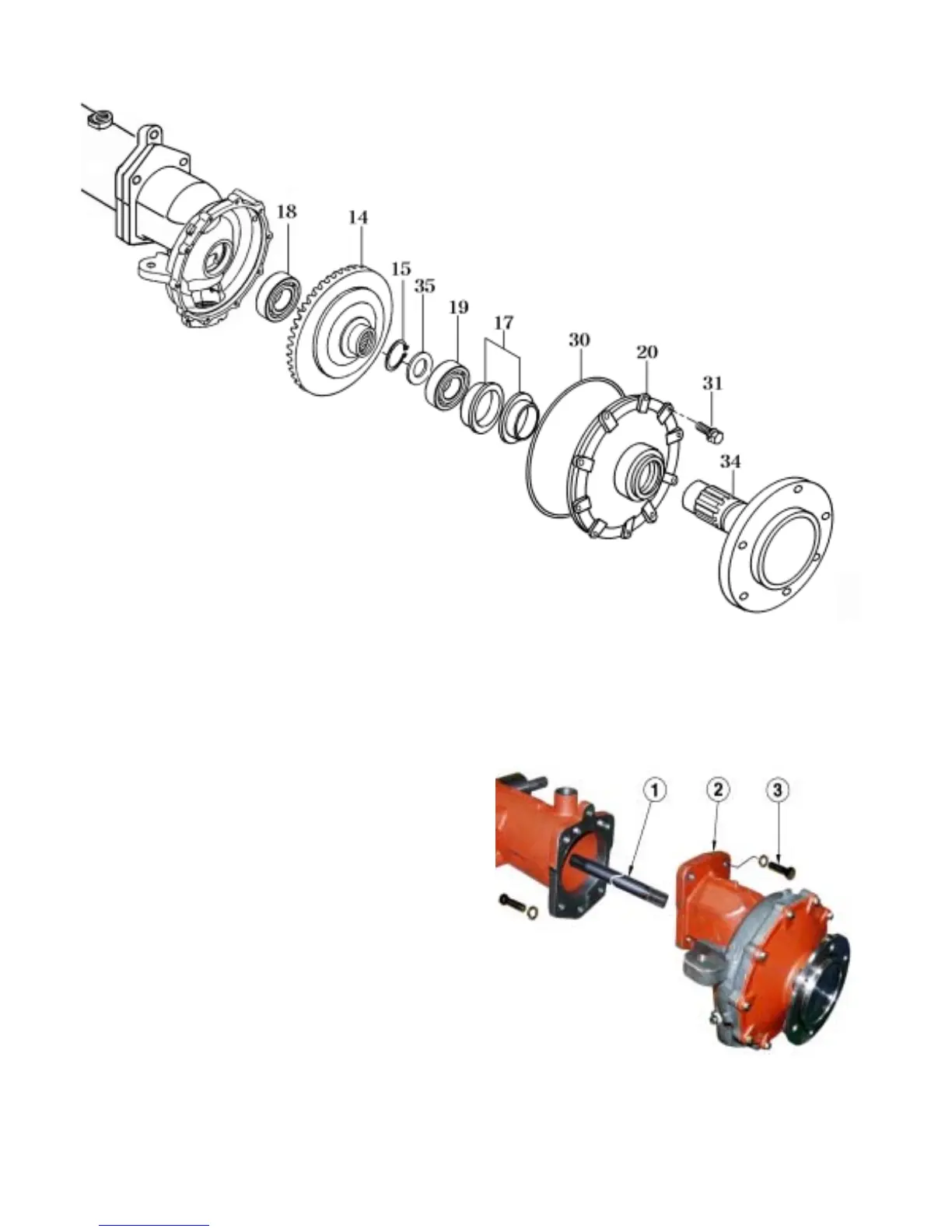

Fig.6-19
14.Gear bevel 38 15.Snap ring 17.Seal 18.Gear bevel 11 19.RBB(6210)
20.Cover wheel shaft 30.O-ring 31.Bolt 34.Shaft wheel 35.Washer(50X60X2)
3.1 Disassembly
1) Drain oil from the final case by removing the
drain plug.
2) Remove the tie rod or the tie rod end.
3) Remove the final drive case clamping bolts and
take out the assembly of the wheel shaft,
4) Remove the wheel shaft cover clamping bolts
and cap (90)
Note: Discard the removed Cap(90) and install a
new cap(90) when reassembled,because this
cap is apt to be damaged when removed.
5) Detach the snap ring C from the bevel gear.
6) Extract the wheel shaft bearing together with
the bevel gear,using a bearing puller
Fig.6-20
6-11
