Mahindra 2810 Service Manual

2. FRONT DIFFERENTIAL

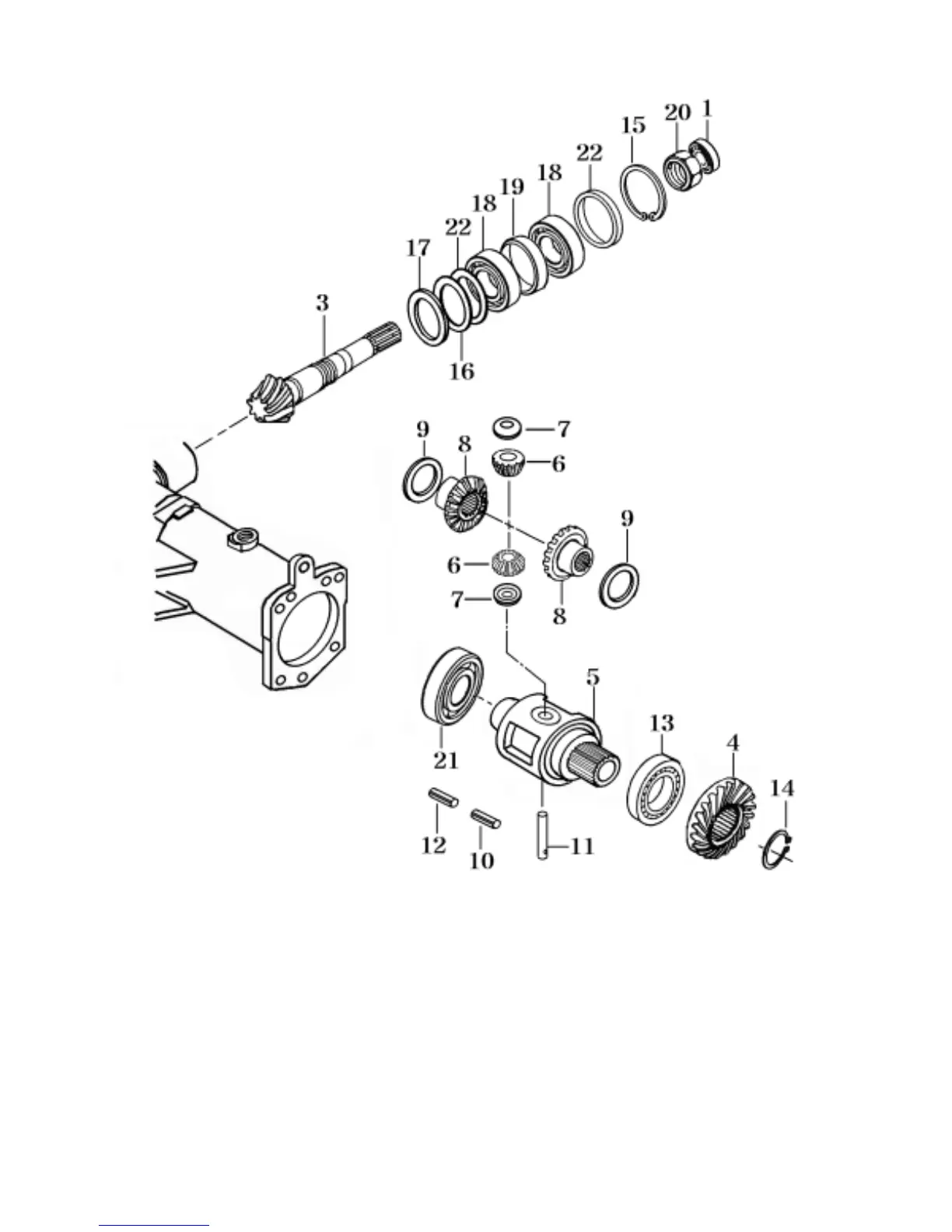

Fig.6-10
1.Oil seal 3.Pinion bevel 8T 4.Gear bevel 35T 5.Case front Diff 6.Pinion Diff (12)
7.Thrust collar 8.Gear diff side (20) 9.Washer thrust 10.Pin spring 11.Shaft diff pinion
12. Pin spring 13.Bearing Ball(6212) 14.Snap ring 15.Snap ring( hole) 16.Shim(A)
17.Shim(B) 18.Bearing taper roller 19.collar 20.Nut(M30) 21. Bearing ball(6211)
22.Shim
6-6

Mahindra 2810 Specifications

General

Engine Power	28 HP
Engine Cylinders	3
Drive	2WD
Engine Type	Diesel
Transmission	8 Forward + 2 Reverse
Steering Type	Manual
Clutch Type	Single
