SECTION 3. DISASSEMBLY,INSPECTION,AND REASSEMBLY
1. INPUT SHAFT AND REVERSE CHANGE GEARS (FRONT TRANSMISSION)

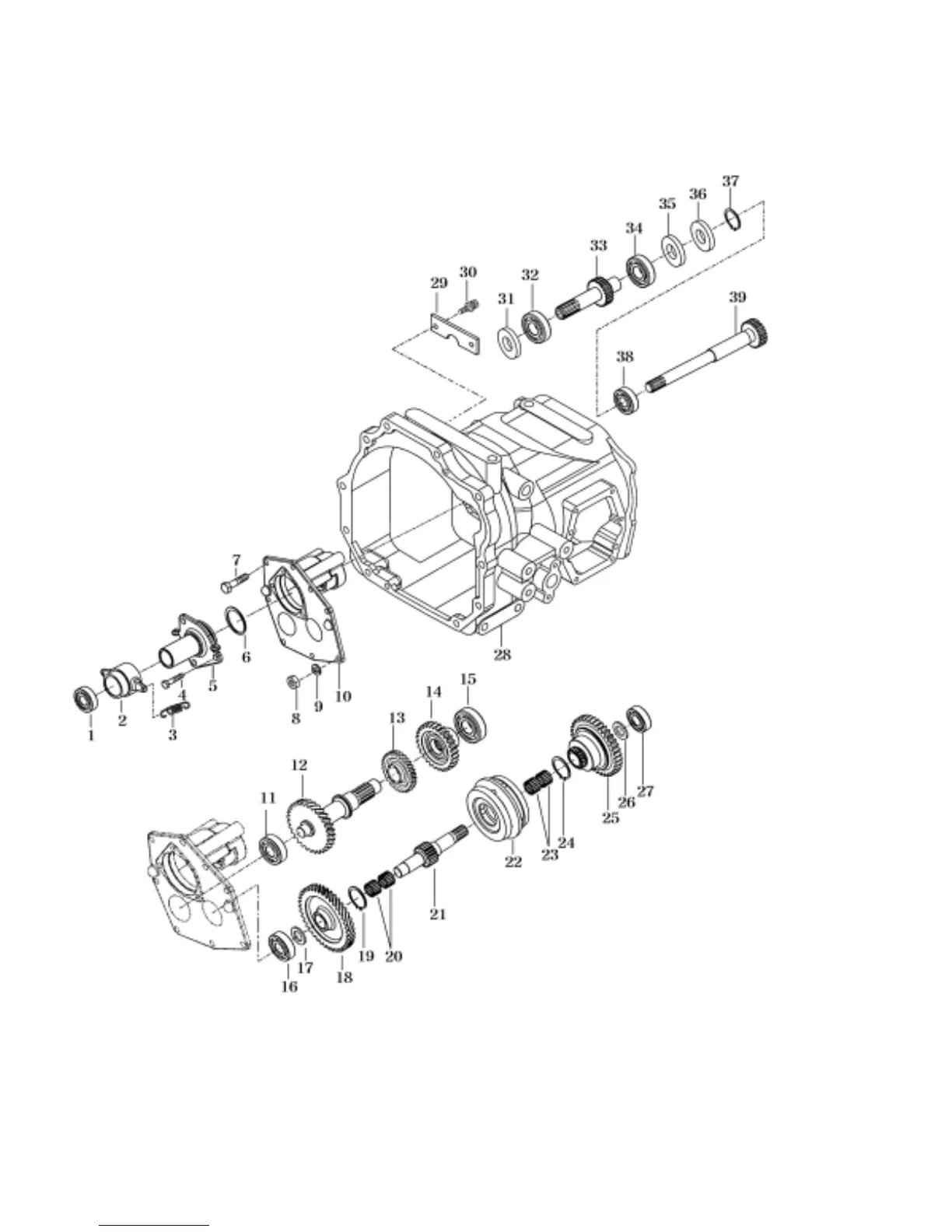

Fig.5-8
1.clutch release bearing
2.Sleeve
3.Spring,tension
4.Bolt(seal)
5.Metal sleeve
6.O-ring(G)
7.Bolt(seal)
8.Nut
9.Washer spring
10.Input metal
11.Ball bearing
12.Gear (helical/30)
13.Gear (helical/30)
14.Gear (helical/25)
15.Ball bearing
16.Ball bearing(HL1)
17.Washer(20X34X03)
18.Gear (helical/42)
19.Snap ring
20.Needle bearing
21.Shaft,shuttle(215)
22.Synchronizer
23.Needle bearing
24.Snap ring
25.Gear( helical/36)
26.Washer(20X34X03)
27.Ball bearing(HL1) 28.Front transmission case 29.Plate(1.25X90) 30. Seal bolt 31.Oil seal
32.Ball bearing(HL1) 33. Gear(helical/19) 34.Ball bearing 35.Oil seal 36.Oil seal(D) 37.Snap ring
38.Ball bearing 39.Gear (helical/19)
5-5
