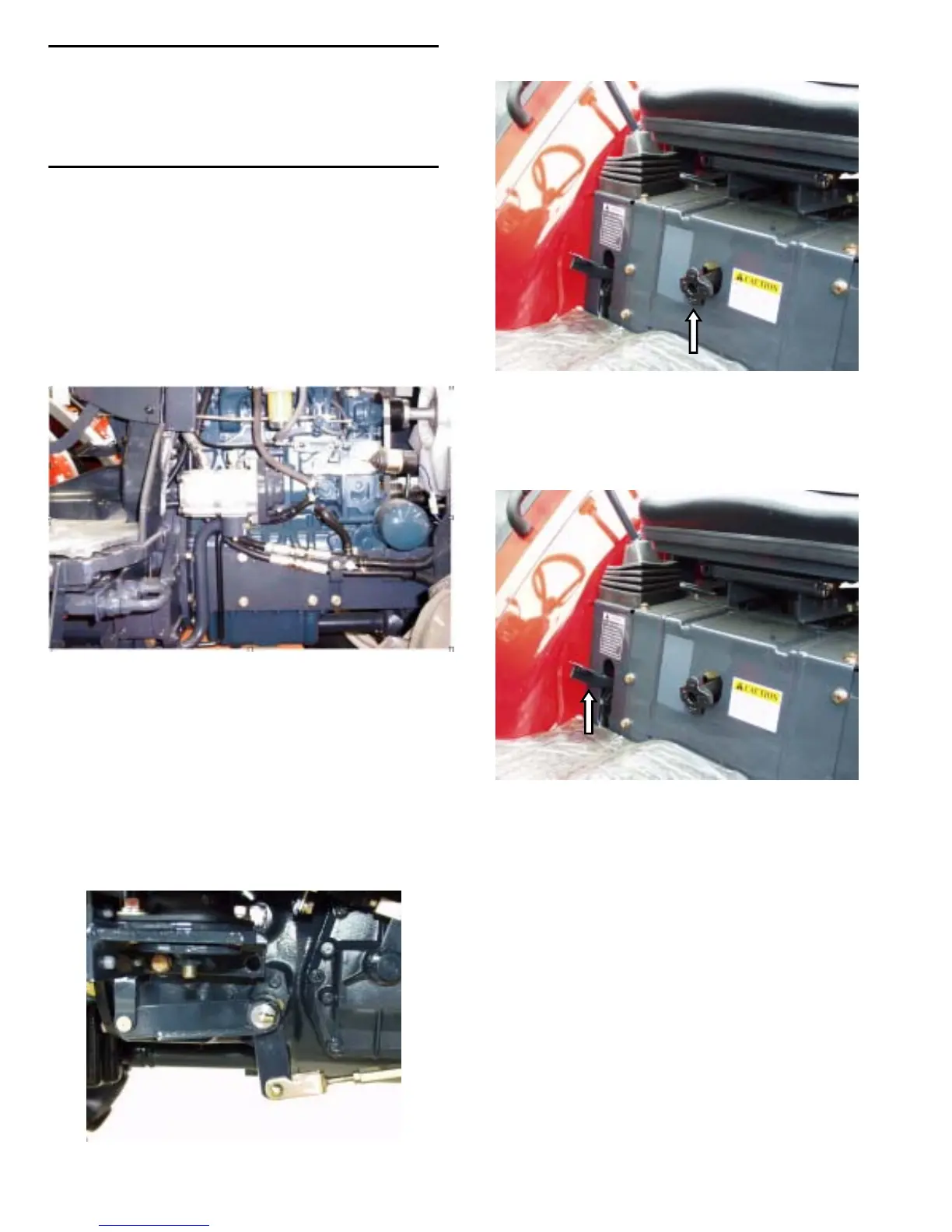

4.SEPARATION OF THE FRONT TRANSMISSION AND SPACER TRANSMISSION
7) Remove the slow-return check valve knob
Parts which can be inspected during This operation
-PTO clutch
-Linear shift gears and related parts
-Main change gears
Slow return check valve
1) Removal
A:Removal of the whole floor.
1) Remove the side covers(LH and RH).
2) Disconnect the negative battery cable.
3) Detach all the wiring relevant to the removal of
the floor.
FIG.2-23 Slow return check valve
8) Remove the diff-lock pedal
Remote Control Valve Lever
FIG.2-21
4) Disconnect the throttle lever cable from the fuel
injection pump and accelerator pedal cable from
the pedal.
5) Disconnect the clutch rod and brake rods under
the floor.
6) Disconnect the steering cylinder at the hydraulic
pump
FIG.2-25 Diff-lock pedal
Diff-lock pedal
2-10
