9) Remove the parking brake.
10) Remove the main shift and transmission range
shift levers.The levers can be separated in the
middle.
11) Remove the control rods of the PTO shift and
4WD shift levers from the transmission.
12) Remove the position control levers.

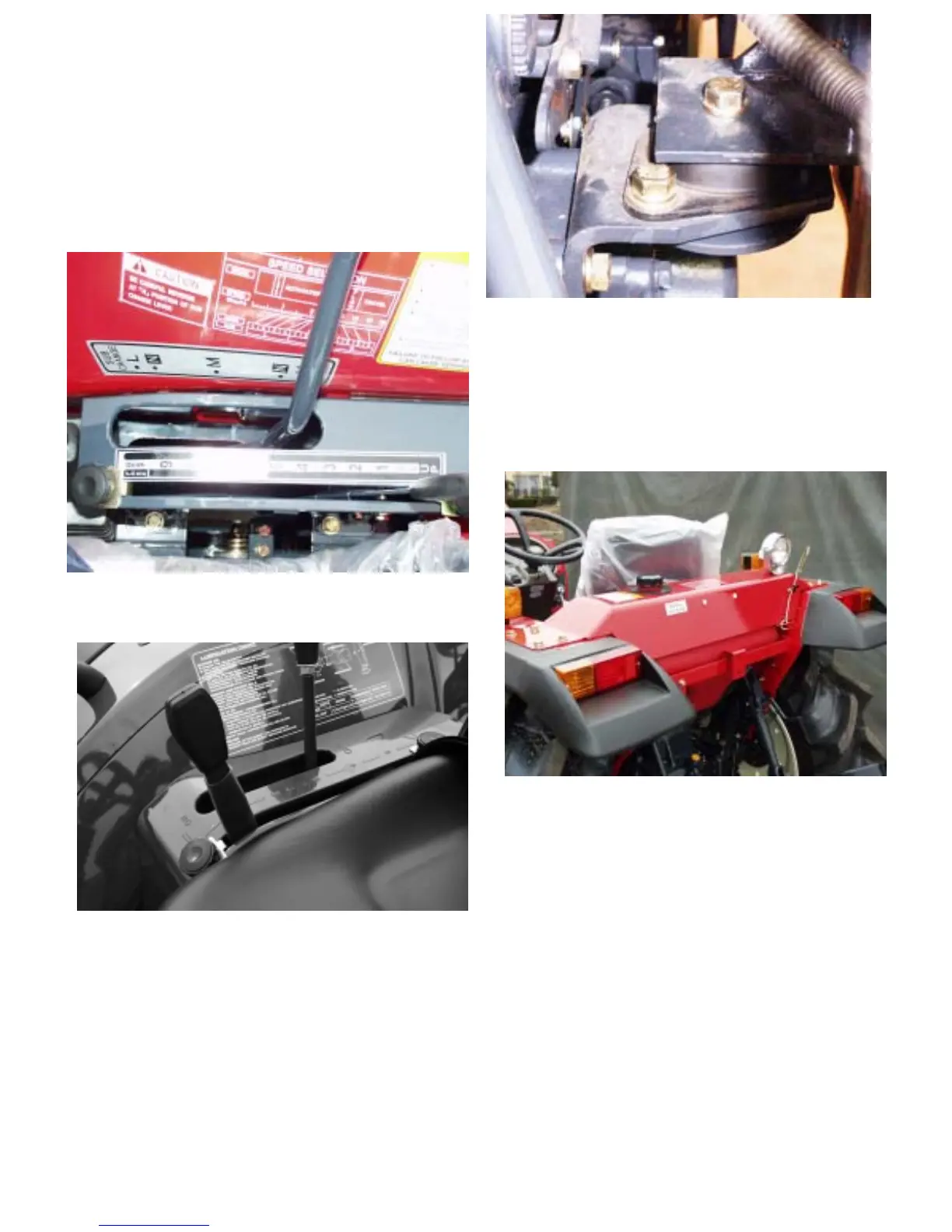

FIG.2-28 Rubber mounting
16) Lift up the floor slightly with a hoist.
17) Disconnect the linear shift control cable,
fuel hoses,and gauge coupler between the
fuel tank and floor.
FIG.2-26 Range shift lever
FIG.2-29
FIG.2-27 position control lever
13) When the tractor is equipped with an
optional remote control valve,remove the
remote control valve link.
14) Drain the fuel system of fuel.
15) Remove four rubber mounts.
2-11
