18) Lift the floor gradually taking care not to allow
the shaft of the slow return check valve and its
hole in the floor to interfere with each other.
Slow return check valve

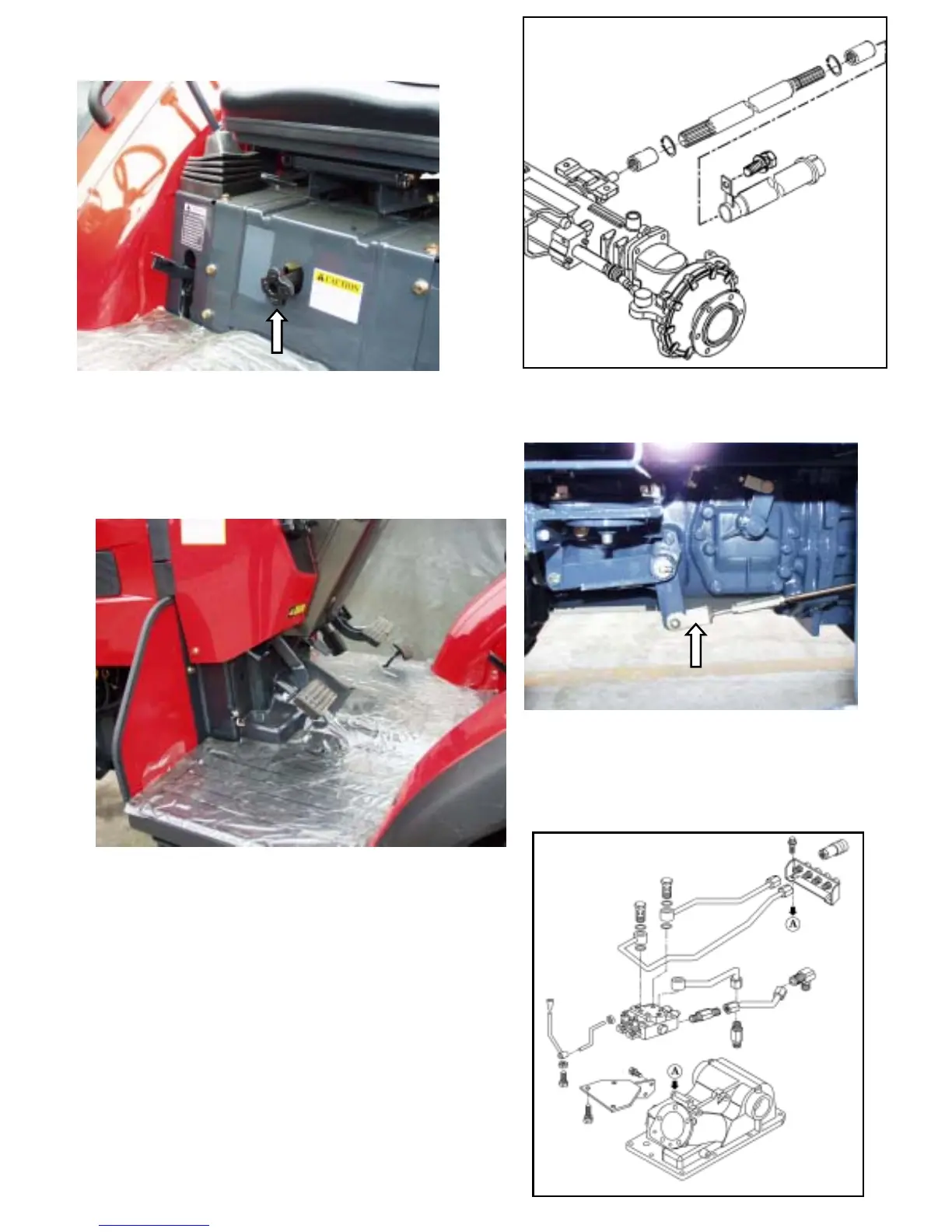

FIG.2-33 Front wheel drive
FIG.2-31 Slow return check valve
3) Disconnect the brake rods.
Slow return check valve
FIG.2-35 Optional
Note:
Lift up the floor gradually making sure that all
relevant wiring. Piping, and links are disconnected.
FIG.2-34 Brake rod.
4) When the tractor is equipped with an
optional remote control valve ,remove the
remote control piping.
FIG.2-32 Floor
B: Division of the chassis.
1) Drain the transmission of oil
2) Remove the front wheel drive shaft
2-12
