SECTION 4. REMOTE HYDRAULIC CONTROL (OPTIONAL)

-30 ～130℃Operating temperature range( ºC)

Less than 9A and B port leak(cc/min)

①under a load of 100kgf/㎠

② Oil temperature:50 ºC

145System pressure (kgf/㎠)(at 26 ℓ/min)

DONAX TD or RPM THF500Recommended fluid

400Maximum pressure(kgf/㎠)

26Maximum flow (ℓ/min)

1.Remote hydraulic control valve( OPTIONAL)

2.Remote control valve

3.Stay comp

5.Bolt

6.Bolt

8.Hose return

9.Adapter

10.Nut

11.Band

13.Adapter

14.Bolt

15.O-ring

16.O-ring

17.Stay

20.Bolt

30.Pipe

31.Union

33.Pipe,A1

34.Pipe,A2

35.Pipe,B1

36.Pipe,B2

38.Lever

39.Lever

40.Lever

41.Bolt

53.Label

55. Coupling

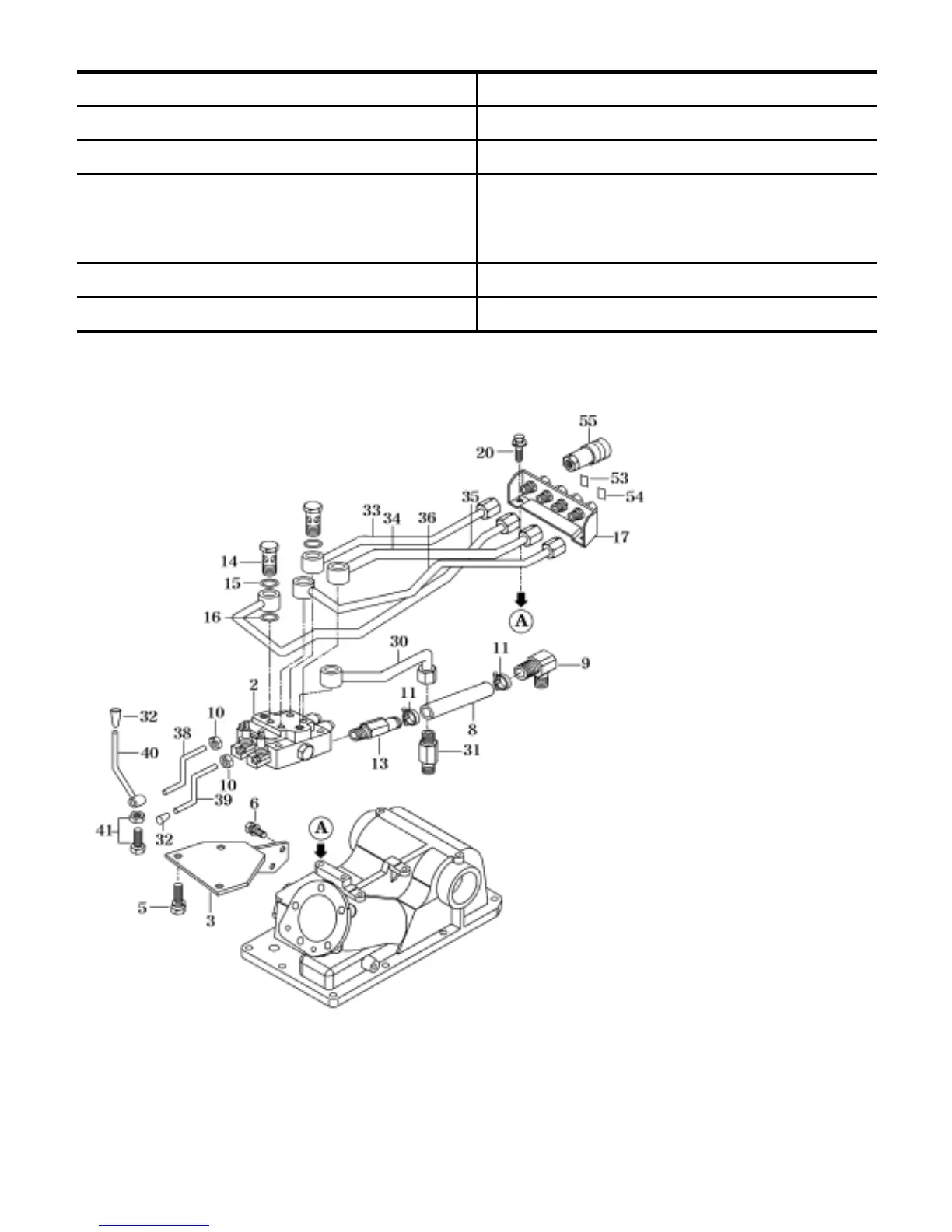

Fig. 9-32 Remote hydraulic pump
