Chapter 9 Hydraulic system
SECTION 1. GENERAL DESCRIPTION
The hydraulic system is composed of a gear pump,valves,oil filter,cylinder(actuator),piping,etc.The
implement lift is operated by a control valve which is actuated by the control lever through a link
mechanism.
ON and OFF of the PTO is controlled by a hydraulic,wet,multi-disc clutch whose circuit is opened and
closed by an electromagnetic valve in the flow-divider.

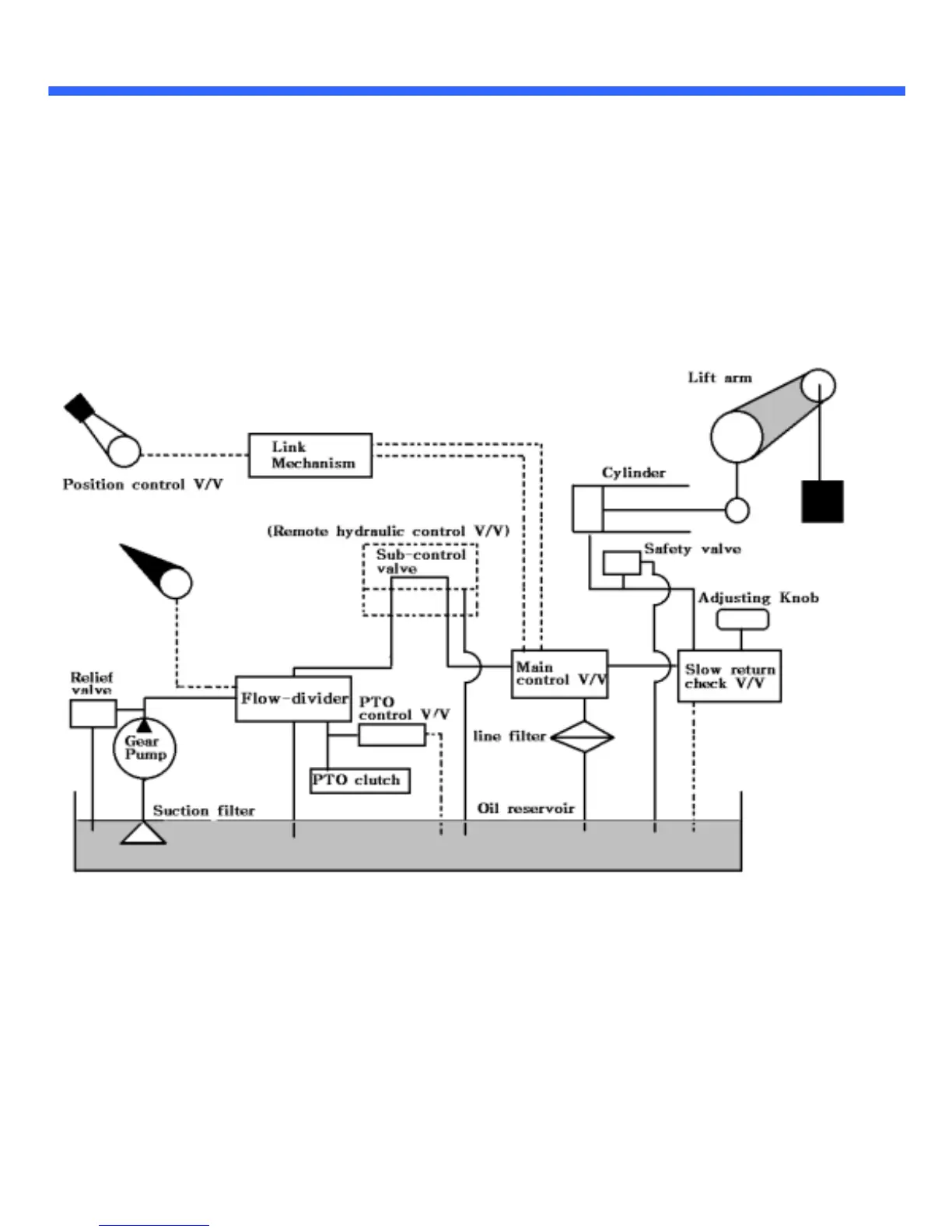

The construction and circuit of the hydraulic system are shown in Fig.9-1 and 9-2
Fig.9-1 hydraulic system construction
9-1
