6.SEPARATION OF THE REAR
TRANSMISSION AND REAR AXLE
HOUSING
(31) Install the rear wheels(LH and RH) and the
remained bolts.Then turn the rear wheels by
hand to move the rear transmission case away
from the spacer transmission case.
Parts which can be inspected during This operation
- Diff Lock
- Brakes
-Final gears
2) Installation
Reassemble in reverse order of disassembly.
Note:
•The 4WD drive shaft should be installed on the
rear transmission ahead of time.
(1) Join the rear and spacer transmission cases.
Note:
During the operation,be careful not to damage
needle bearings, the cut –away part in the gear
should be turned downward without fail so as to
clear the gear to be positioned underneath.
(2) Install the main change shifter link and each
change metal.
(3) install the brake rods and front drive shaft.
(4) Install the hydraulic piping.
(5) Install two rear rubber mounts.
(6) Install exterior parts.
(7) Fill the transmission case with oil
T290/T300/T330/2810NEW:32ℓ
1) Removal
As both sides can be disassembled in the same
way,only side with the diff-lock installed will be
explained here.
(1) Drain the transmission case of oil
(2) Lift up the rear transmission and remove the
rear wheel on the diff-lock side.

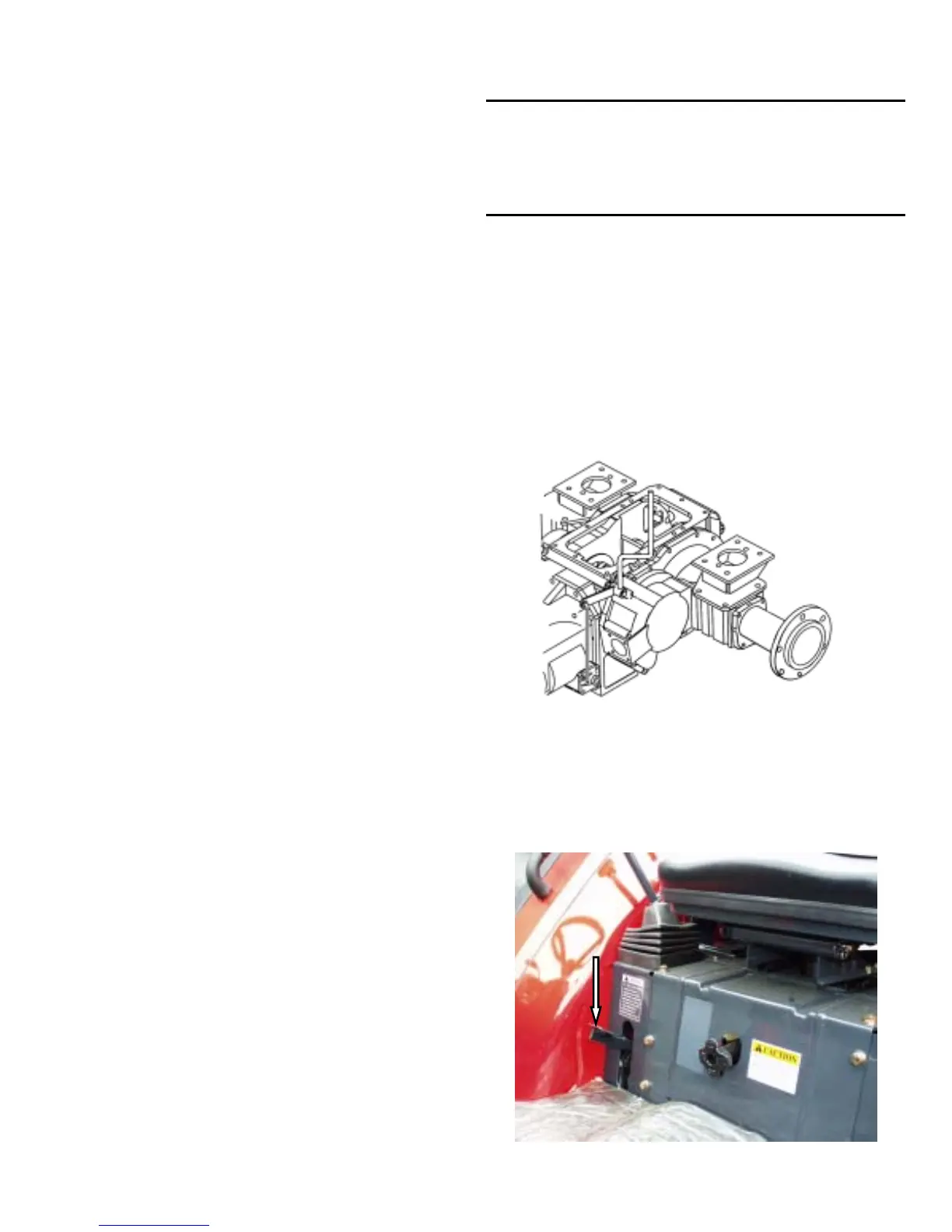

FIG.2-51 Rear wheel
(3) Remove the diff-lock pedal
Diff-lock pedal
FIG.2-52 Diff-lock pedal
2-16
