(20) Remove two rubber mounts.

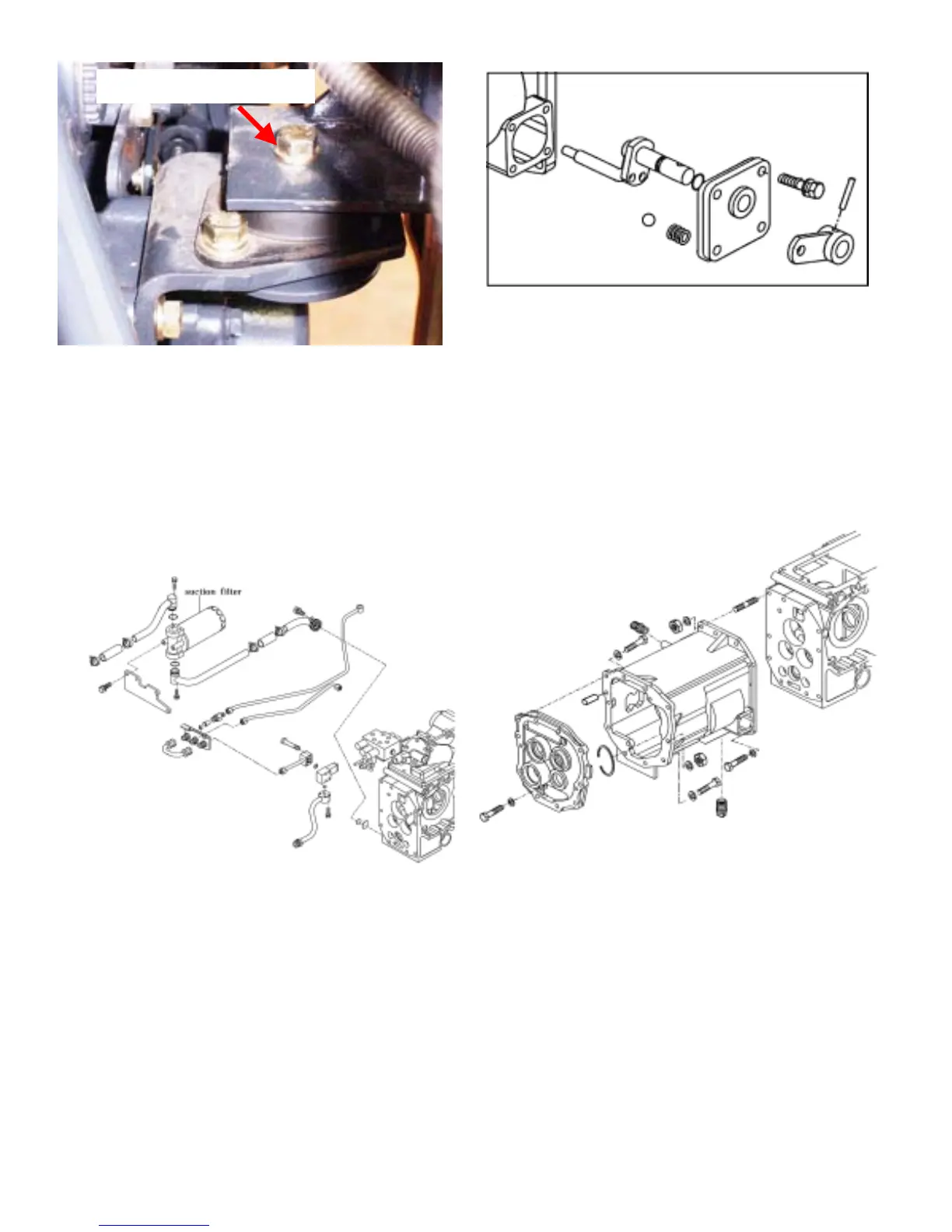

FIG.2-44 Frame rubber mounts.
Rubber mounting bolts
FIG.2-46 sub change metal
(29) Remove all the spacer-rear transmission
case tightening bolts and nuts except the
bottom bolt.
(21) Lift up the rear end of the floor/fender
assembly by about 10 mm,and place wood
between the spacer transmission case and floor
panel
(22) Drain the transmission of oil
(23) Remove the assembly of the remote control
valve and piping.
(24) Remove the suction and delivery pipe
(30) Install the rear wheels(LH and RH) and the
remained bolts.Then turn the rear wheels by
hand to move the rear transmission case away
from the spacer transmission case.
FIG.2-47 space transmission bolt
FIG.2-45 suction filter
(25) Remove the front wheel drive shaft
(26) Remove the brake rods.
(27) Remove the main change metal and
sub change metal(Support)
(28) Remove the 4WD shift metal
