2. LINKAGE (INTERNAL)
1)Before installing the linkage,apply grease to relayed drive parts.
2)Drive in the roll pin into the linkage pin through the rod and lock the pin with wire.
3)Be sure not to over operate within specified spool stroke(12mm between up and down at
neutral position)

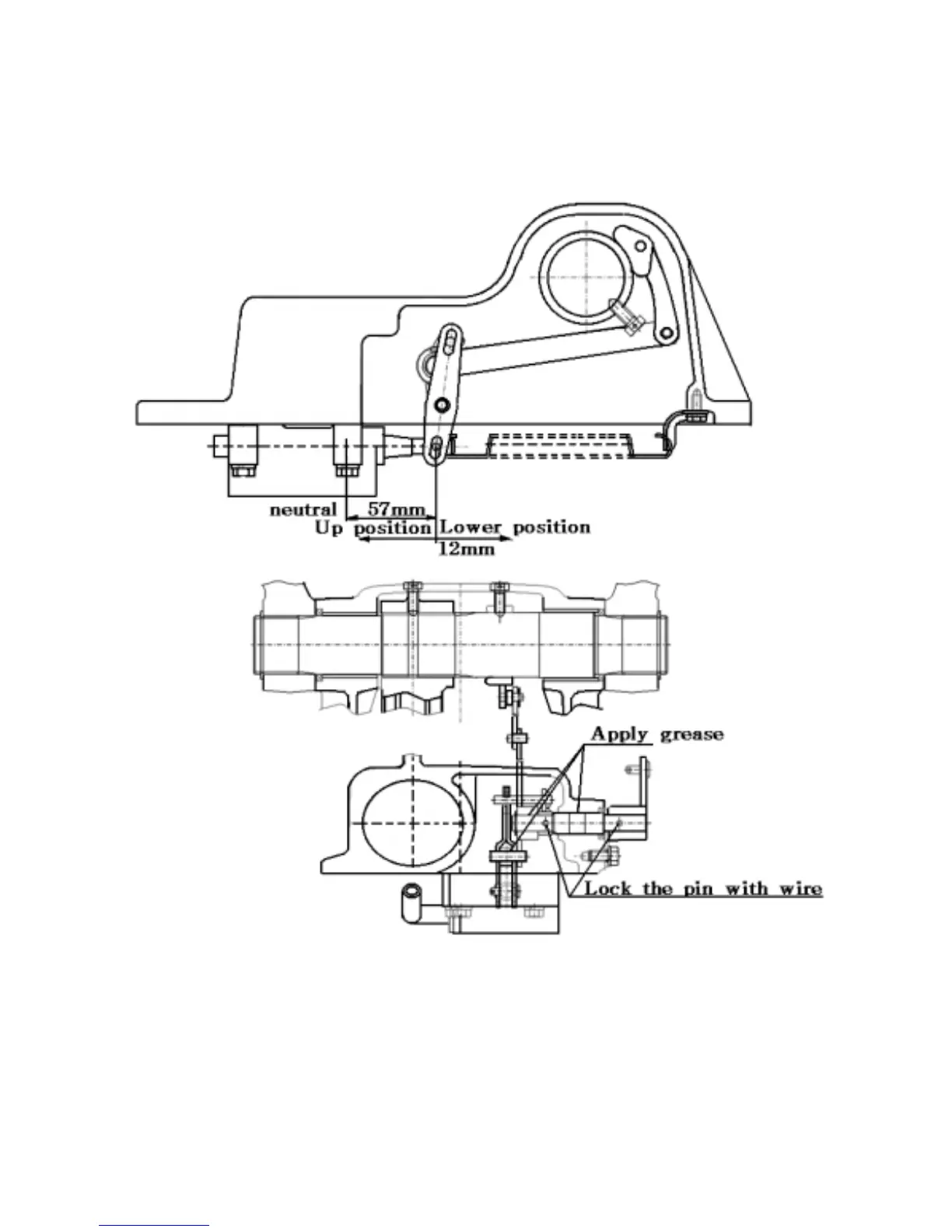

Fig.9-36 Linkage (internal)
