c. Pull out input gear(19T) rearwards.
d. Remove the sleeve metal tightening bolts
and take off sleeve metal.
e. Draw PTO drive gear forwards.
f. Pull out main change shaft firstly,and remove
counter shaft and PTO shaft.
1.1 DISASSEMBLY
(1)Removal of input shaft and related parts
separate the engine from the front transmission
referring to the paragraph 3.(1) of SECTION 4.
SEPARATION OF MAJOR COMPONENT in
Chapter 2.
a. Remove input metal as an assembly using
two push bolts(M8X2)
Note:
Be sure to screw in the bolts evenly

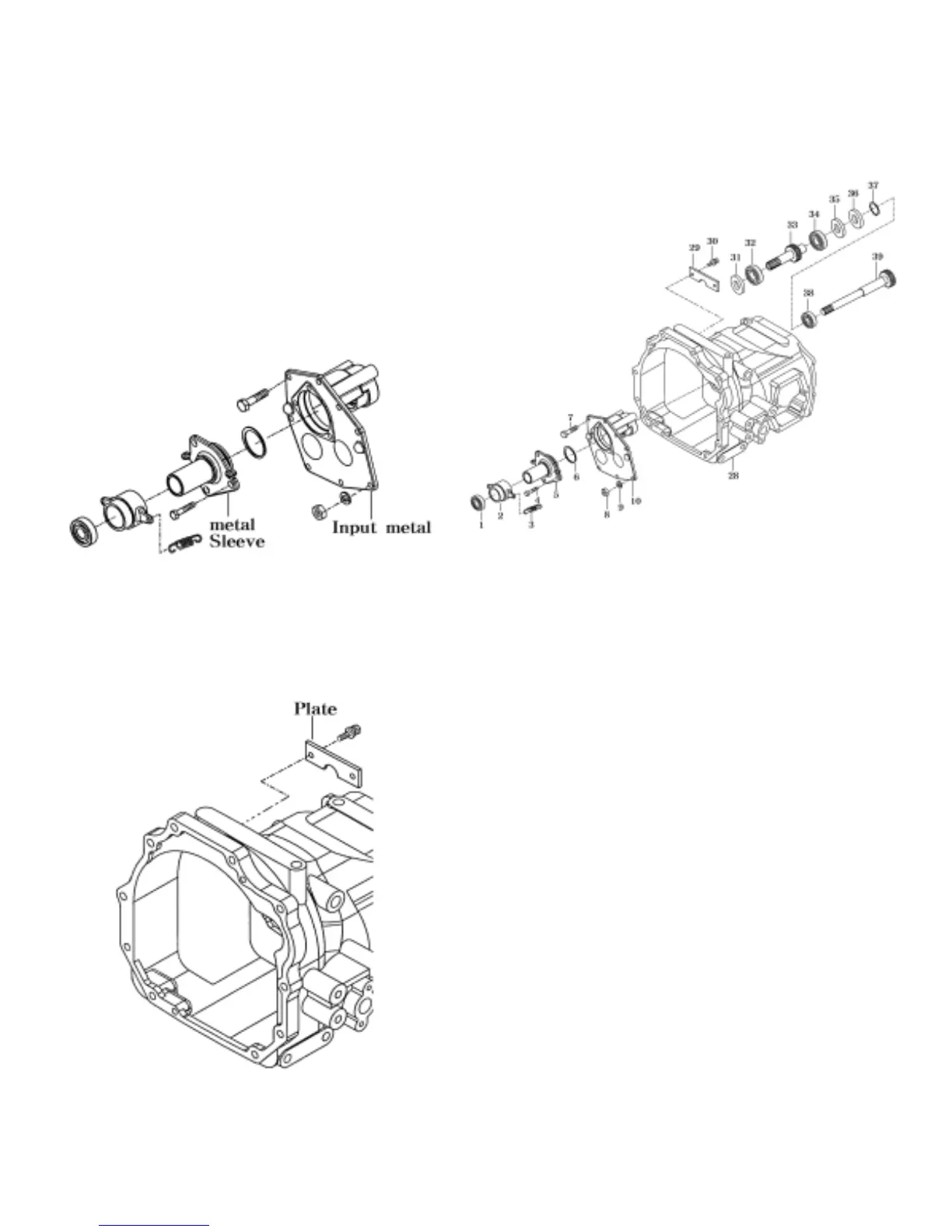

Fig.5-11
Fig.5-9 Input metal and related parts
b. Remove plate.(The tightening bolts are applied
with adhesive on their threads.)
Fig.5-10 Plate
