5-2 PRECAUTIONS FOR DISASSEMBLY,
INSPECTION,AND ASSEMBLY
(1) Disassembly
When drawing a shifter stay from its shifter,be
careful not to lose the steel ball.It can jump out of
the shifter.
(2) Inspection
-Shifter –disengaging load:
Main change and sub change:18-22 Kgf (40-49lbs)
4WD change:25-29 kgf (55-64 lbs)
-Usable limit of shifter-disengaging load:
Main change & Sub-change:17 Kgf (38lbs)
4WD change: 24Kgf( 53lbs)
-Wearing limit of each shifter: 0.5 mm (0.02 in)
(3) Reassembly
a.lubricate the grooves in the shifters.
b.Each shifter should be installed in the correct
direction.
c. When installing the shifter on the shifter
stay,Use the special tool as shown in Fig.5-56

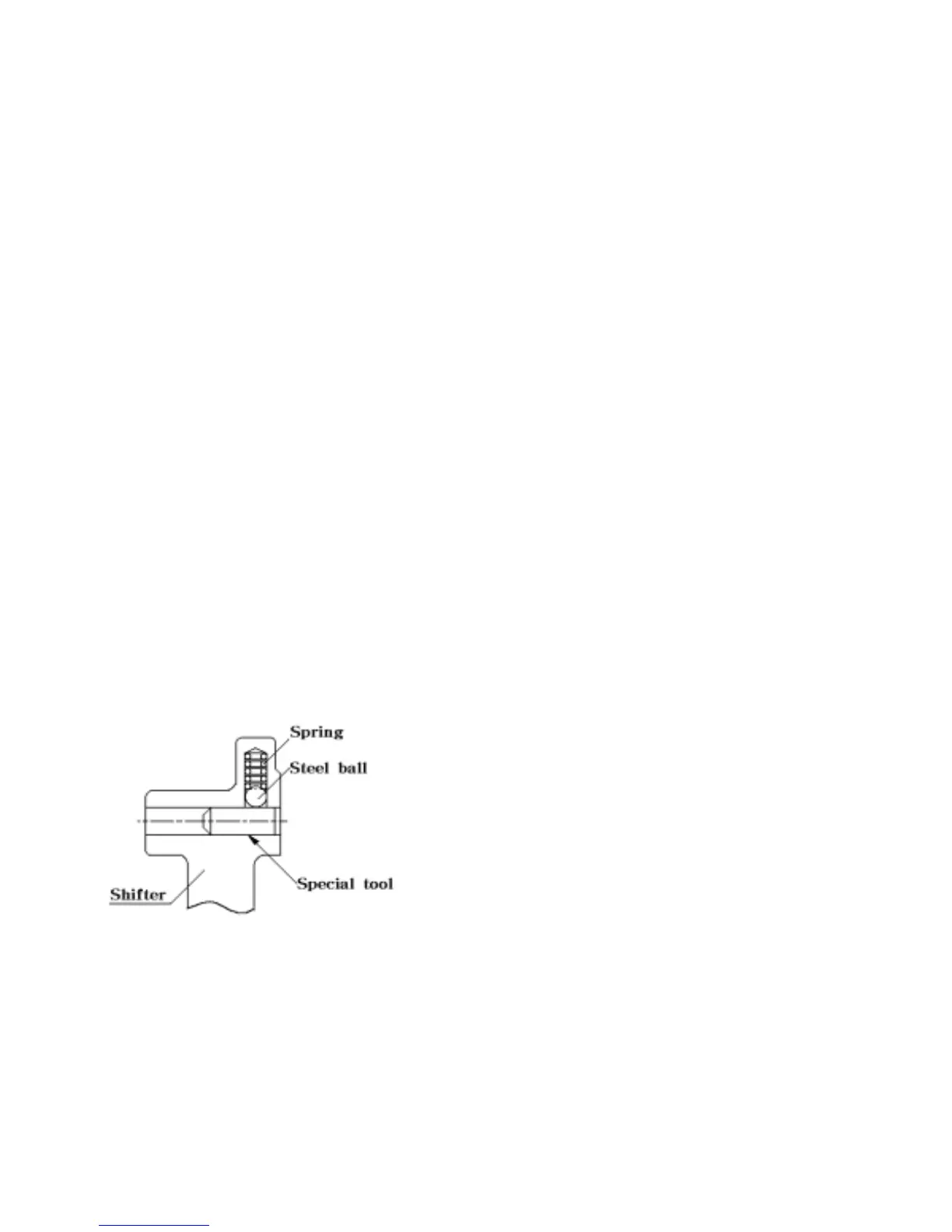

Fig.5-56
5-41
