2) Lifting position
As main spool is moved to lifting position pump
pressure is increased and open the check
valve(511,531).The lift arm moved to lifting
position by flowing to cylinder and operate
piston.

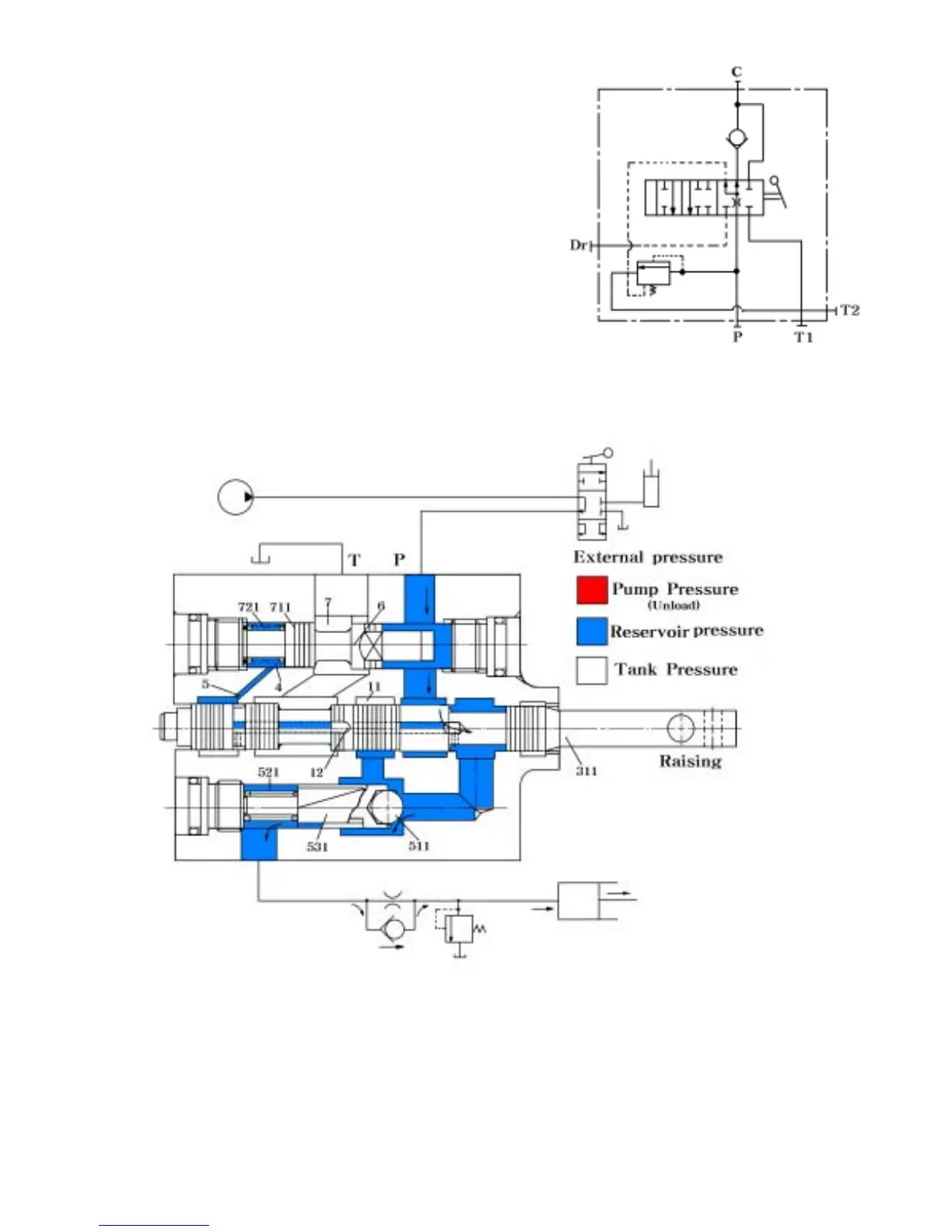

Circuit diagram in the lifting position
Fig.9-44
9-22
