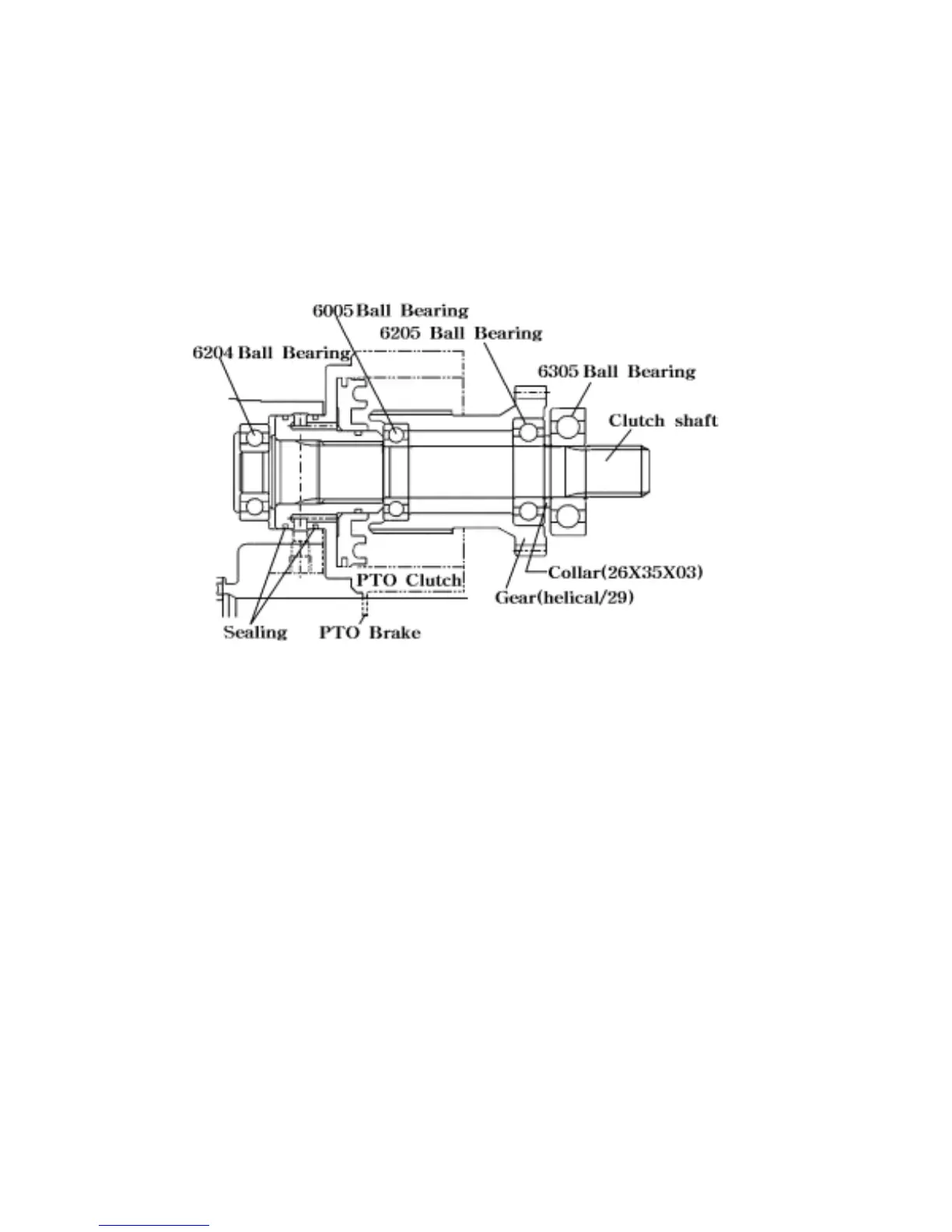

(4) installation of PTO shaft
① Pay attention to the direction of installation and check to see all the parts turns smoothly.
② When pushing the RBB's(6205 and 6005)into the gear,be careful only to push their outer races.
④ When installing the PTO clutch assembly,Apply a thin coat of grease to the seal rings and
install it taking care not to damage these rings.
⑤ When installing seal rings,apply fresh oil ahead of time and install them carefully so as not
to damage them.
⑥ PTO brake disc should be assembled to the groove of front transmission case.
Fig.5-15
(1) When pushing the RBB’s (6205)in to the gear,be careful only to push their inner races.
(2) Pay attention to the direction of installation and check to see all the parts turns smoothly.
5-11
