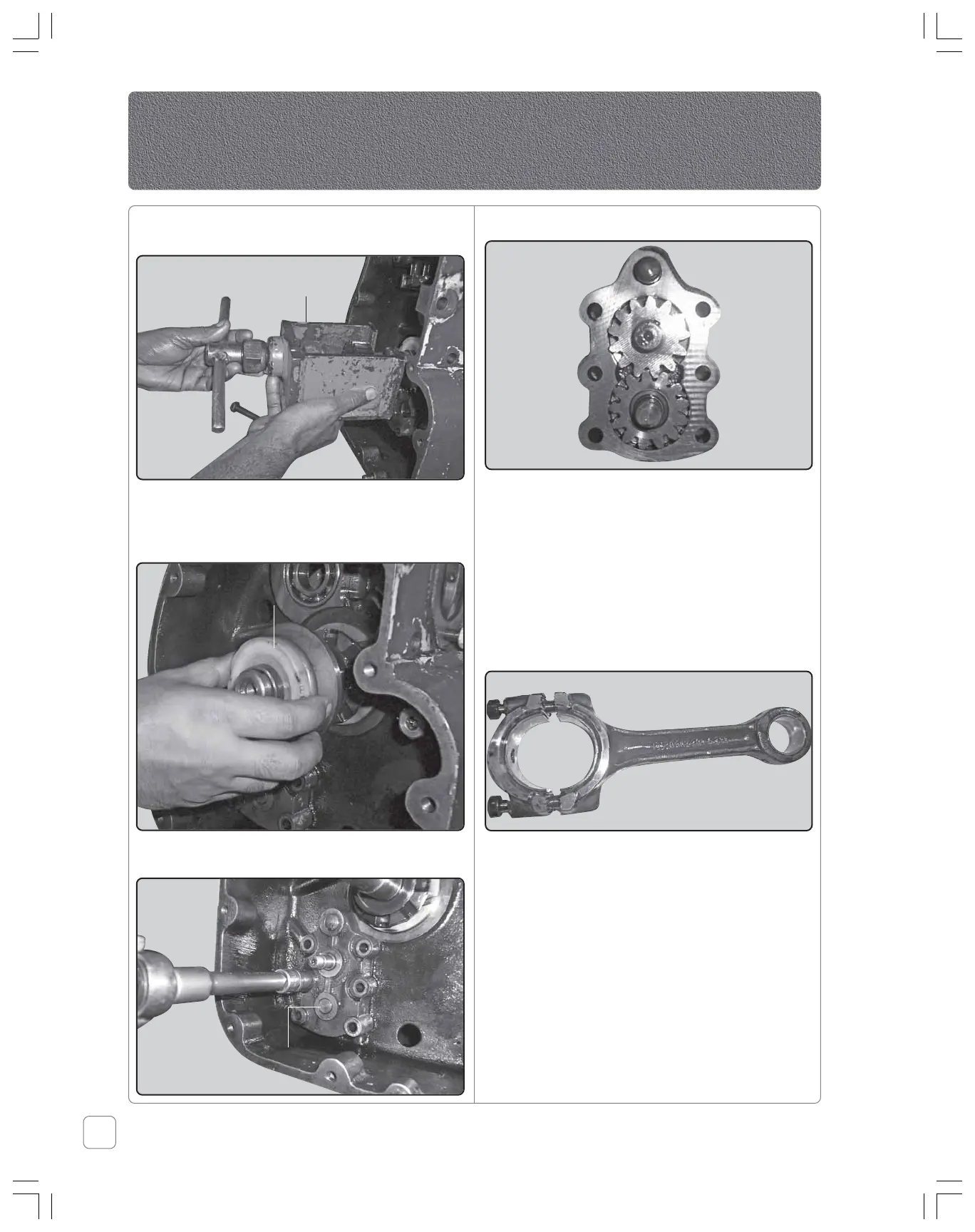

71 Remove the crank gear with the help of
puller (SST MST-H1-EN- ).
72 Remove the ball hub & disc of the ball hub
with the help of the puller.
73 Remove the nylon spacer.
74 Remove the 6 nos bolts of the oil pump.
75 Remove the oil pump.
• The Oil Pump gears are non-serviceable.
• Oil Pump has to be replaced in case of
replacement required for gears
76 Remove the 12 nos bolts of the oil pan
77 Remove the oil pan.
78 Remove the two bolts of the connecting
rod cap & remove the connecting rod cap.
79 Remove the two allen bolts of crank
balance weight.
80 Remove the crank balance weight.(2 nos)
81 Remove the cam follower bracket & cam
follower by removing Allen bolts. (8mm)
82 Remove the relief valve assembly by
loosening the nuts.
Crank Gear
Puller
Nylon Spacer
Oil Pump
Connecting
Rod
Engine

Mahindra YUVRAJ 215 Specifications

General

Engine Power	15 HP
Transmission	Sliding mesh
Number of Gears	6 Forward + 3 Reverse
Brakes	Oil immersed brakes
PTO Power	12 HP
Hydraulic Lifting Capacity	500 kg
Number of Cylinders	1
Rated Engine Speed	2300 RPM
Wheel Base	1490 mm
Weight	780 kg
Engine Type	Single Cylinder, Water Cooled
Fuel Tank Capacity	19 Litres
Steering	Mechanical
