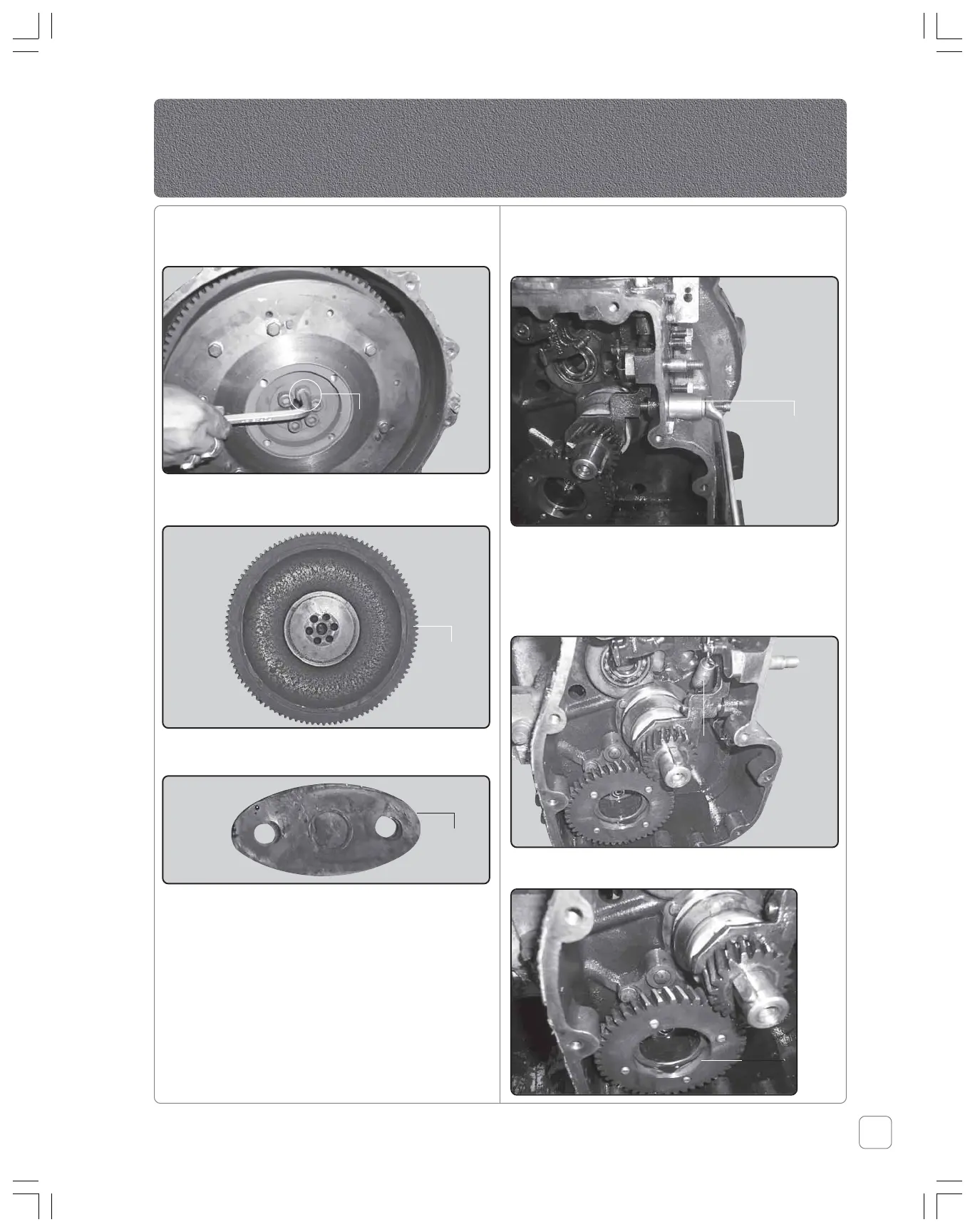

64 Remove the six nos Allen bolts (10mm) of
the flywheel assembly.
64 Remove the flywheel.
65 Remove the pressure distribution plate.
Dismantling procedure of the governor
control shaft
66 Remove the inside circlip of the governor
control shaft with the help of the circlip
plier.
67 Remove the governor control spindle by
placing the puller (MST-H1-EN- )on the
Crankcase. Screw the bolt such that the
threaded portion fits into the spindle.
Tighten the lock nut such that the spindle
is pulled out along with the bolt.
68 Remove the pin of the hand accelerator
lever.
69 Remove the spring connecting the
governor control lever with hand
accelerator lever.
70 Remove the oil pump gear by tapping it
with the mallet.
Flywheel
Mounting
Allen Bolt
Flywheel
Mounting
Allen Bolt
Pressure
Distribution
Plate
Governor
Spindle
Remover
Special Tool
Governor
Spring
Governor
Spring
Engine

Mahindra YUVRAJ 215 Specifications

General

Engine Power	15 HP
Transmission	Sliding mesh
Number of Gears	6 Forward + 3 Reverse
Brakes	Oil immersed brakes
PTO Power	12 HP
Hydraulic Lifting Capacity	500 kg
Number of Cylinders	1
Rated Engine Speed	2300 RPM
Wheel Base	1490 mm
Weight	780 kg
Engine Type	Single Cylinder, Water Cooled
Fuel Tank Capacity	19 Litres
Steering	Mechanical
