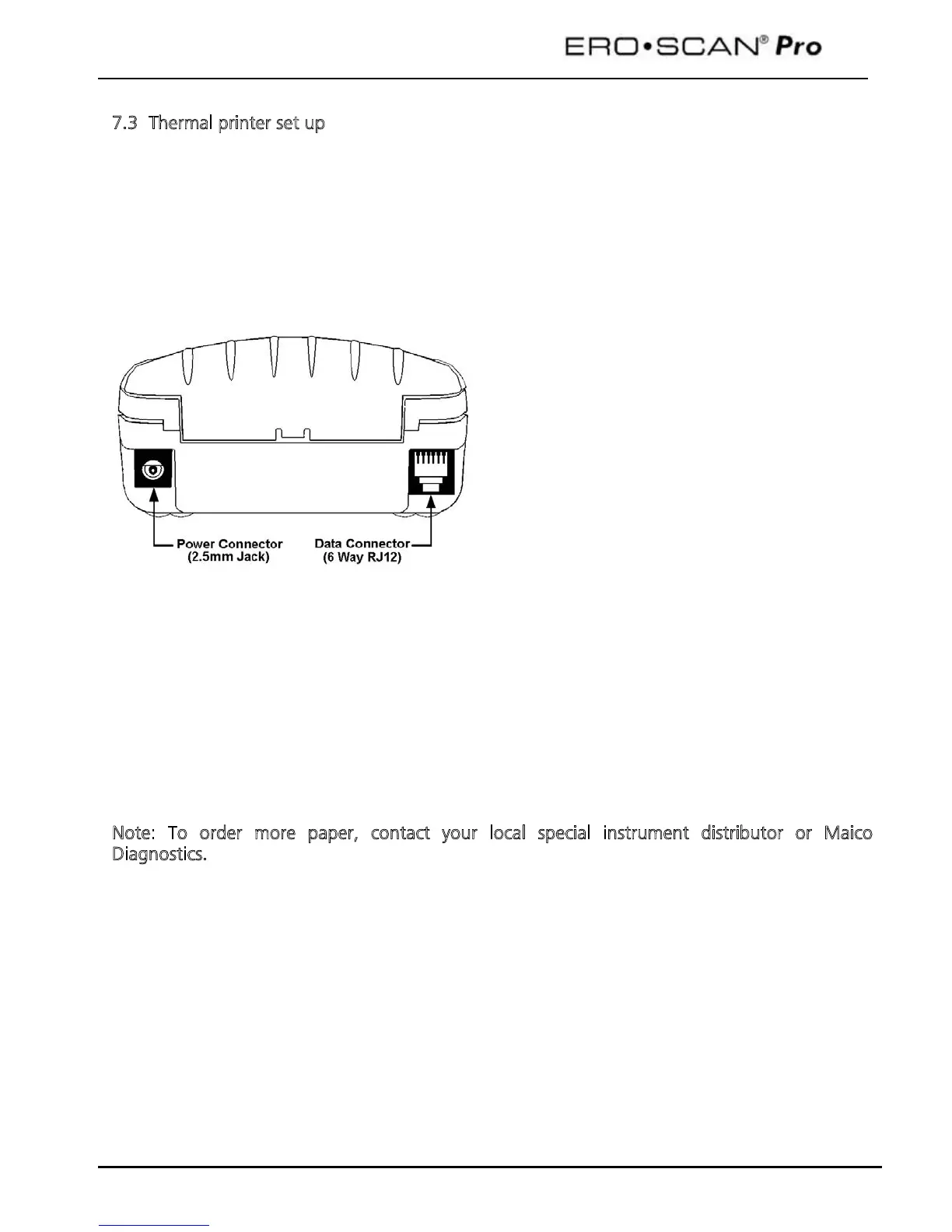

7.3 Thermal printer set up
Use the included data cable to connect the cradle to the printer. First, insert the appropriate
end of the data cable into the port located on the underside of the cradle. Connect the cradle
and printer by inserting the appropriate end of the data cable into the data port on the back of
the printer. Next, connect the 2.5mm jack on the power supply to the power connector
located on the back of the printer. Finally, connect the appropriate ends of the power cord
into the power adapter and an outlet.
The printer is permanently powered up and ready to print once the power supply is connected
to the printer and an outlet. The light on the face of the printer will illuminate solid green
when the printer is powered up and ready to print. A flashing green light indicates the printer
is not ready (paper low, no paper loaded, lid open, etc…). No light indicates the printer is off.
Paper:
Paper rolls must be 57.5 (±0.5) mm wide, 55 mm maximum diameter, and have thermally
sensitive coating on the outside. The printer will accept rolls which are coreless or wound on a
core.
N
ote: To order more paper, contact your local special instrument distributor or Maico
Diagnostics.
Procedure for loading paper:
Slide the lid release button forward until the lid springs open.
Unwind a small amount of paper from the roll and insert paper roll into the printer with the
paper coming up from under the roll.
Close the lid.
