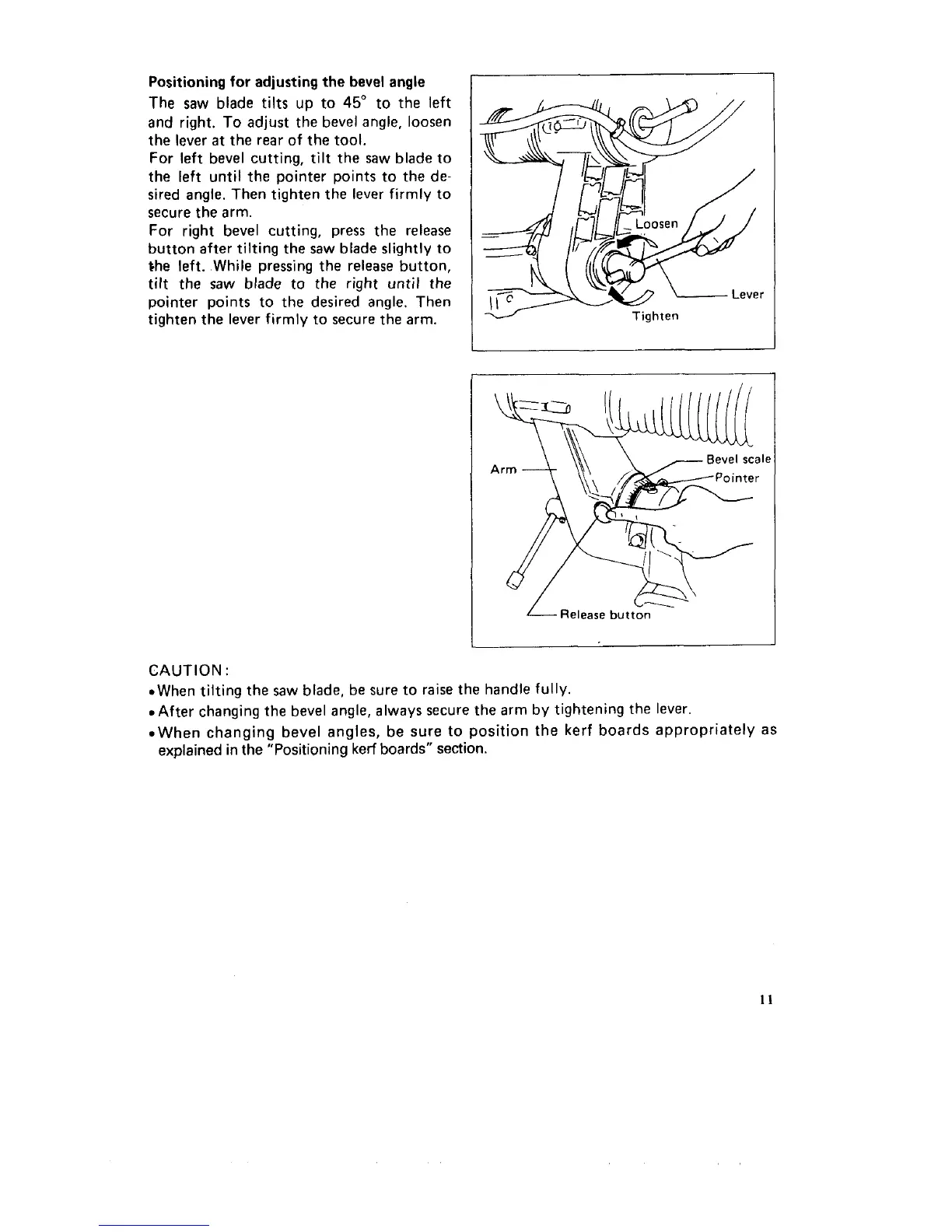

Positioning
for
adjusting the bevel angle
The saw blade
tilts
up to
45"
to the left
and right.
To
adjust the bevel angle, loosen
the lever
at
the rear
of
the tool.
For left bevel cutting, tilt the saw blade to
the left until the pointer points to the de-
sired angle. Then tighten the lever firmly to
secure the arm.
For right bevel cutting, press the release
button after tilting the saw blade slightly to
the left. While pressing the release button,
tilt
the saw blade to
the
right until the
pointer points to the desired angle. Then
tighten the lever firmly to secure the arm.
i-f-
Tighten
L
CAUTION
:
*When tilting the saw blade, be sure to raise the handle fully.
*After changing the bevel angle, always secure the arm by tightening the lever.
*When changing bevel angles, be sure to position the kerf boards appropriately as
explained in the "Positioning kerf boards" section.
