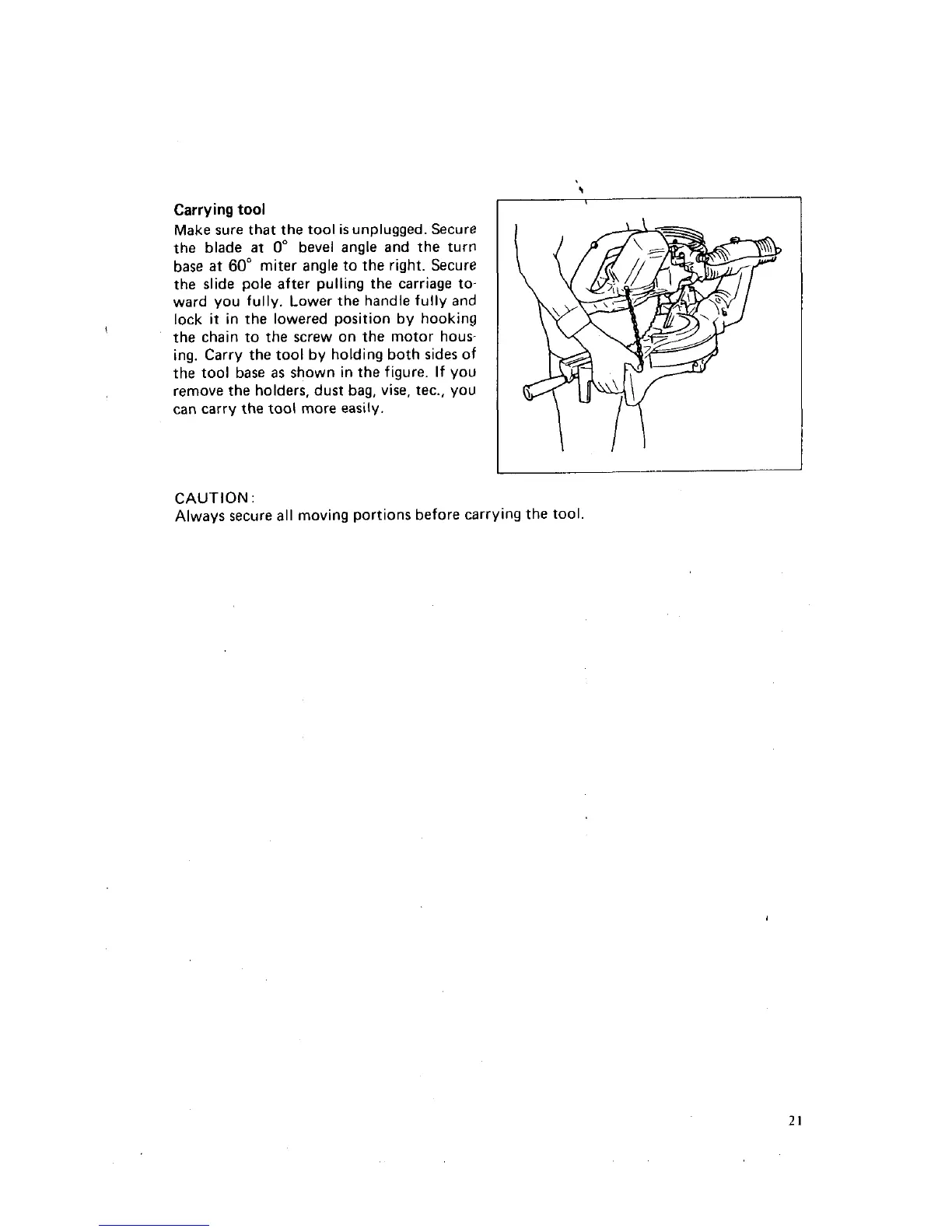

Carrying
tool
Make sure that the tool isunplugged. Secure
the blade
at
0"
bevel angle and the turn
base
at
60"
miter angle to the right. Secure
the slide pole after pulling the carriage to-
ward
you
fully. Lower the handle fully and
lock
it
in the lowered position by hooking
the chain to the screw on the motor hous,
ing. Carry the tool by holding both sides
of
the tool base
as
shown in the figure. If
you
remove the holders, dust bag, vise, tec.,
you
can carry
the
tool
more
easily.
CAUTION
:
Always secure all moving portions before carrying the tool
21
