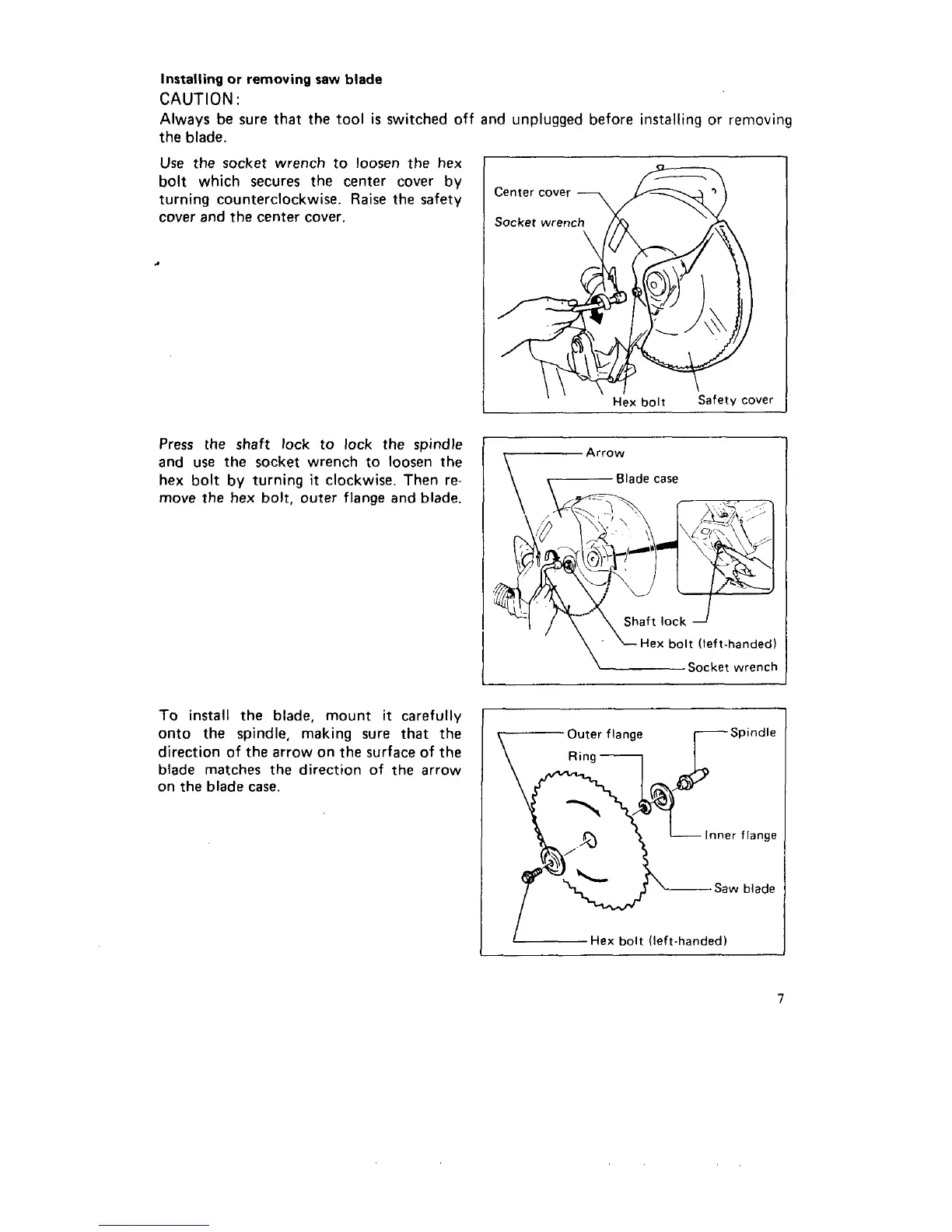

Installing
or
removing
saw
blade
CAUTION
:
Always be sure that the tool
is
switched off and unplugged before installing
or
removing
the blade.
Use the socket wrench to loosen the hex
bolt which secures the center cover
by
turning counterclockwise.
Raise
the safety
cover and the center cover.
Press
the shaft lock to lock the spindle
and use the socket wrench to loosen the
hex bolt by turning it clockwise. Then re-
move the hex bolt, outer flange and blade.
To
install the blade, mount
it
carefully
onto the spindle, making sure that the
direction of the arrow on the surface of the
blade matches the direction of the arrow
on the blade
case.
Socket wrenc
Hex bolt (left-handed)
Socket wrench
\-Outer
flange
rSpindle
Ring
Inner flange
Saw blade
I--
Hex bolt (left-handed)
7
