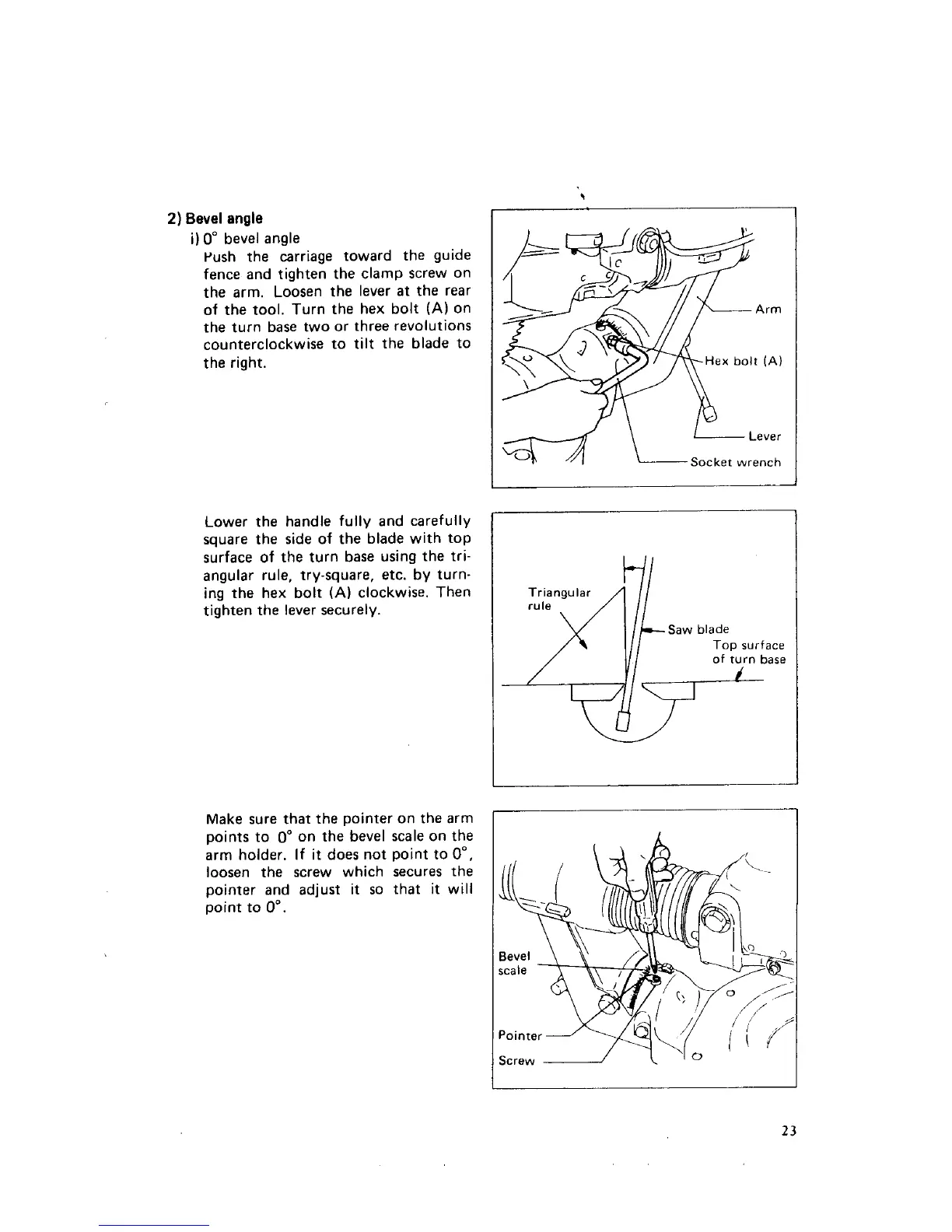

2)
Bevel
angle
i)
0"
bevel angle
Push the carriage toward the guide
fence and tighten the clamp screw on
the arm. Loosen
the
lever
at
the rear
of
the
tool. Turn the hex bolt
(A)
on
the turn base two or three revolutions
counterclockwise to
tilt
the blade to
the right.
Lower the handle fully and carefully
square the side of the blade with top
surface of the turn base using the tri-
angular rule, try-square, etc.
by
turn-
ing the hex bolt
(A)
clockwise. Then
tighten the lever securely.
Make sure
that
the
pointer on the arm
points to
0"
on the bevel scale on the
arm holder.
If
it
does not point to
O",
loosen the screw which secures the
pointer and adjust
it
so
that
it
will
point
to
0".
23
