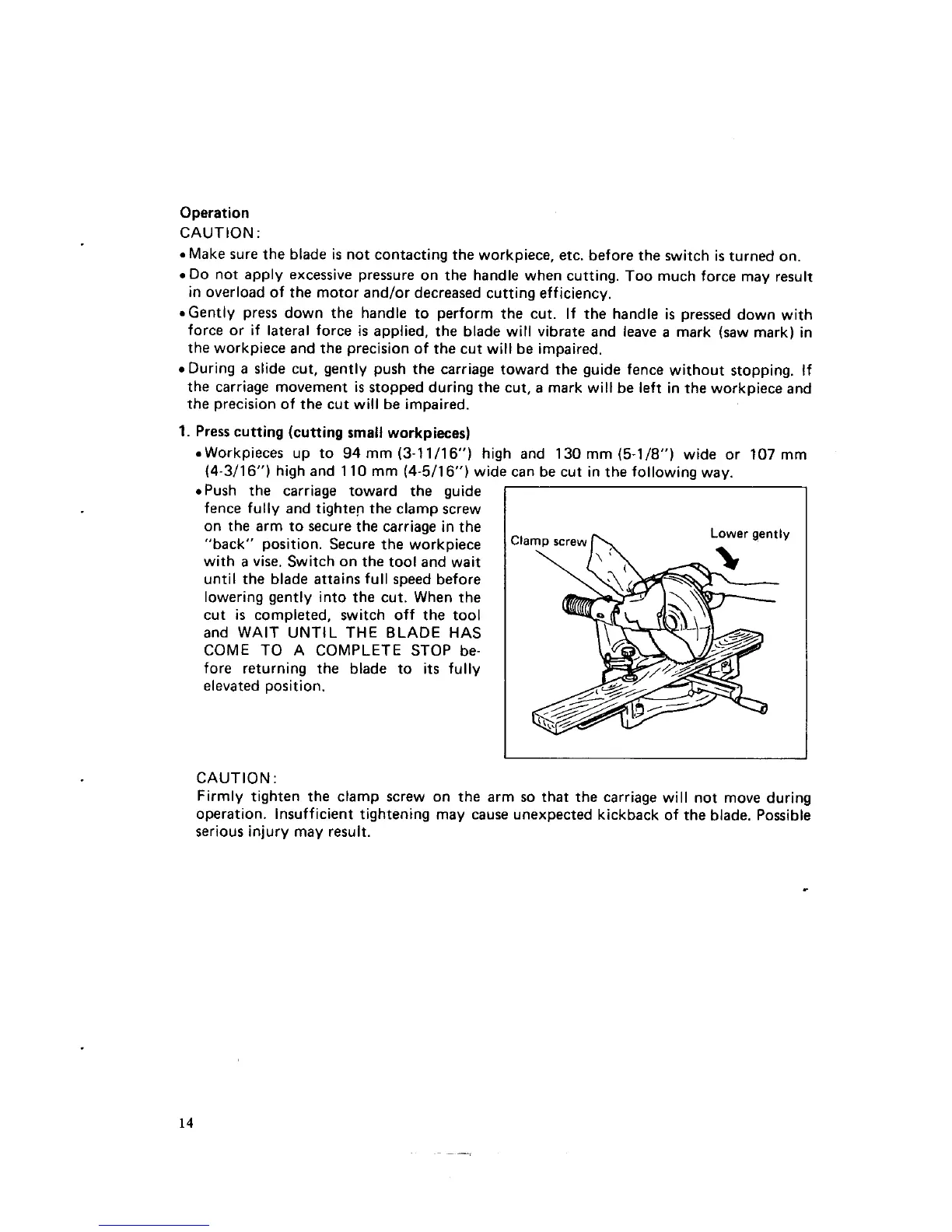

Operation
CAUTION
:
.Make sure the blade
is
not contacting the workpiece,
etc.
before the switch
is
turned on.
Do
not apply excessive pressure on the handle when cutting. Too much force may result
in overload of the motor and/or decreased cutting efficiency.
*Gently press down the handle to perform the cut. If the handle
is
pressed down with
force or if lateral force
is
applied, the blade will vibrate and
leave
a
mark (saw mark) in
the workpiece and the precision of the cut will be impaired.
During
a
slide cut, gently push the carriage toward the guide fence without stopping. If
the carriage movement
is
stopped during the cut,
a
mark will be left in the workpiece and
the precision of the cut will be impaired.
1.
Press cutting (cutting
small
workpieces)
Workpieces up to 94 mm (3-1 1/16")
high and 130 mm
(5-1/8")
wide or
107
mm
(4-3/16") high and 110 mm (4-5/16") wide can be cut in the following way.
Push the carriage toward the guide
fence fully and tighten the clamp screw
on the arm to secure the carriage in the
"back" position. Secure the workpiece
with
a
vise.
Switch on the tool and wait
until the blade attains full speed before
lowering gently into the cut. When the
cut
is
completed, switch off the tool
and WAIT UNTIL THE BLADE HAS
COME
TO
A COMPLETE STOP be-
fore returning the blade to
its
fully
e
I
eva
ted posit ion.
Lower
gently
CAUTION:
Firmly tighten the clamp screw on the arm
so
that the carriage will not move during
operation. Insufficient tightening may cause unexpected kickback of the blade. Possible
serious injury may result.
